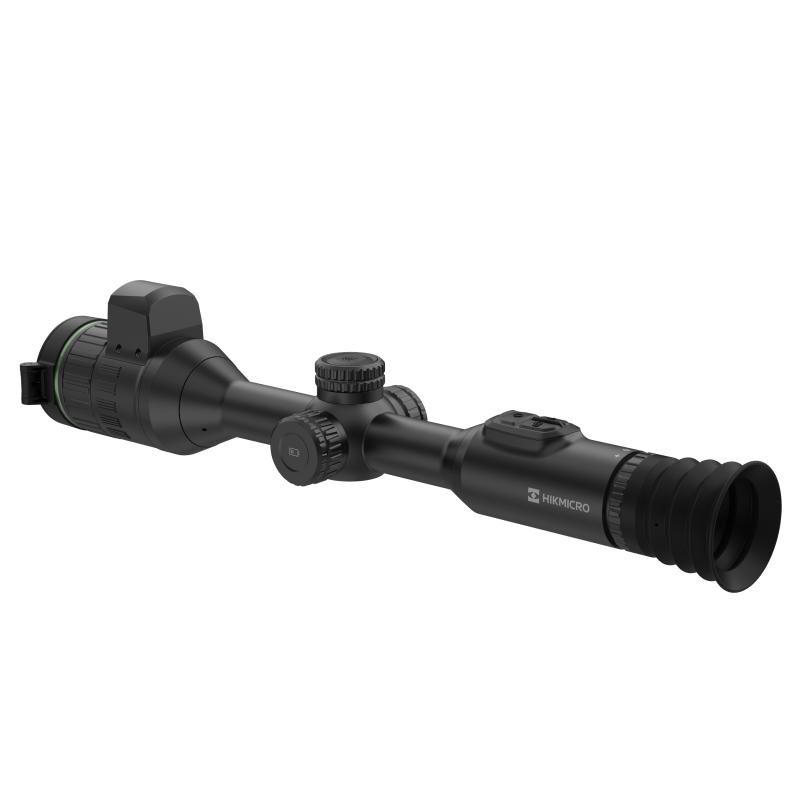

HIKMICRO ALPEX 4K
Views: 1382
$0.00

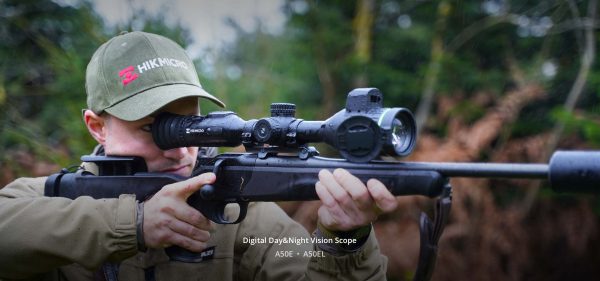

4K UHD Clarity. Advanced Accuracy
High-Tech 4K+ Detector Brings a Visual Revolution
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | A50EL, A50E |
|---|
Description
4K+ UHD for Vivid and Informative Images
The HIKMICRO ALPEX 4K, equipped with a 3840 x 2160 ultra-high-definition CMOS detector, gives you stunning and unprecedented image details 24 hours a day. With 3.5x basic magnification and 15.3m field of view at 100m, it shows outstanding target detection ability and identification capacity across the whole magnification range.
Comfortable Visual Experience Matters
HIKMICRO ALPEX 4K’s 1920×1080 sub-round 0.49’’ large OLED display unlocks new and eye-pleasing observing perspectives, delivering an immersive hunting experience.

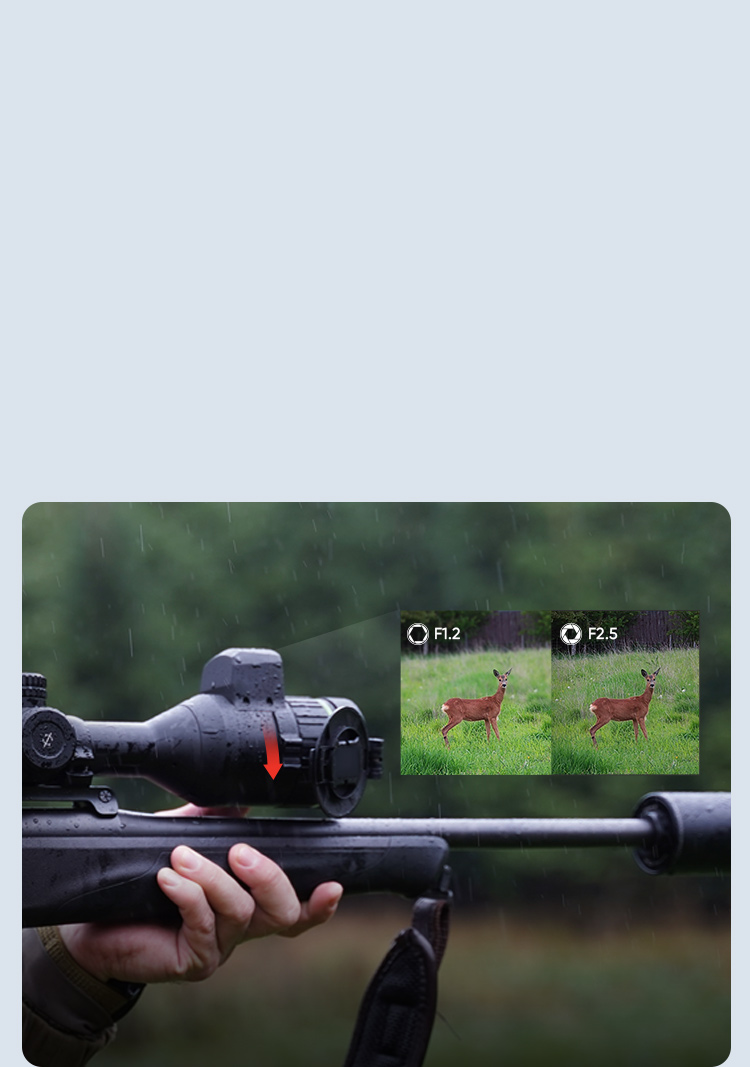

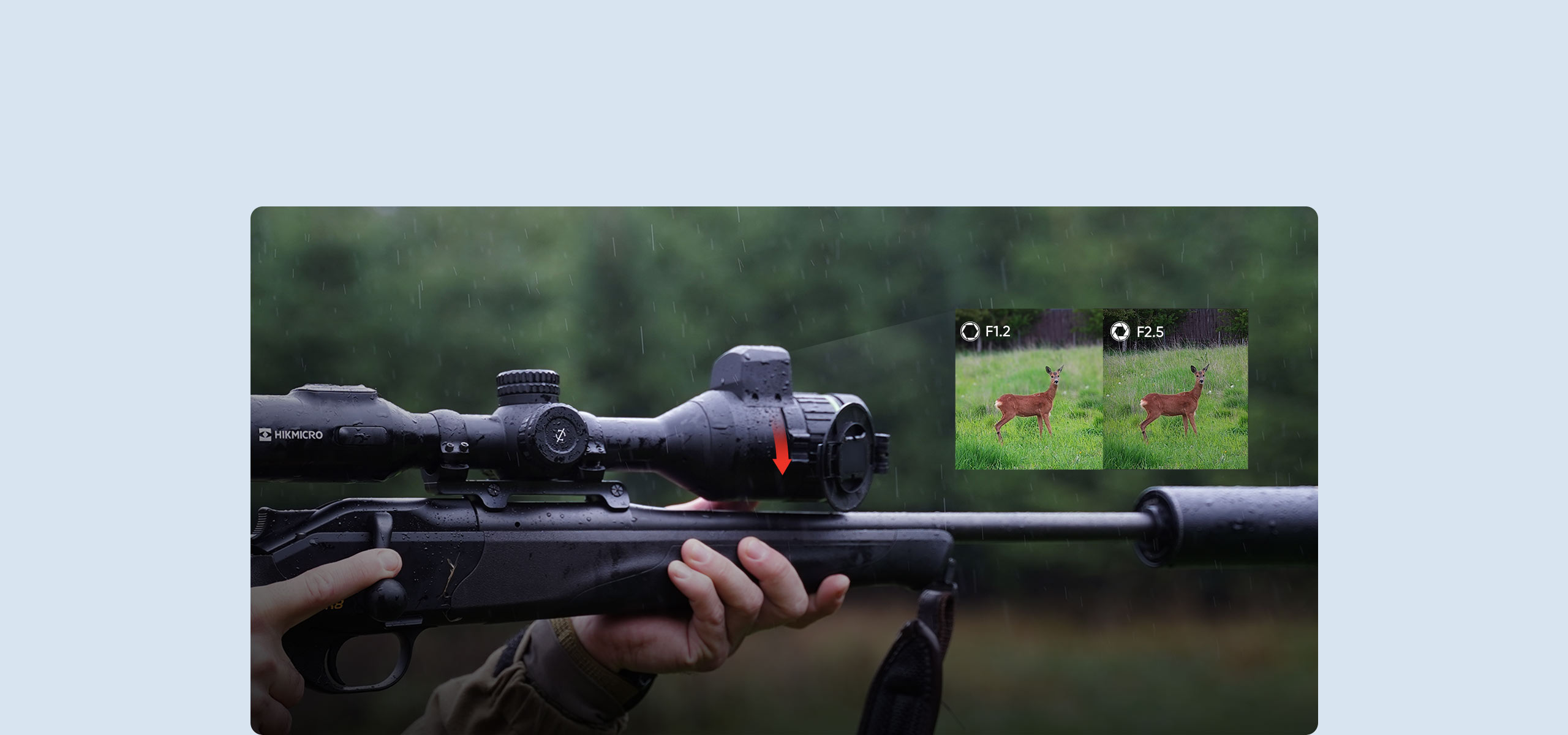

F1.2-F2.5 Aperture Enhances Identification Capability
The F1.2-2.5 adjustable aperture of HIKMICRO ALPEX 4K improves target recognition in all light conditions. The introduction of the F2.5 large aperture can effectively avoid overexposure and enhance the depth of field, bringing a visual revolution even during daytime hunting.
Precise Shooting Has Never Been This Easy
Accurate Distance Measurement Aims for an Efficient Game (A50EL Only)
Accurately ranging quarry helps to ensure an ethical shot. The integrated laser rangefinder in the HIKMICRO ALPEX 4K digital day & night vision scope allows the user to range-find up to 1,000m with an accuracy of ±1 meter.

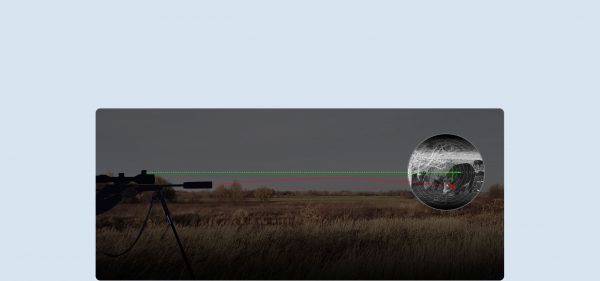

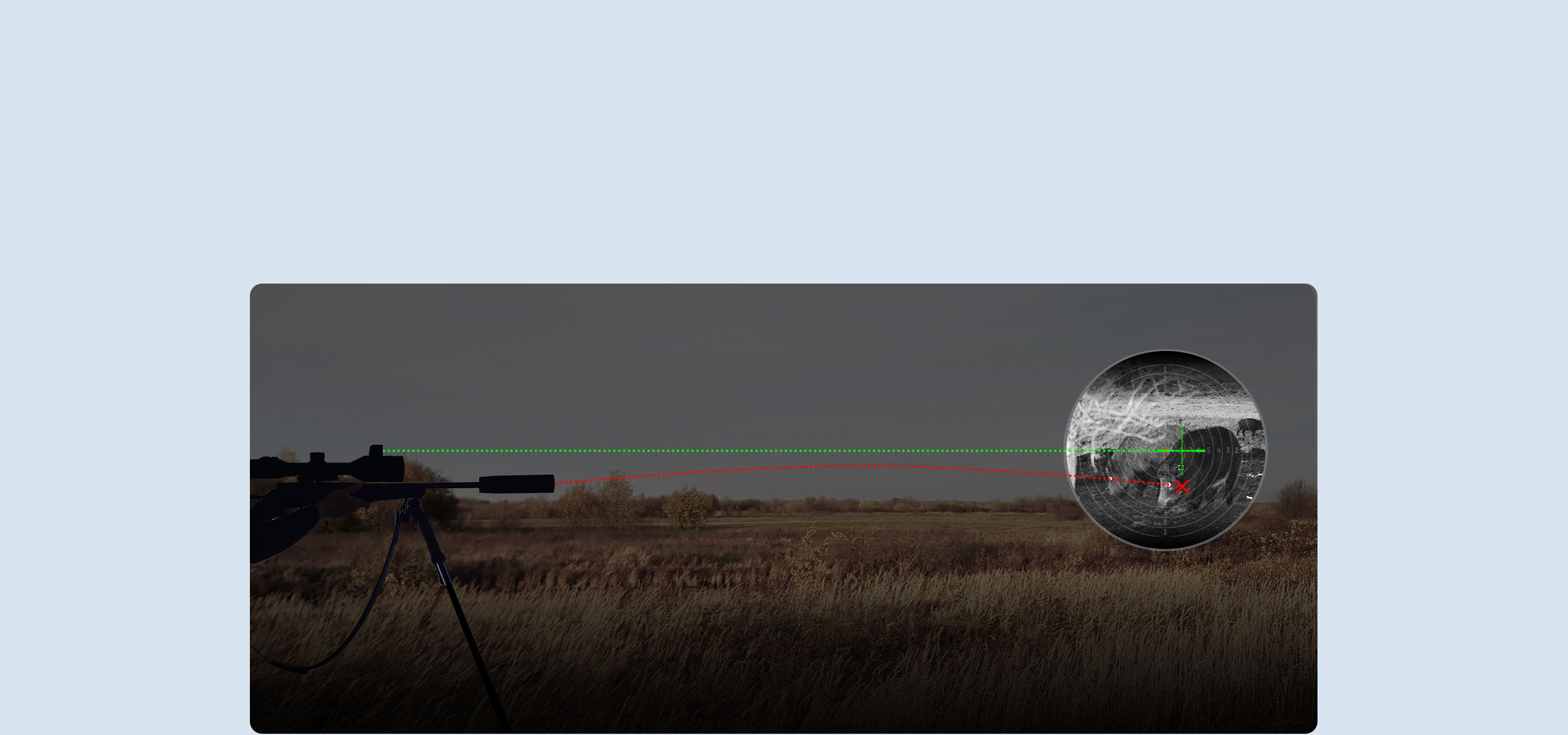

Internal Ballistic Calculation for Long-Range Hunting (A50EL Only)
The ALPEX 4K is HIKMICRO’s first digital & night vision scope with ballistic calculation, ensuring accurate shooting at any distance. Simply enter the required data for your ammunition, scope, and environment to turn your ALPEX 4K into a highly accurate long-range tool. The internal ballistics algorithm calculates the suggested aiming point based on the exact distance measured by the built-in laser ranging finder to ensure precise long-range shooting.

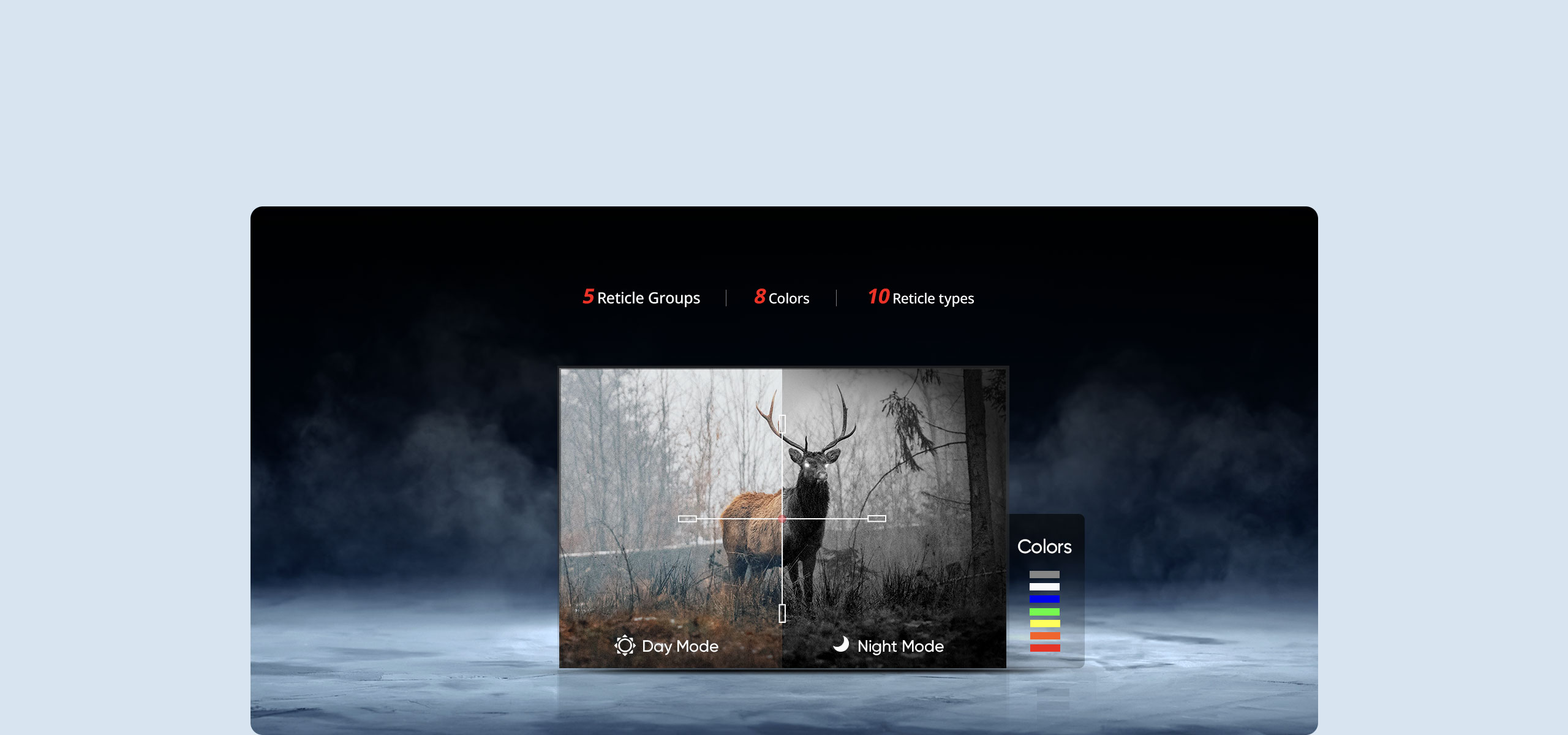

Multiple Reticle Profiles
There are 5 reticle groups with 8 colors and 10 reticle types to choose from in the HIKMICRO ALPEX 4K. A total of 5 reticle profiles can be configured and saved for greater convenience.
Purpose-Built Features for Ease-of-Use

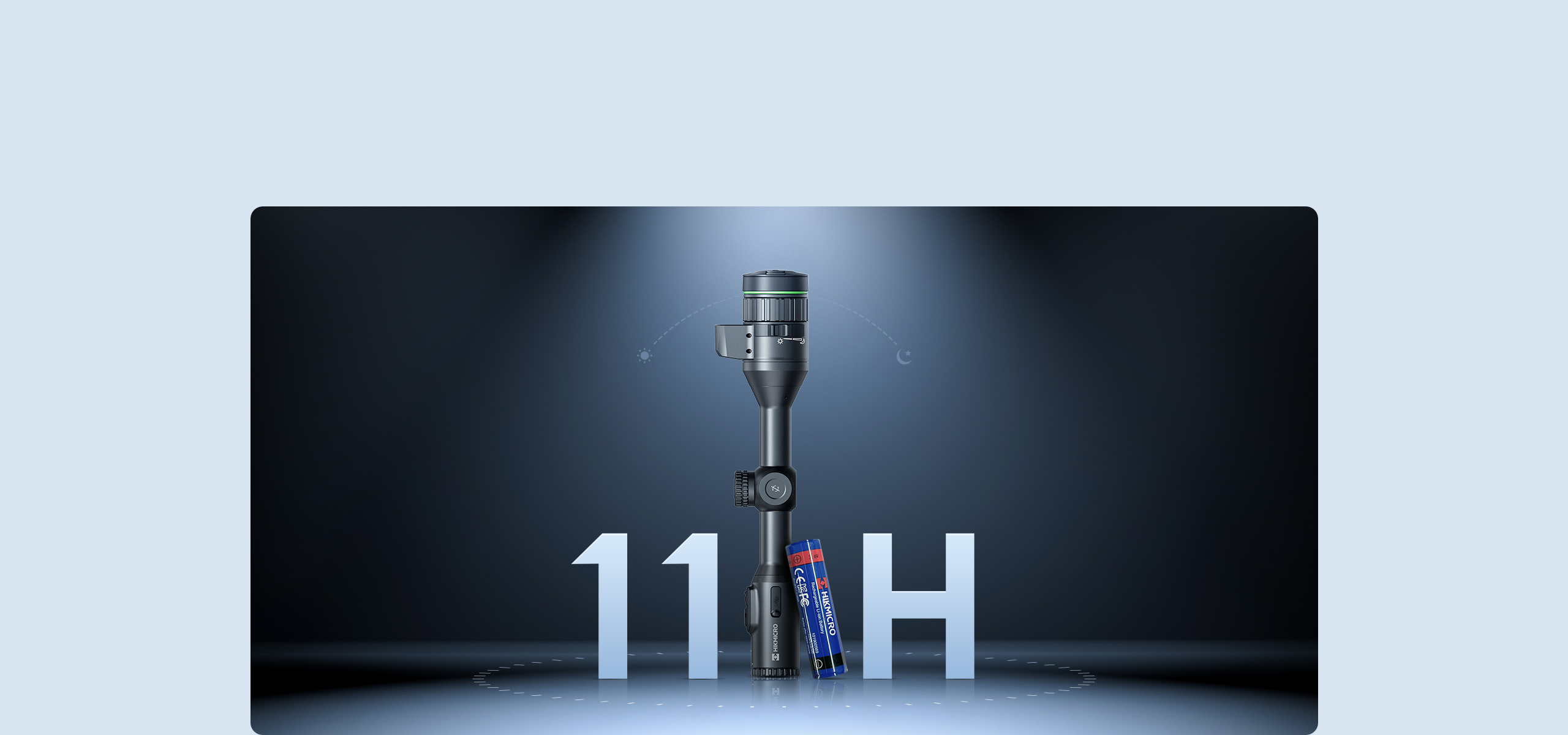

Long-life battery, Hunt Non-Stop
HIKMICRO ensures users never have to worry about running out of power. The HIKMICRO ALPEX 4K has an upgraded power supply system. With an external replaceable and rechargeable battery, users can enjoy their hunt without fear of running out of battery.

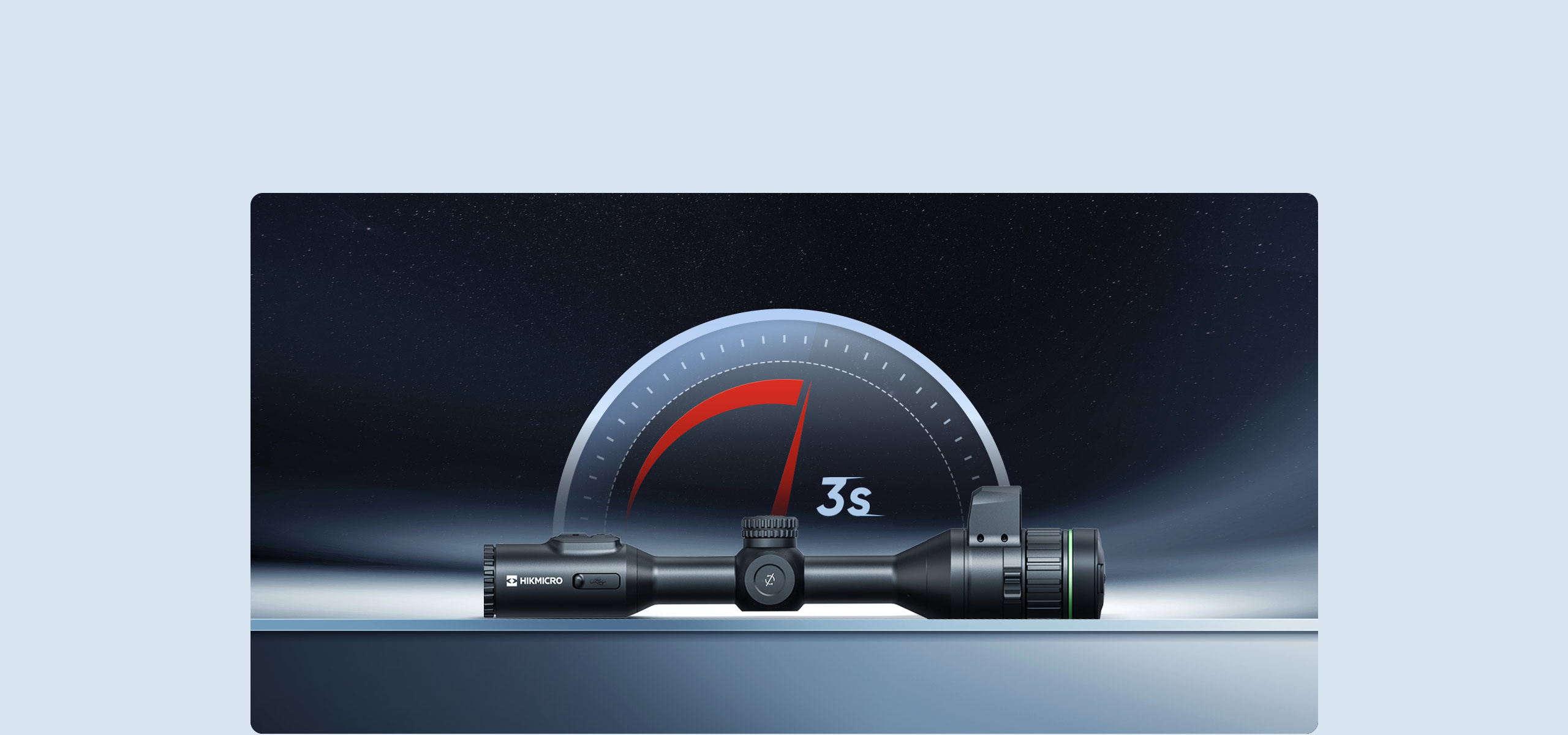

Fast Boot-On to Capture the Moments
Fast boot within 3s makes HIKMICRO ALPEX 4K always ready for use.

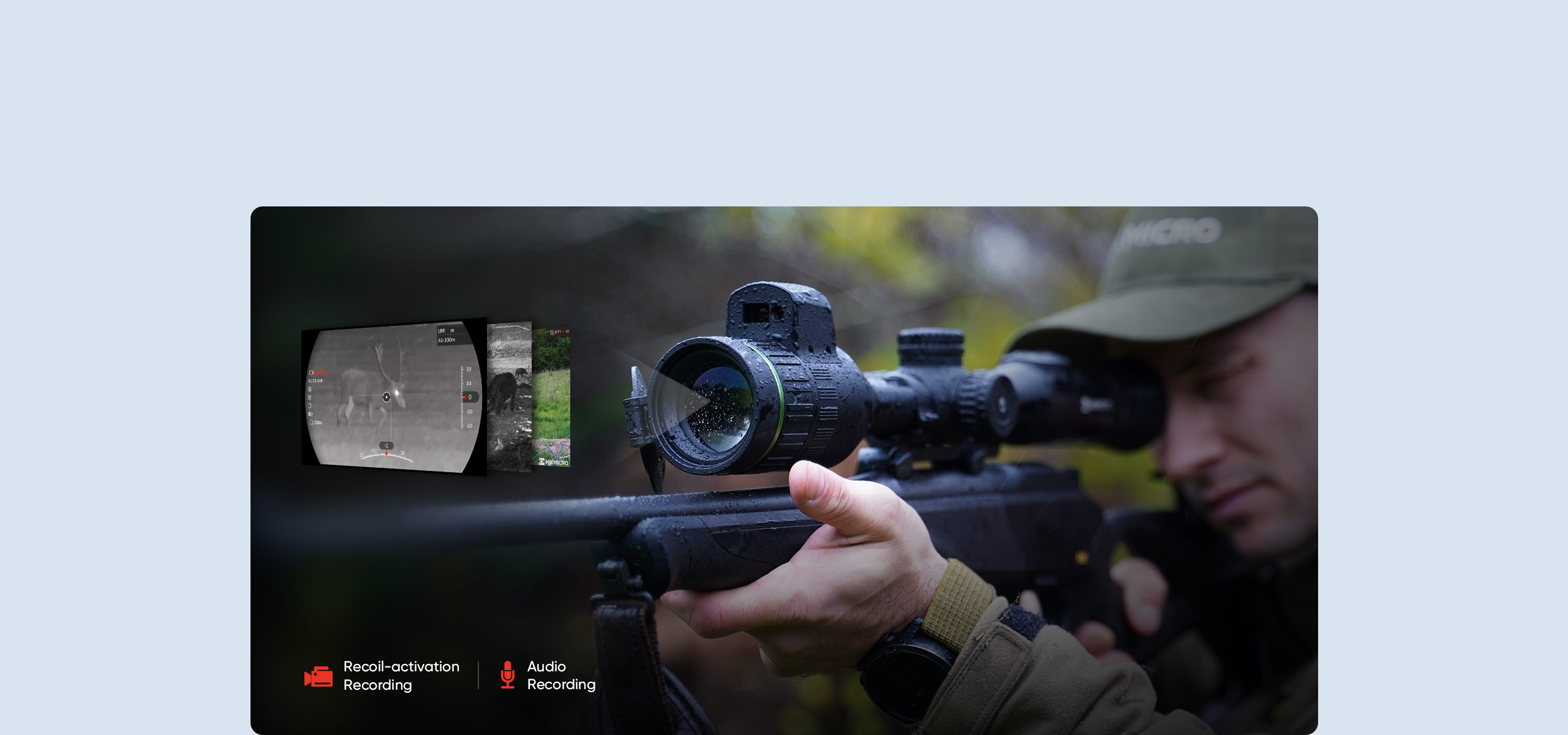

Highlights capturing, saved in local album
The recoil-activation functions can record a video before you shoot and after you shoot, to better help you clarify whether you get your game. The videos are saved in the local album for quick and undisturbed checking.

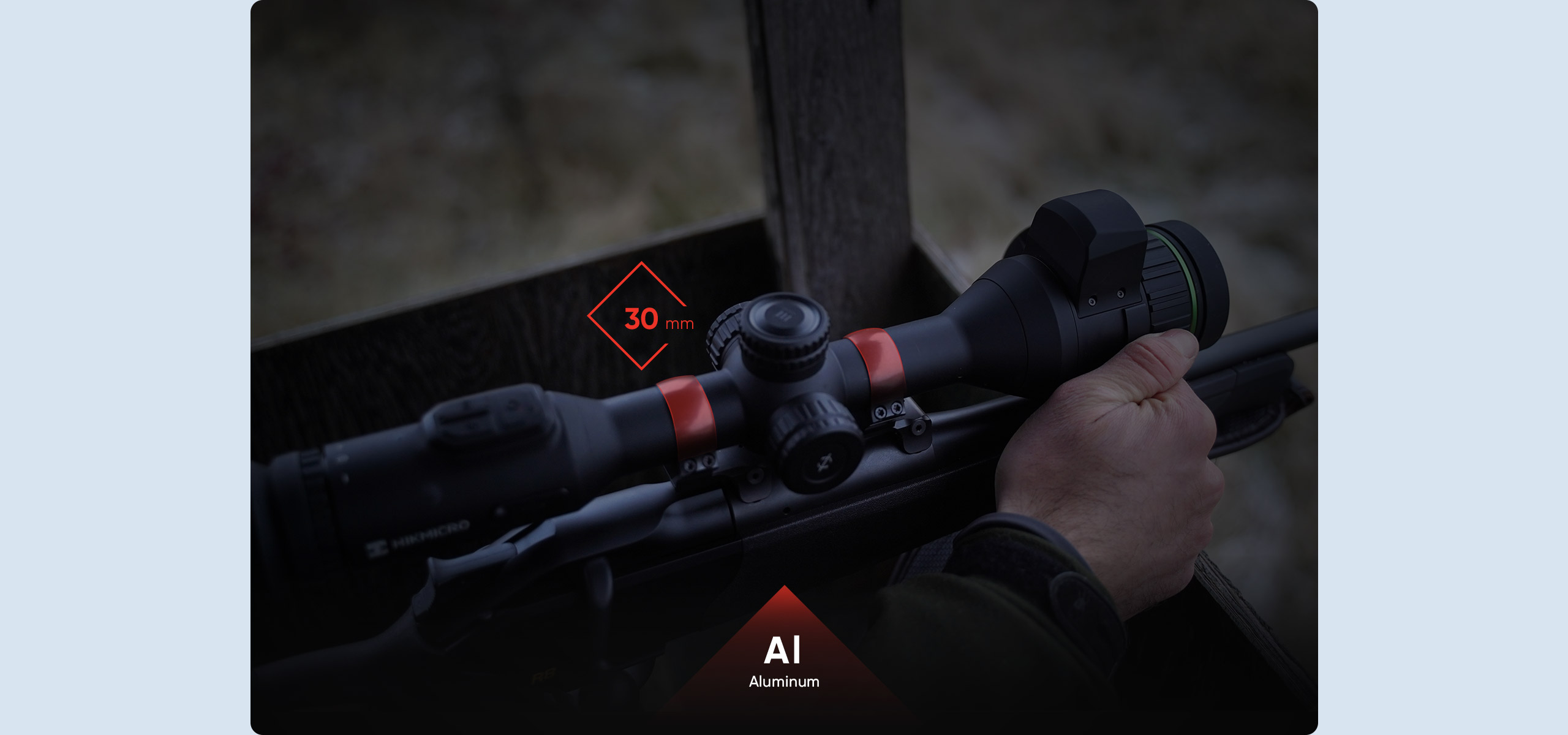

Classic Style with Premium Reliability
Traditional look & feel, classical-style design fits with 30 mm standard mount rings.
Robust aluminum alloy housing design for better durability, allowing HIKMICRO ALPEX 4K to stand up to harsh environmental conditions.
Robust aluminum alloy housing design for better durability, allowing HIKMICRO ALPEX 4K to stand up to harsh environmental conditions.
Specification

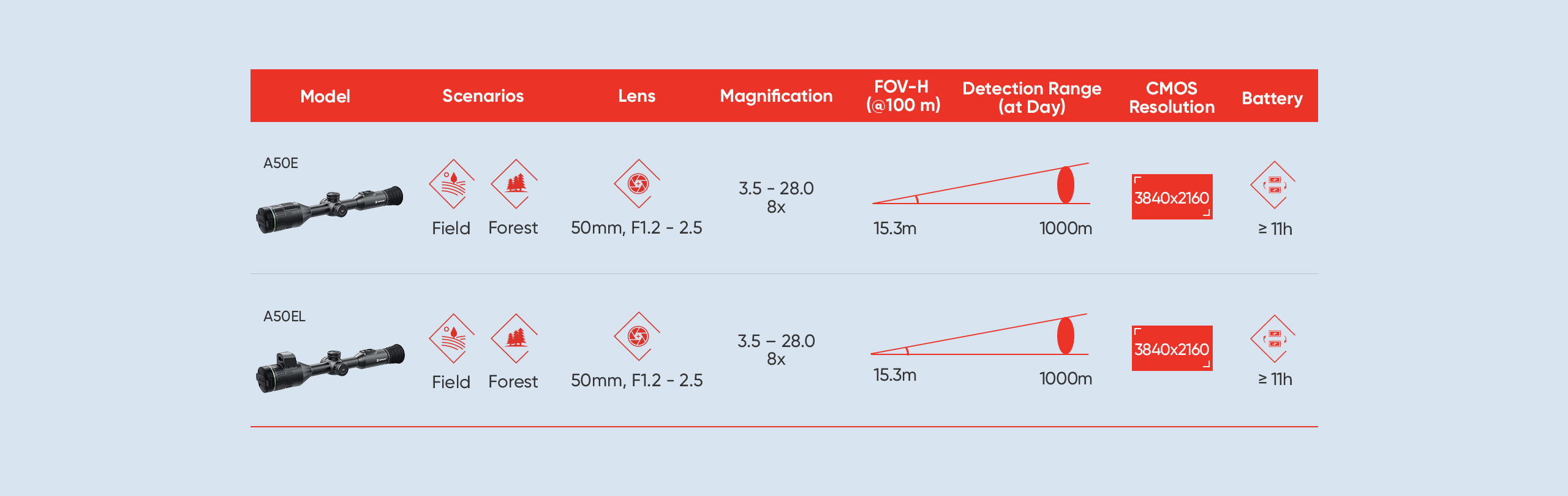

| Product Model | A50EL | A50E |
|---|---|---|
| Main | ||
| Max. Resolution | 3840 × 2160 | 3840 × 2160 |
| Frame Rate | 50 Hz | 50 Hz |
| Lens (Focal Length) | 50 mm, F1.2-2.5 Adjustable Aperture | 50 mm, F1.2-2.5 Adjustable Aperture |
| Min. Focusing Distance | 10 m | 10 m |
| Field of View | 8.8° × 5.0°/15.3m × 8.6m @100m | 8.8° × 5.0°/15.3m × 8.6m @100m |
| Magnification | 3.5×-28.0x (8x) | 3.5×-28.0x (8x) |
| Detection Range | Day: 1000m | Day: 1000m |
| Image Display | ||
| Display | 1920 × 1080, 0.49 inch, OLED | 1920 × 1080, 0.49 inch, OLED |
| Image Mode | Day, Night | Day, Night |
| Exit Pupil | 6 mm | 6 mm |
| Eye Relief | 55 mm | 55 mm |
| Diopter (Range) | -5 D to 5 D | -5 D to 5 D |
| General | ||
| Protection Level | IP67 | IP67 |
| Weight | 1176 g without External Battery | 1080 g without External Battery |
| Dimension | 439.8 mm × 89.2 mm × 84.0 mm | 439.8 mm × 71.4 mm × 84.0 mm |
| Mounting | Standard 30mm | Standard 30mm |
| Working Temperature | -30°C to 55°C (-22°F to 131°F) | -30°C to 55°C (-22°F to 131°F) |
| System | ||
| Record Video | On-board video recording | On-board video recording |
| Capture Snapshot | Yes | Yes |
| Hotspot | Yes | Yes |
| Standby Mode | Yes | Yes |
| Storage | Built-in EMMC (64 GB) | Built-in EMMC (64 GB) |
| Distance Measurement | Yes | NA |
| Audio Recording | Yes | NA |
| Recoil-activation Recording | Yes | Yes |
| Freeze Zeroing | Yes | Yes |
| Record Video Resolution | 1920 × 1080 | 1920 × 1080 |
| Max. Recoil | 1000g/0.4ms | 1000g/0.4ms |
| Power Supply | ||
| Power Supply | Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External) | Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External) |
| Battery Operating Time | 11 hours of Continuous Running (@25°C, Hotspot off) | 11 hours of Continuous Running (@25°C, Hotspot off) |
| Power Supply | 5 V DC/2 A, USB Type-C Interface | 5 V DC/2 A, USB Type-C Interface |
| Laser Rangefinder | ||
| Safety Class for Laser | Class 1 | NA |
| Wavelength | 905 nm | NA |
| Max. Measuring Range | 1000 m | NA |
| Measurement Accuracy | ±1m | NA |
| Min. Measuring Range | 10 m | NA |
Advantages
- Picture-In-Picture mode
- 1000g/0.4ms high shock resistance
- -30°C ~ +55°C operating temperature
- Integrated hotspot module make Sight App as a second display
