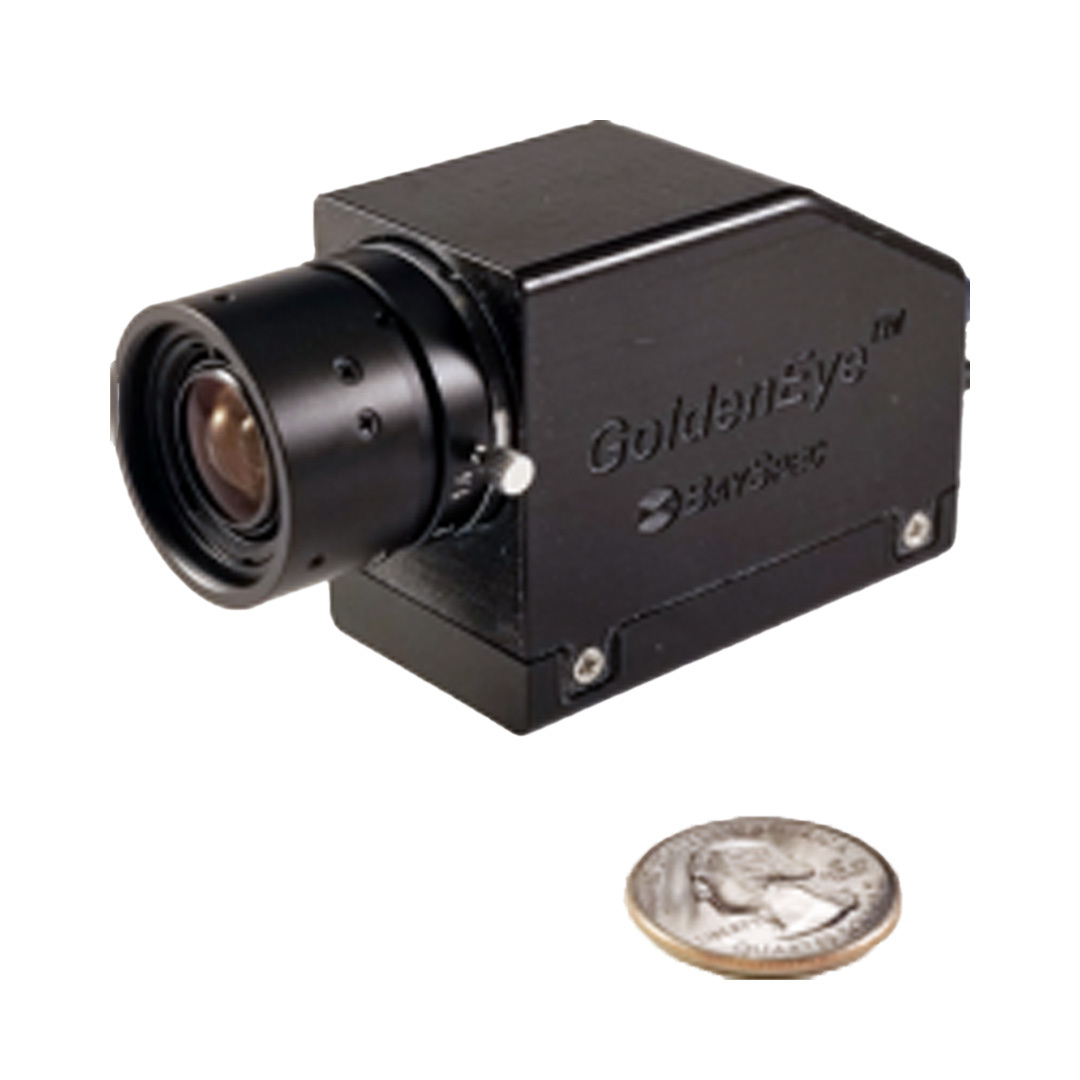

GoldenEye™ Snapshot Hyperspectral Imager 400-1000 nm
Views: 1744
$0.00
BaySpec’s GoldenEye™ is the Ultimate Snapshot Hyperspectral Imager, Captures All in One Shot for wavelengths from visible to near infrared (NIR). Using BaySpec’s FT-PI proprietary technology, this novel imager features high sensitivity and is most suitable for low light level applications, such as fluorescence imaging.
Description
Overview
BaySpec’s GoldenEye™ is the Ultimate Snapshot Hyperspectral Imager, Captures All in One Shot for wavelengths from visible to near infrared (NIR). Using BaySpec’s FT-PI proprietary technology, this novel imager features high sensitivity and is most suitable for low light level applications, such as fluorescence imaging.
Full Details
The GoldenEye™ imager delivers one-shot operation with spectral resolution of 7 – 12 nm FWHM. Ideal applications include machine vision, fluorescence imaging, biomedical, and medical diagnostics.
Specification
| Key Specs | |
| Operation Mode | Snapshot |
| Spectral Range | 400-1000 nm |
| Number of Spectral Bands | 40-52 (approx.) |
| Spatial Pixels | 648 x 488 |
| Frame Rate | 1 Frame/Sec |
| Lens | 50mm (13° FOV) |
| Calibration | Factory Calibrated |
Key Features
Key Features
- Extremely compact and light-weight
- Snapshot operation covers 400-1000 nm
- High sensitivity
- Effortless system integration
