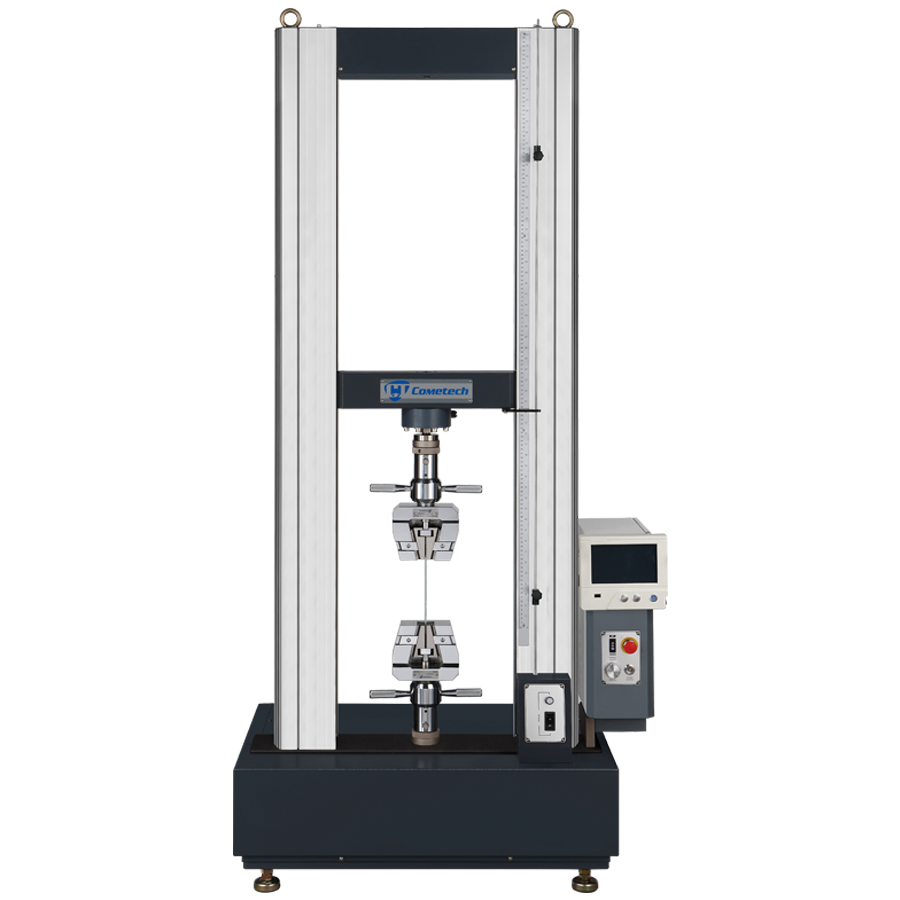

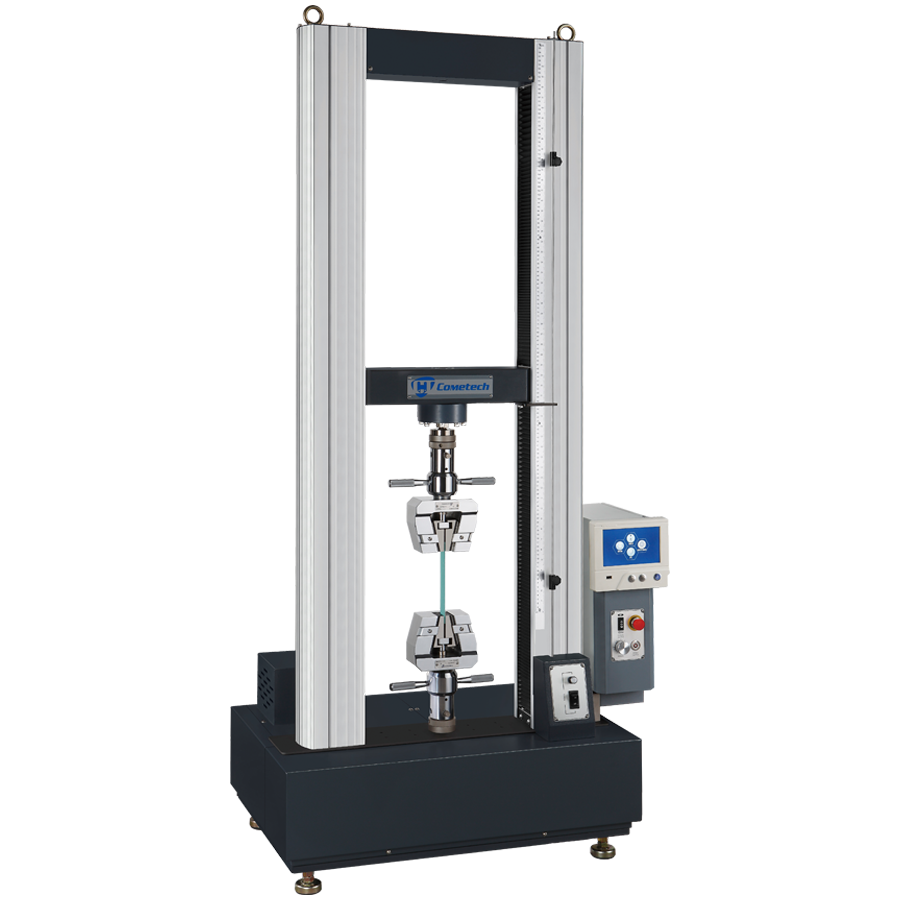

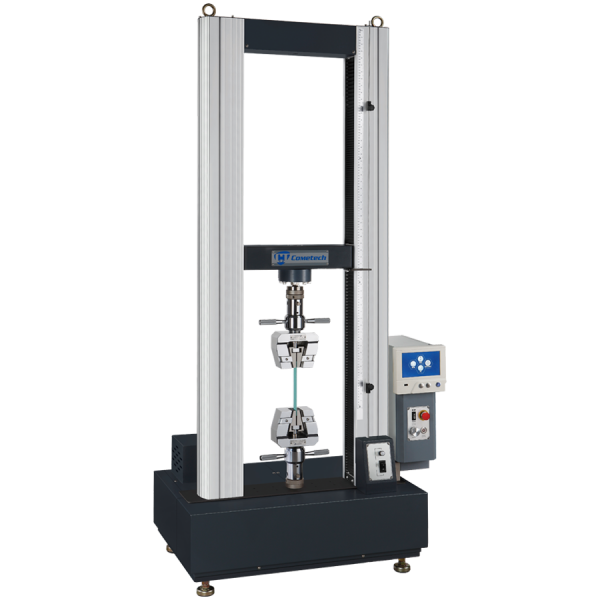

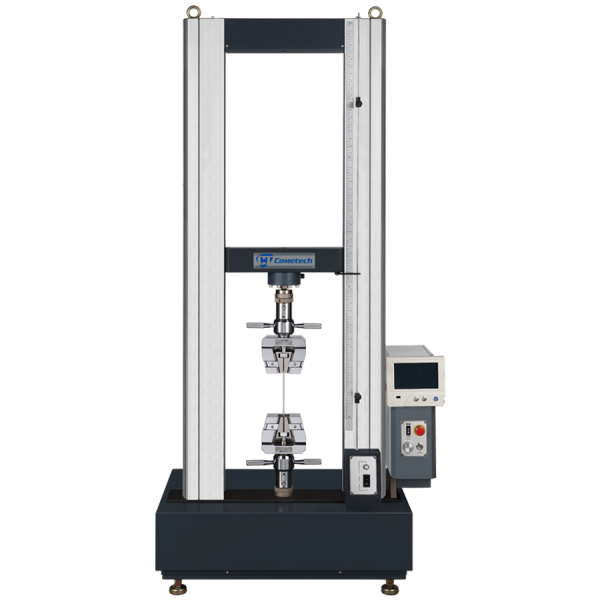

50kN Cometech QC-505 Floor Type UTM
Views: 1310
$0.00
Stay Ahead of Competition and Affordable all in one testing machine
QC-505M2F has large test space and long stroke, the maximum test capacity is 50 kN. Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results.
The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems.
The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems.
Support precision jog wheel can be fine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy.
High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.
Description
Stay Ahead of Competition and Affordable all in one testing machine
QC-505 series has large test space and long stroke, the maximum test capacity is 50 kN. Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results.
The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems.
The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems.
Support precision jog wheel can be fine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy.
High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.
Specification
Max Capacity |
50kN |
Space betweencolumns |
425mm (500mm, 680mm, 800mm for option) |
Units |
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg Length:m, cm, mm, ft, in |
Force Resolution |
31 bits |
Force Precision |
1/100,000 |
Test Stroke(w/o grip) |
1100 mm |
Stroke resolution |
0.0001 mm |
Speed Range |
0.2~600 mm/min |
Speed Accuracy |
Lower 1% |
PC-Port |
RJ45(TCP/IP) |
Data sampling rate |
1200Hz (Max.) |
Real Time Data |
Force Display/ Displacement Display/ Time Display/ Stress Display/ Strain Display ( Selectable) |
Analysis Data |
Over 260 |
Test end |
Automatic detection of breaking, and also automatic return can be select. |
Motor Type |
Servo Motor |
Rigidity |
4.1 kN/mm (Vertical Rigidity) |
Test Methods |
Tensile, Compression, 3p bend, 4p bend L/2, 4p bend L/3, Creap, Spring Test ( Compress), Spring Test ( Tensile), Defined Test, 180˚ peel, Foam Test, KES-FB3、JIS L1096, Chang Rate Test |
Hardware Protection |
✓ Over load protection ✓ Over stroke protection ✓ Over time protection ✓ Up/Down limit ✓ Emergency Stop ✓ Anti-collision function( At 1000mm/min speed, load cell capacity that is over 50kg will not be overload, but load cell brand should be appointed by Cometech) |
Feature |
✓ Force, displacement, time, stress and starin disply in real time. ✓ The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required. ✓ The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required. ✓ User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable. ✓ Automatic return after the test. ✓ Machine protection by over force, over time, over displacement, etc. ✓ The jog precisely controls displacement. 8. Optional display is available for stand-alone mode. ✓ In user defined mode, cyclic test and test in a long duration can be achieved. |
Power Supply |
Single phase 200V -240 V, 5A |
Dimension |
105 X 60 X 195cm |
Weight |
360 kg |
Conforms Standards
- ISO 7500-1
- ASTM E4
- ASTM D-76
- DIN 5122
- JIS B7721
- JIS B7733
- BS EN 1002-2
- BS 1610
- GB/T 228
Application
- ASTM D790, ISO 178 Bending test
- ASTM D638 Plastic Tensile Test
- ASTM D412 Rubber Tensile Test
Industry
- Plastic
- Textile
- Metal
- Architecture
Downloads Datasheet
QC-505M1F (50kN) Computerized Tensile (Compression) Testing Machine – Intermediate
QC-505M2F (50kN) Computerized Tensile (Compression) Testing Machine -Advanced
