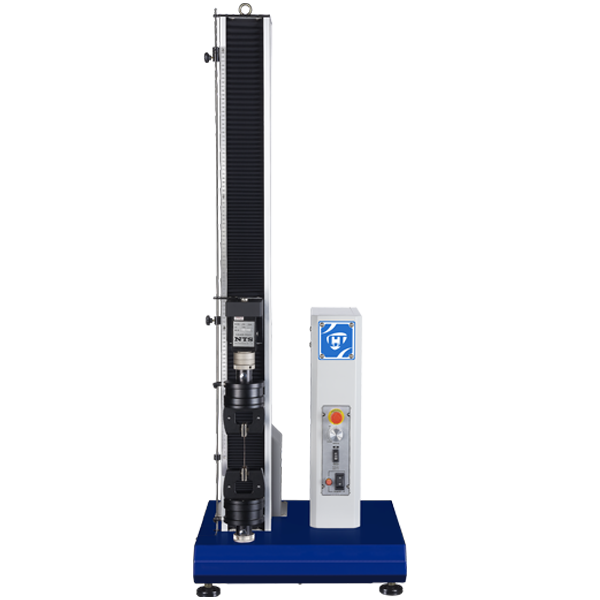

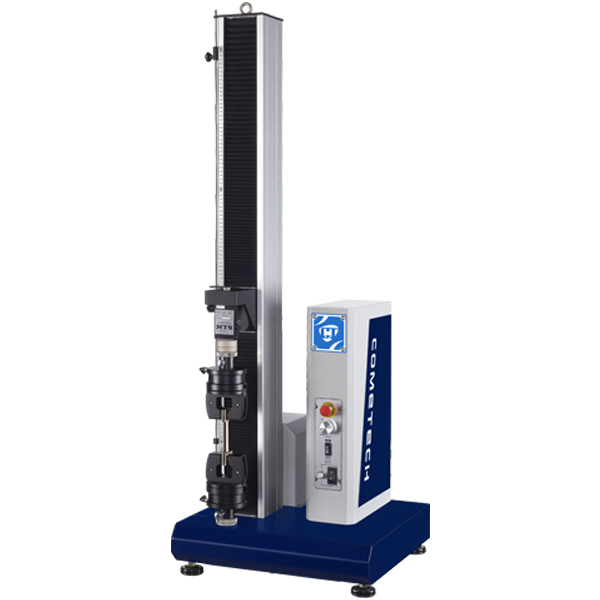

2-5kN Cometech QC-548 Table Type Single Column UTM
Views: 1282
$0.00
This model is using special testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis. The report configuration can be modified after test.
Multiple control systems can choose special displayer without connect computer (stand-alone) that can do simple test. It also can connect with computer which can do more functions. Fast external test button to do test. Standard equipped with sophisticated hand wheel which can be in precision position. The external signals can connect an external test signal function to expand to machine operating modes. The load cell and extensometer of accessories also have memory function
When change other type which does not need to do troublesome setting.
Description
Stay Ahead of Competition and Affordable all in one testing machine
This model is using special testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis. The report configuration can be modified after test.
Multiple control systems can choose special displayer without connect computer (stand-alone) that can do simple test. It also can connect with computer which can do more functions. Fast external test button to do test. Standard equipped with sophisticated hand wheel which can be in precision position. The external signals can connect an external test signal function to expand to machine operating modes. The load cell and extensometer of accessories also have memory function
When change other type which does not need to do troublesome setting.
Specification
Max Capacity |
5KN |
Units |
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg Length:m, cm, mm, ft, in |
Force Resolution |
31 bits |
Force Precision |
1/100,000 |
Max Test Stroke(w/o grip) |
800 mm |
Stroke resolution |
0.0001 mm |
Cantilever distance |
80 mm |
Speed Range |
High Speed Mode: 0.5~3000 mm/min Low Speed Mode: 0.0005~9 mm/min |
Speed Accuracy |
Lower 1% |
PC-Port |
RJ45(TCP/IP) |
Data sampling rate |
1200Hz (Max.) |
Motor Type |
Servo Motor |
Rigidity |
4.1 kN/mm (Vertical Rigidity) |
Hardware Protection |
✓ Over load protection ✓ Over stroke protection ✓ Over time protection ✓ Up/Down limit ✓ Emergency Stop ✓ Anti-collision function( At 1000mm/min speed, load cell capacity that is over 50kg will not be overload, but load cell brand should be appointed by Cometech) |
Feature |
✓ Force, displacement, time, stress and staring display in real time. ✓ The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required. ✓ The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required. ✓ User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable. ✓ Automatic return after the test. ✓ Machine protection by over force, over time, over displacement, etc. ✓ The jog precisely controls displacement. 8. Optional display is available for stand-alone mode. ✓ In user defined mode, cyclic test and test in a long duration can be achieved. |
Power Supply |
Single phase 200V -240 V, 5A |
Dimension |
50× 50 × 145 cm |
Weight |
80 kg |
Conforms Standards
- ISO 7500-1
- ASTM E4
- ASTM D-76
- DIN 5122
- JIS B7721
- JIS B7733
- BS EN 1002-2
- BS 1610
- GB/T 228
Application
- ASTM D790, ISO 178 Bending test
- ASTM D882 Film Tensile Test
- ASTM D638 Plastic Tensile Test
- ASTM D412 Rubber Tensile Test
- ASTM D1000 ASTM D3330 Tape Peeling Test
Industry
- Rubber
- Plastic
- Paper, Textile
- Metal, Wood
- Tape, Electronics
- Packaging, Health Care
- Construction Industry
Datasheet
QC-548D2 (5kN) Computerized Tensile (Compression) Testing Machine -Basic
QC-548M1F (5kN) Computerized Tensile (Compression) Testing Machine -Intermediate
QC-548M2F (2-5kN) Computerized Tensile (Compression) Testing Machine -Advanced
