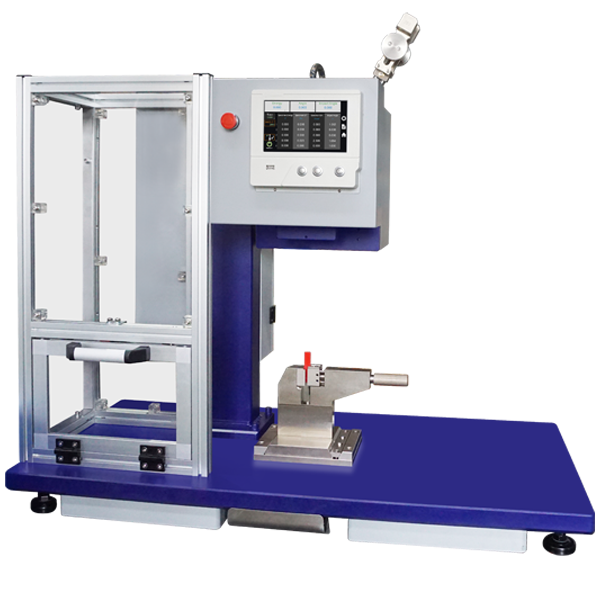

Cometech QC-639S(T) Digital Impact Tester
Views: 1082
$0.00
QC-639 series tester can be used to determine impact resistance of polymers. It calculates the energy absorbed by the loss of potential energy after impact. Therefore, it’s very important to reduce energy loss like friction between machine parts, and use accurate hammers to insure correct initial energy.
QC-639S/T has a 7″ PLC display that can measure and subtract factors which influence the test to provide users accurate test result. Customers can also purchase additional software to edit test report on computer. Different vice and hammer of Cometech’s impact tester can be select for Izod or Charpy test for both ISO and ASTM standard.
Description
Stay Ahead of Competition and Affordable all in one testing machine
QC-639S/T has a 7″ PLC display that can measure and subtract factors which influence the test to provide users accurate test result. Customers can also purchase additional software to edit test report on computer. Different vice and hammer of Cometech’s impact tester can be select for Izod or Charpy test for both ISO and ASTM standard.
Specification
| Model | QC-639S/T |
| Test Method | IZOD、CHARPY |
| Initial Angle | 150° |
| Test Capacity | QC-639S: Izod 1-11J, ASTM Charpy 1-11J, ISO Charpy 1-5J QC-639T: Izod 1-25J, Charpy 1-25J, (50J Optional), (20~80% of the max. capacity isthe sugested test range.) |
| Energy Accuracy | Min. display angle is 0.05° |
| Accessory | Software |
| Dimension | 1. With 7″ touch screen to show the impact energy value. 2. Able to save over 50 results. 3. The vise has position mechanism to ensure the sample position. 4. Able to change vise for Izod/Charpy to satisfy different test standard. 5. Provide multi-unit to display/ |
| Accessories | Calibration table for hammer, Manual, Hex Wrench Set |
| Optional Items | 1. Impact hammers for different energy test and different vises. 2. QC-640A Impact Specimen V-notcher. 3. Optional analysis software. |
| Power Supply | 110~240V /5A |
| Dimension | QC-639S: 110x50x110 cm (Full Cover) / 110x50x77 cm (Half Cover) QC-639T: 114x50x117 cm (Full Cover) / 114x50x84 cm (Half Cover) |
| Weight | QC-639S: 140 Kg(Full Cover) / 110 Kg(Half Cover) QC-639T: 400 Kg(Full Cover) / 370 Kg(Half Cover) |
Conforms Standards
- ASTM D256
- ASTM D6110
- ISO 179
- ISO 180
- ISO 13802
- ISO 8256
