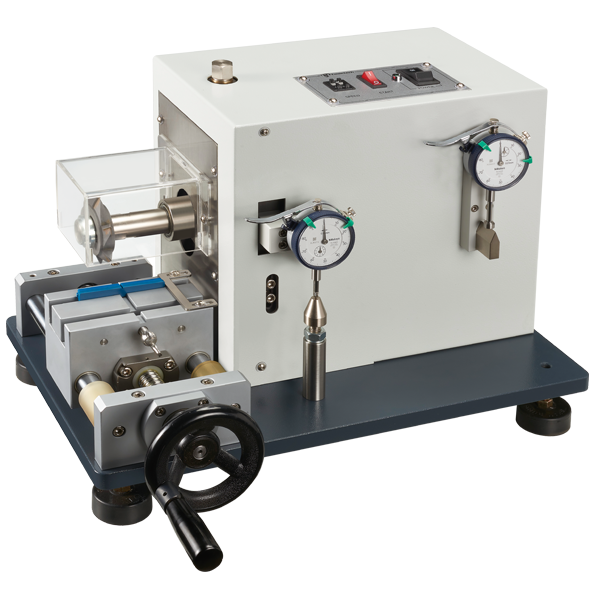

Cometech QC-640A Impact Specimen V-Notcher
Views: 1103
$0.00
This tester is used to impact and then cut standard V shape notch of specimens. It can provide steadier and more accuracy result during specimen test. Notch type depend on different standards; this machine can adjust the cutting depth conveniently and quickly, and can also be replaced with different cutting tools to meet the requirements of various standards. Cutting speed is also adjustable with the specimen material to reduce the effect of specimen during cutting
Description
Stay Ahead of Competition and Affordable all in one testing machine
This tester is used to impact and then cut standard V shape notch of specimens. It can provide steadier and more accuracy result during specimen test. Notch type depend on different standards; this machine can adjust the cutting depth conveniently and quickly, and can also be replaced with different cutting tools to meet the requirements of various standards. Cutting speed is also adjustable with the specimen material to reduce the effect of specimen during cutting.
Specification
Cutting Speed |
30-700 m/min |
Speed Setting |
finger flicking switch with 5-99 adjustable speeds |
Specimen Size |
Max. Length 14cm Width 3~13 mm Height(Cutting surface) 10~13mm |
Specimen Length |
8.0±0.2mm (ISO) 10.16±0.05mm (ASTM) with block gauges,easily switch to other specimen type |
Cutting Depth |
ASTM,ISO standardized blocks dial indicator x2(meaureing height of specimen and height after cutting) cleaning bruch, opening wrench, hex wrench |
Accessory |
Software |
Power |
Single phase 100~240 VAC |
Dimension |
48 x 37 x 35 cm |
Weight |
40kg |
Conforms Standards
- JIS K7110
- ASTM D256
- ASTM D6110
- ISO 179
- ISO 180
- ISO 2818
