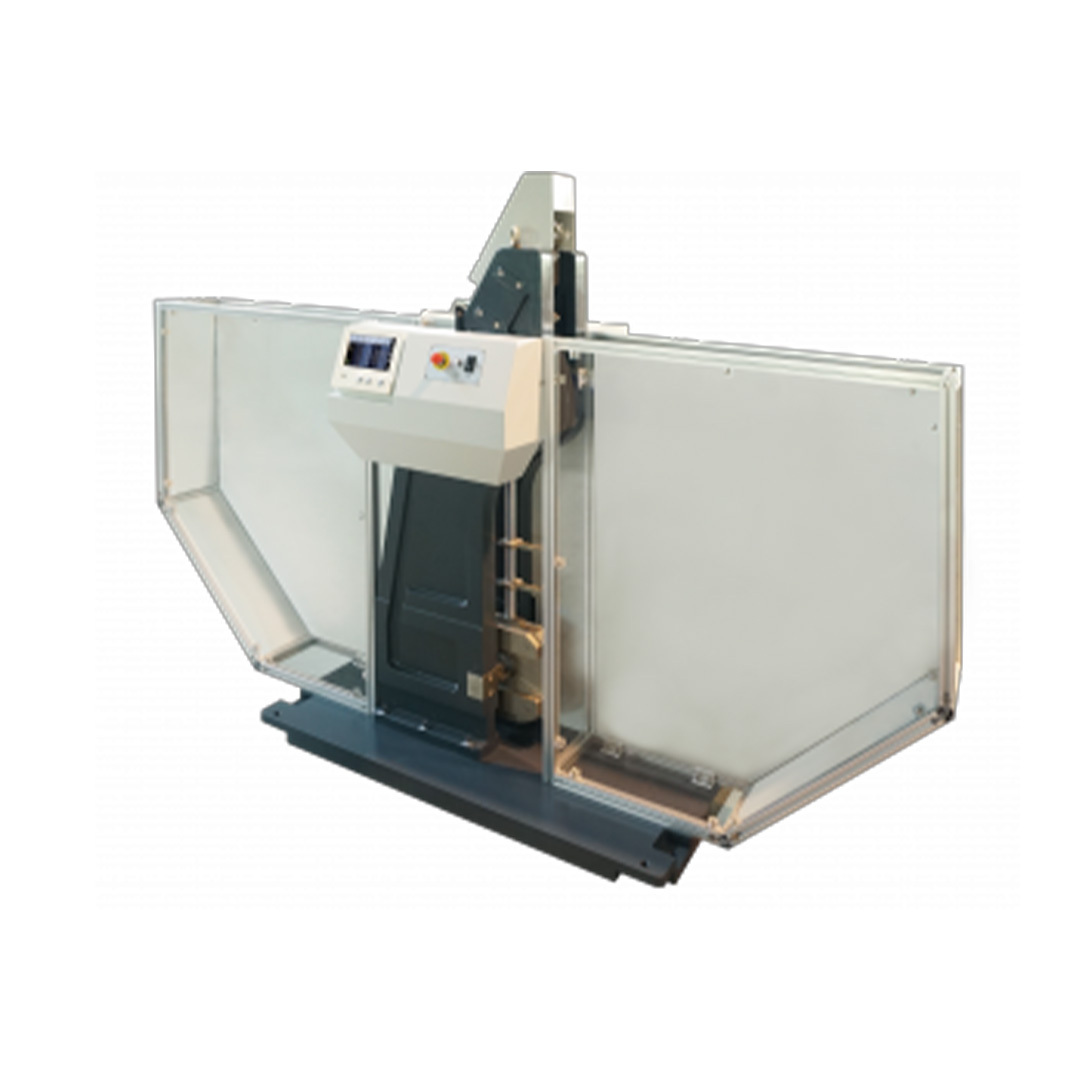

Cometech QC-913 Digital Metal Impact Tester
Views: 449
$0.00
It is suitable for metal material of large capacity impact tester. It used hammer once of swing impact specimen which broken was based on hammer of initial angle and after strike of angle to get hammer of loss energy which is material of impact energy value. This tester of feature is high precision, easy operation and the hammer will be auto return after finish impact. The test result can get from digital display and no need to complicate to calculation.
Description
Stay Ahead of Competition and Affordable all in one testing machine
It is suitable for metal material of large capacity impact tester. It used hammer once of swing impact specimen which broken was based on hammer of initial angle and after strike of angle to get hammer of loss energy which is material of impact energy value. This tester of feature is high precision, easy operation and the hammer will be auto return after finish impact. The test result can get from digital display and no need to complicate to calculation.
Specification
Capacity |
100J, 150J |
Test Type |
Charpy |
Impact Speed |
5m/s ±10% |
Recommend Test Range |
20%~80% of Hammer’s Capacity |
Minimal Angle Display |
150° |
Accessory |
Software |
Power |
J, J/mm, J/cm, J/mm², J/cm², kJ/m², Kg-cm, Kg-cm/mm, Kg-cm/cm, lb-ft, lb-ft/in, lb-ft/in² |
Power Demand |
Single Phase 220V |
Dimension |
188 x 67 x 143 cm |
Weight |
725 kg |
Application
- Metal
Conforms Standards
- EN 10045
- ASTM E 23-00a
- GB/T 229
