Gasmessgerät / Gasmesser PCE-RD 100

Views: 129

Description

Gas measuring device / Gas meter for indoor use / Real-time data display / WiFi interface / Memory Micro SD card 128 MB / Limit values ​​adjustable

The gas measuring device / gas meter offers precise monitoring of the radon concentration in the range of 0.1 … 99.9 pCi/L with an accuracy of < 10% @ 10 pCi/L and a sensitivity of 30 CPH at 1 pCi/L. Our gas measuring device / gas meter detects radon early, minimizes health risks and enables continuous real-time monitoring. Current measurement data is recorded every 10 minutes and average values ​​are calculated for 1 hour, 1 day and 7 days. The first reliable data output of the measured values ​​takes place in less than 1 hour.

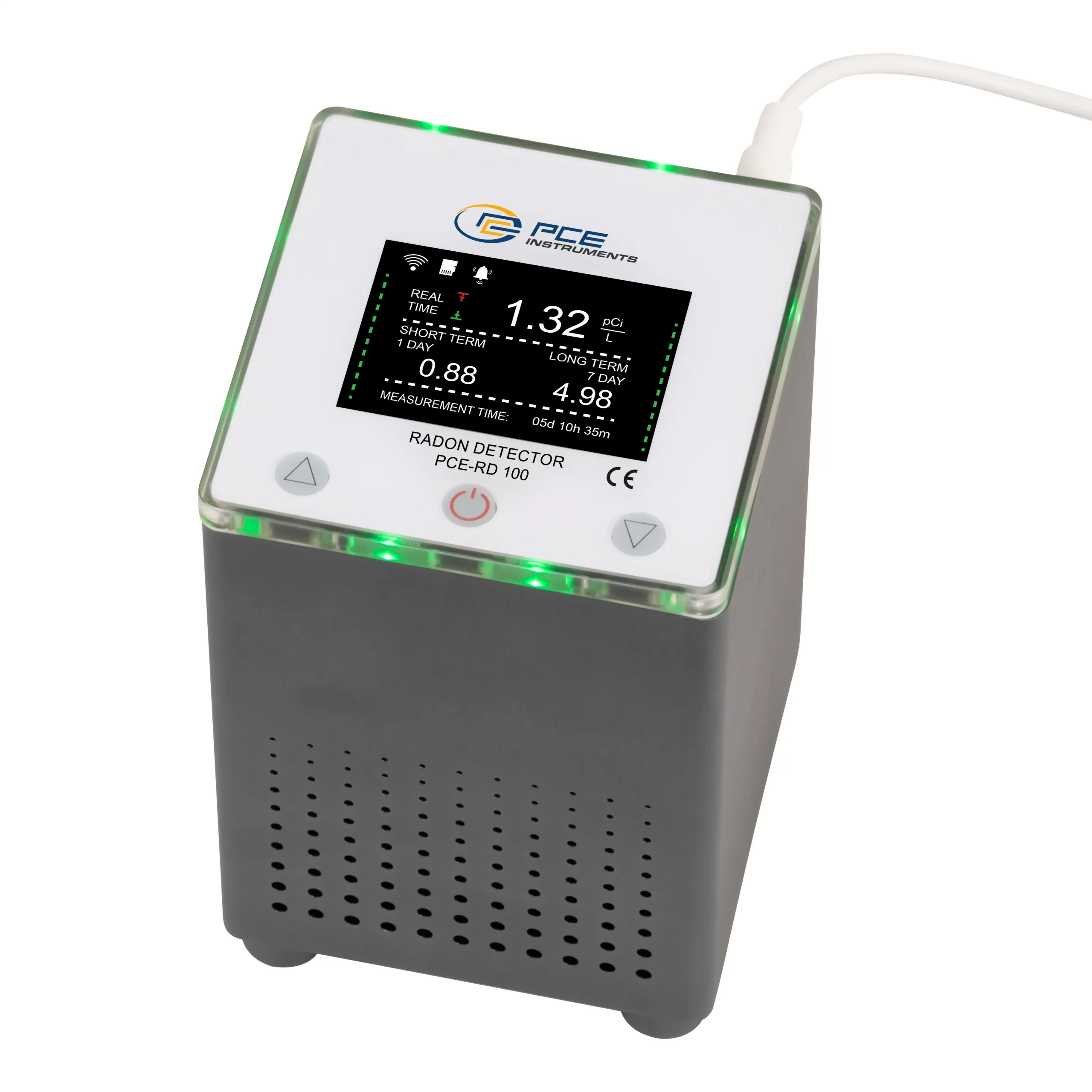

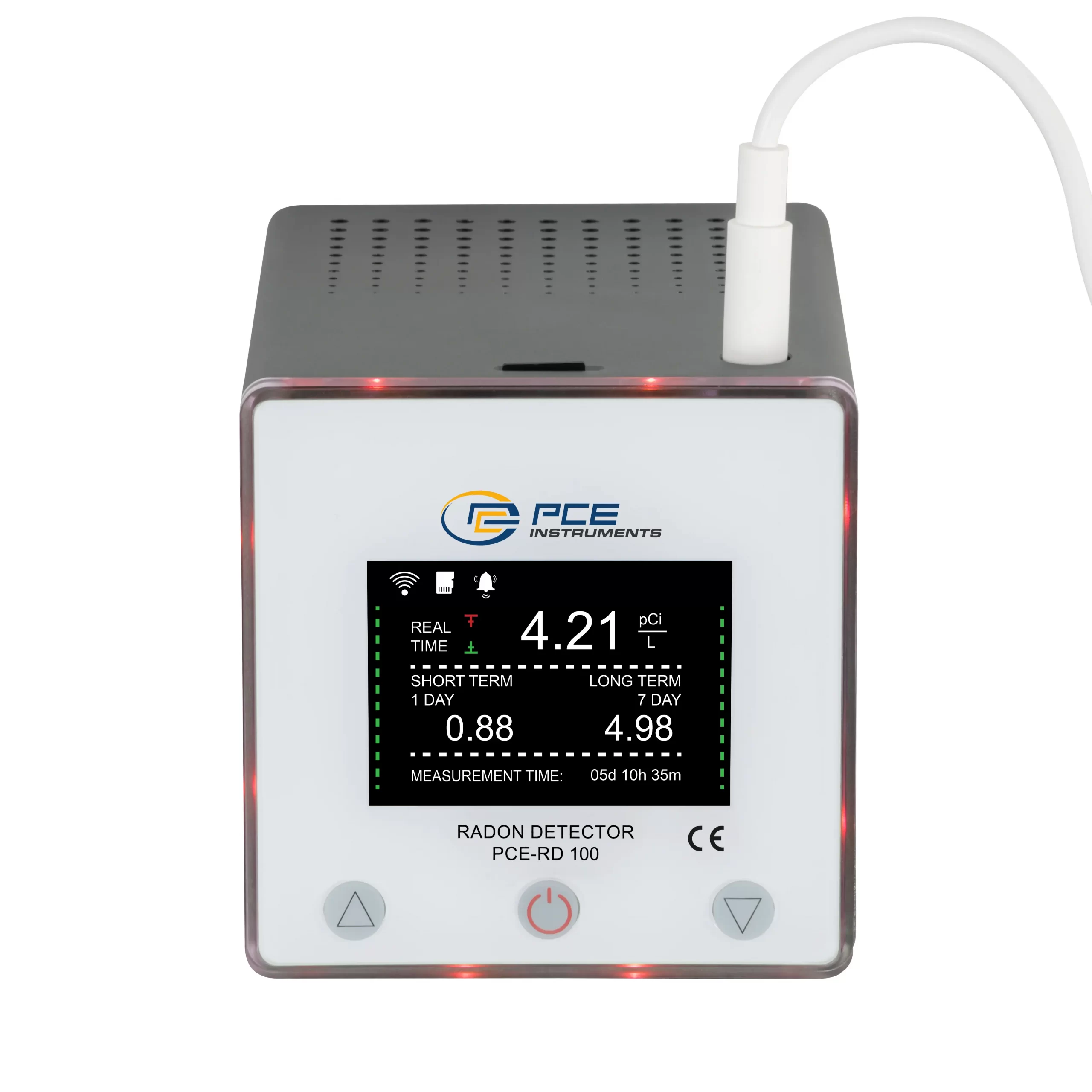

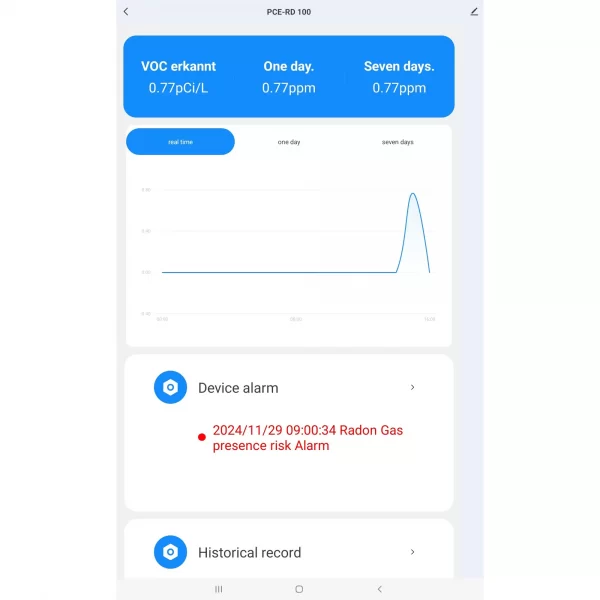

An integrated acoustic alarm and a colored LED display warn of increased radon values. For radon values ​​below 2.7 pCi/L, the display lights up green. For values ​​between 2.7 and 4 pCi/L, the display lights up yellow with an acoustic alarm. If the value exceeds 4 pCi/L, the display lights up red and a notification is sent to the smartphone. The alarm limits can also be set individually, so that the user can adjust the thresholds to suit their own needs. Thanks to the WiFi connection, the app can be used to conveniently monitor the measured values ​​remotely and control the gas measuring device / gas meter.

A 128 MB memory card continuously stores data for up to 12 months, which can easily be transferred to a computer as a csv file. The 2.3-inch TFT color display shows all relevant data clearly. The gas measuring device / gas meter is operated via a stable power supply and thus offers reliable, continuous monitoring. Our gas measuring device / gas meter is user-friendly, cost-effective and enables reliable monitoring of the radon concentration indoors.

Characteristics

– Sensor: Pulsed ionization chamber
– Measurement sensitivity: 30 CPH @ 1 pCi/L
– Real-time data display
– Data transfer to smartphone via WiFi
– Data export to PC via memory card
– Alarm: acoustic, optical
– Green: values ​​below 2.7 pCi/L
– Yellow: Values ​​between 2.7 and 4 pCi/L (with acoustic alarm)
– Red: Values ​​above 4 pCi/L (including smartphone notification)
– TFT color screen 2.4 inches

Specification

radiation
measuring range   0.1 … 99.9 pCi/L
resolution   0.01 pCi/L
accuracy   <10% @ 10 pCi/L
General technical data
measurement functions (additional information)   Measurements: Every 10 minutes, 1 day, 7 days
display type   TFT color display
display size   2.3 inches
storage medium   Micro-SD card
storage capacity   128 MB
storage information   Stores data every 10 minutes for up to 12 months continuously, transferable to PC
interface   WiFi
alarm   optical, acoustic
sensors   Pulsed ionization chamber
sensitivity   30 CPH @ 1 pCi/L
0.5 CPM @ 1 pCi/L
menu language   English (US), English (GB)
protection class (device)   IP20
power supply   100 … 240V AC | 50/60 Hz
connector type   Euro plug
operating conditions   1 … 50 °C, 0 … 80% r. F
storage conditions   1 … 50 °C, 0 … 80% r. F
Dimensions (L x W x H)   82 x 82 x 125 mm
Weight   394 g

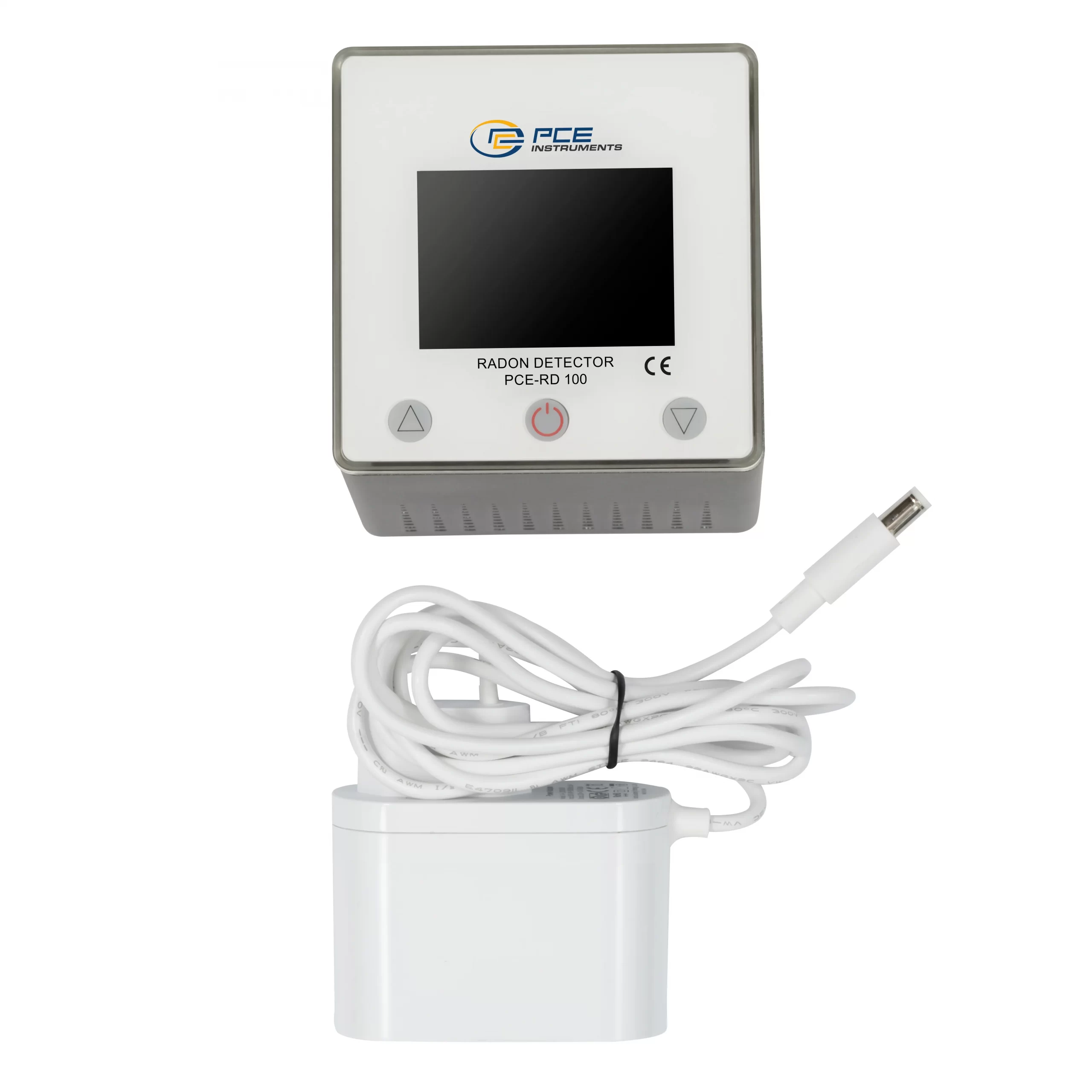

Scope of delivery

1 x Gas measuring device / gas meter PCE-RD 100
1 x Power Adapter 12 V / 2 A
1 x User Manual
