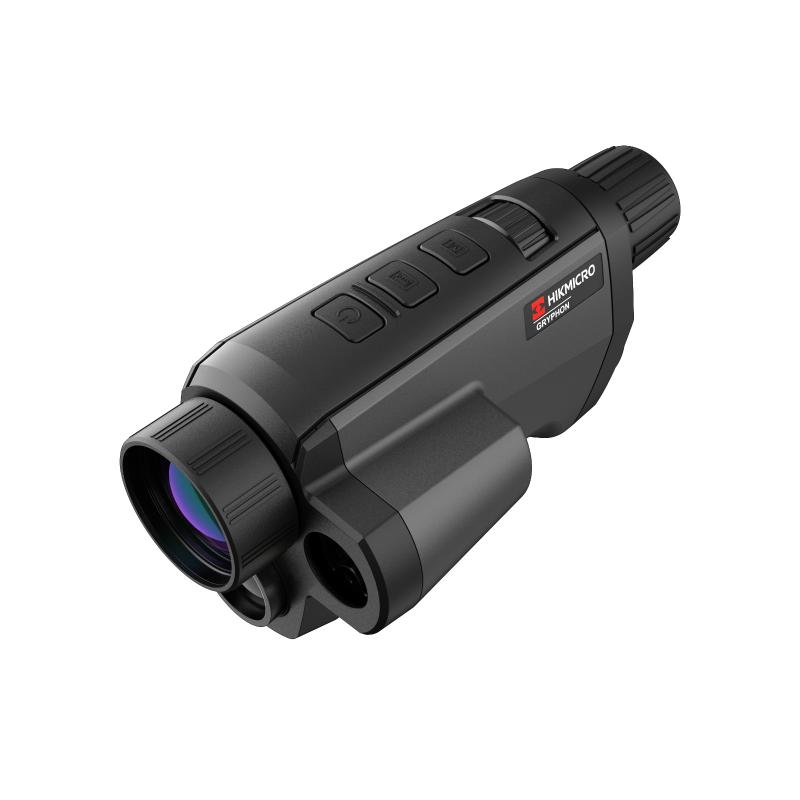

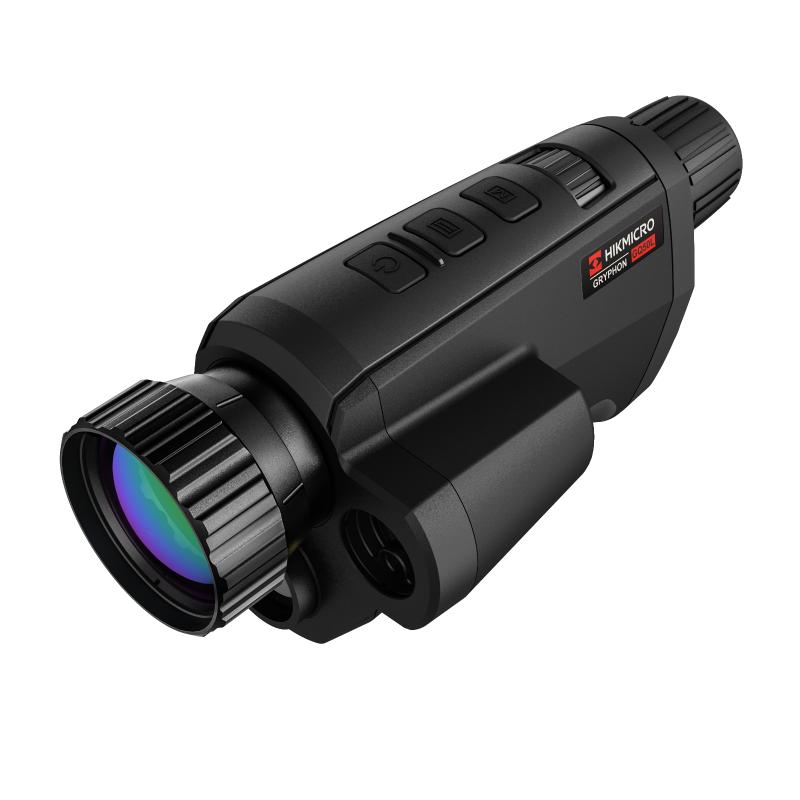

HIKMICRO GRYPHON LRF
Views: 1099
$0.00
All-in-one design meets the needs of all-day & all-weather observation
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | GH25L, GH35L, GQ35L, GQ50L |
|---|
Description

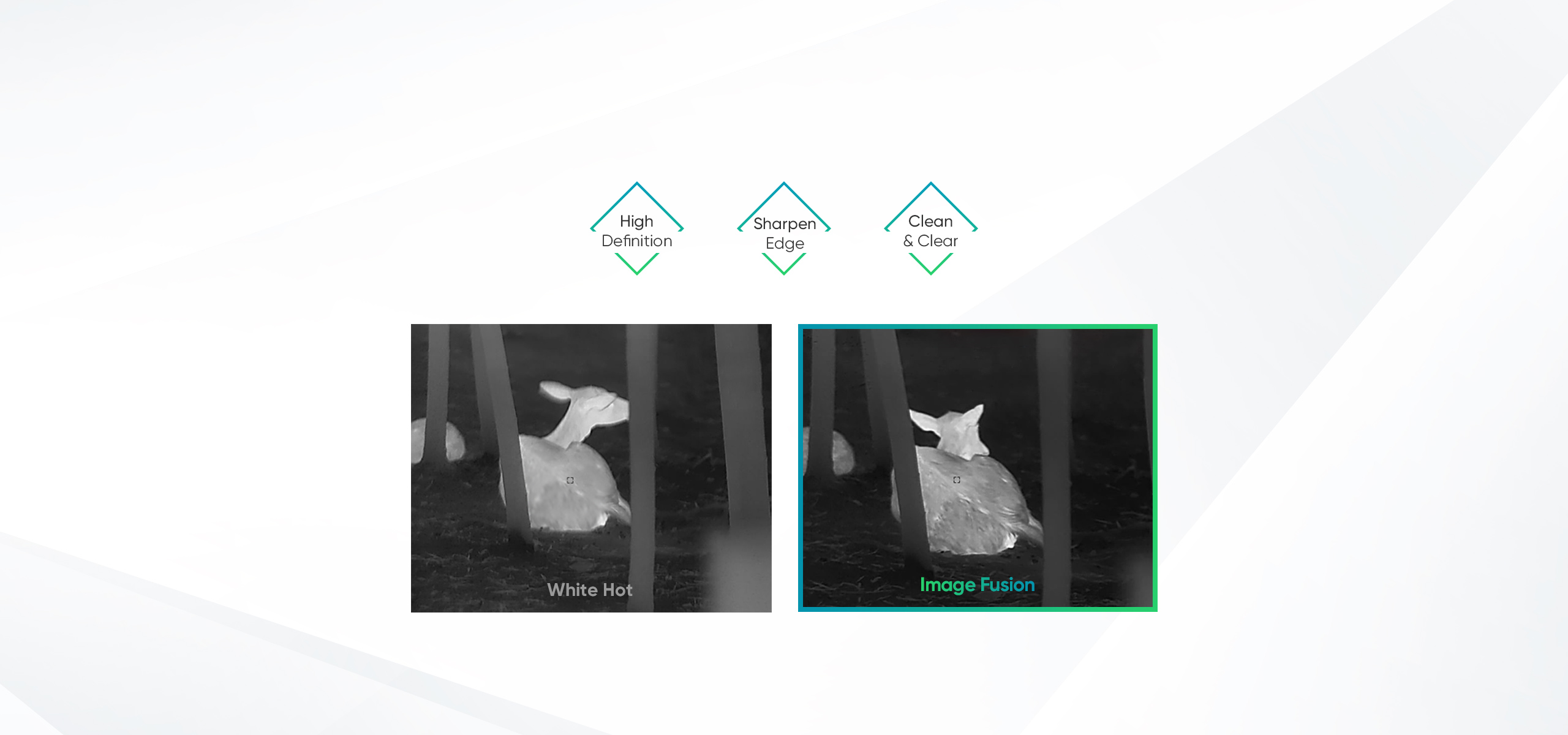

Outstanding Image Algorithm
Self-developed image algorithm optimizes image quality, bringing users a high-definition and cleaner picture, highlighting the edge of the object.
Specification
| Model | GH25L | GH35L | GQ35L | GQ50L |
|---|---|---|---|---|
| Thermal Module | ||||
| Product Model | GH25L | GH35L | GQ35L | GQ50L |
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 | 384 × 288 | 640 × 512 | 640 × 512 |
| Frame Rate | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Pixel Interval | 12 μm | 12 μm | 12 μm | 12 μm |
| Response Waveband | 8 μm to 14 μm | 8 μm to 14 μm | 8 μm to 14 μm | 8 μm to 14 μm |
| NETD | ＜35 mK(@25°C,F#=1.0) | ＜35 mK(@25°C,F#=1.0) | ＜35 mK(@25°C,F#=1.0) | ＜35 mK(@25°C,F#=1.2) |
| Lens (Focal Length) | 25 mm | 35 mm | 35 mm | 50 mm |
| Detection Range | 1200 m | 1800 m | 1800 m | 2600 m |
| Focus Mode | Manual | Manual | Manual | Manual |
| Field of View | 10.53° × 7.9° (H × V) | 7.5° × 5.7° (H × V) | 10.97° × 8.82° (H × V) | 8.78° × 7.03° (H × V) |
| Min. Focusing Distance | 2 m | 3 m | 3 m | 5 m |
| Aperture | F1.0 | F1.0 | F1.0 | F1.2 |
| Magnification | 2.39 | 3.35 | 2.0 | 2.9 |
| Digital Zoom | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× |
| Optical Module | ||||
| Image Sensor | 1/2” Progressive Scan CMOS | 1/2” Progressive Scan CMOS | 1/2” Progressive Scan CMOS | 1/2” Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 |
| Min. Illumination | 0.001 Lux @ F1.0 | 0.001 Lux @ F1.0 | 0.001 Lux @ F1.0 | 0.001 Lux @ F1.0 |
| Focal Length | 22 mm | 22 mm | 22 mm | 22 mm |
| Wavelength | 400 nm to 1000 nm | 400 nm to 1000 nm | 400 nm to 1000 nm | 400 nm to 1000 nm |
| Image Display | ||||
| Frame Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Display | 0.39 inch, OLED, 1024 × 768 | 0.39 inch, OLED, 1024 × 768 | 0.39 inch, OLED, 1024 × 768 | 0.39 inch, OLED, 1024 × 768 |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Image Mode | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion |
| General | ||||
| Protection Level | IP67 | IP67 | IP67 | IP67 |
| Weight | 510 g | 510 g | 510 g | 548 g |
| Dimension | 87.2 mm × 73.3 mm × 161.5 mm | 87.2 mm × 73.3 mm × 167.8 mm | 87.2 mm × 73.3 mm × 167.8 mm | 87.2 mm × 73.3 mm × 183.6 mm |
| Working Temperature | -30 to 55℃ | -30 to 55℃ | -30 to 55℃ | -30 to 55℃ |
| Eye-Relief | 19.5 mm | 19.5 mm | 19.5 mm | 19.5 mm |
| Smart Function | Yes | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes | Yes |
| Hot Spot | Yes | Yes | Yes | Yes |
| System | ||||
| Built-in Memory | 16 GB | 16 GB | 16 GB | 16 GB |
| Record Video | Yes | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes | Yes |
| Power Supply | ||||
| Power | Removable Battery | Removable Battery | Removable Battery | Removable Battery |
| Battery Type | One 18650 battery | One 18650 battery | One 18650 battery | One 18650 battery |
| Battery Operating Time | 5 hours | 5 hours | 4.5 hours | 4.5 hours |
| Laser Rangefinder | ||||
| Safety Class for Laser | Class 1 | Class 1 | Class 1 | Class 1 |
| Wavelength | 905 nm | 905 nm | 905 nm | 905 nm |
| Max. Measuring Range | 600 m | 600 m | 600 m | 600 m |
| Measurement Accuracy | ± 1 m | ± 1 m | ± 1 m | ± 1 m |
Advantages
1. New Way to Control
The wheel is used for menu selection and zooming, making the operation more natural. Each rotation delivers an excellent sense of control to users.
2. Advanced VOx 12µm Imaging Sensor
The powerful VOx 12µm imaging sensor with NETD<35mK ensure the perfect distinction of the target and present clear and detailed pictures even in complete darkness.

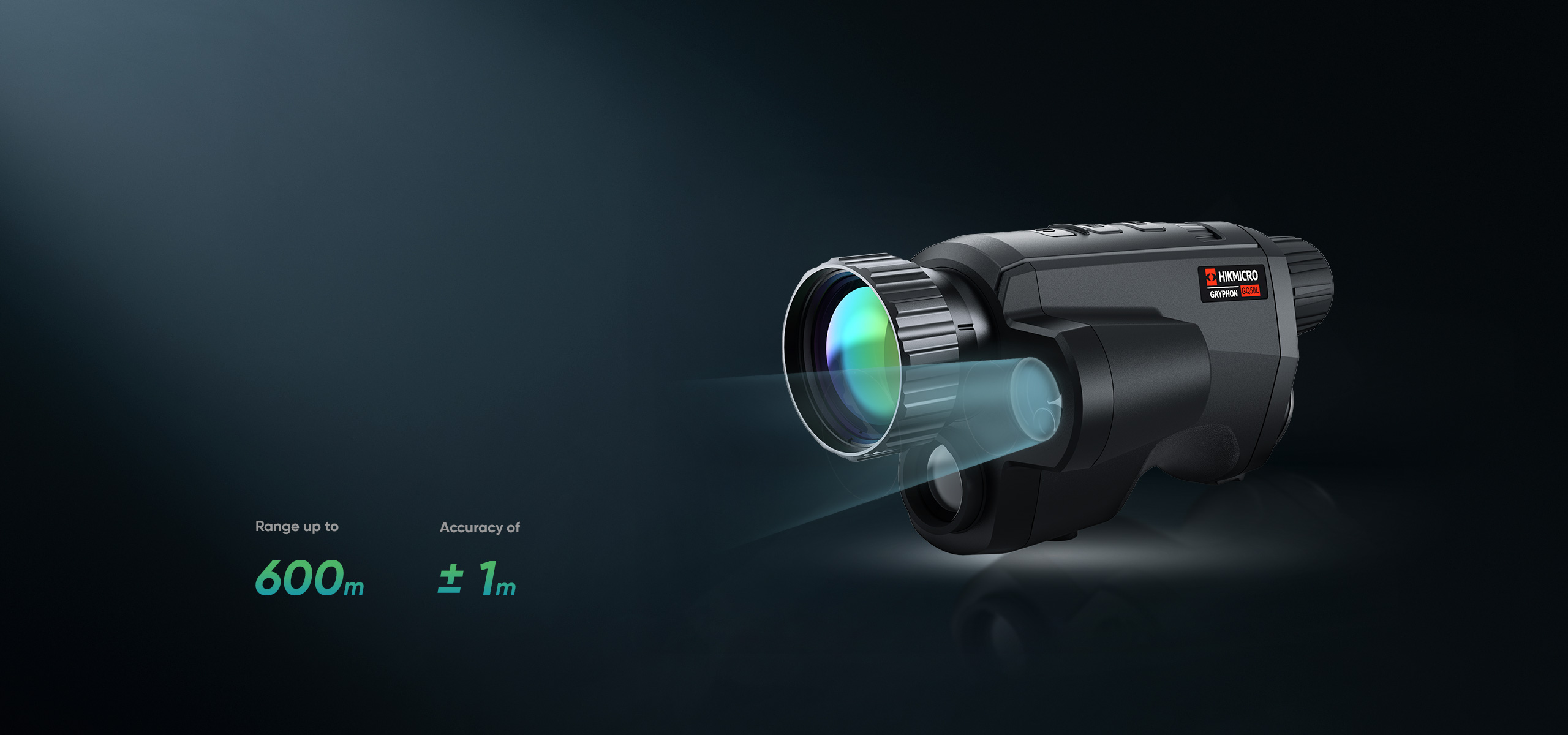

3. Built-in Laser Rangefinder, Accurately Measure the Distance
The integrated laser rangefinder allows to determine the distance in various scenarios, which plays an important role in precision shooting.
4. Replaceable Battery
Two batteries and a HIKMICRO external battery charger are included in the package box, which gives the freedom to observe as long as needed even a full day.
