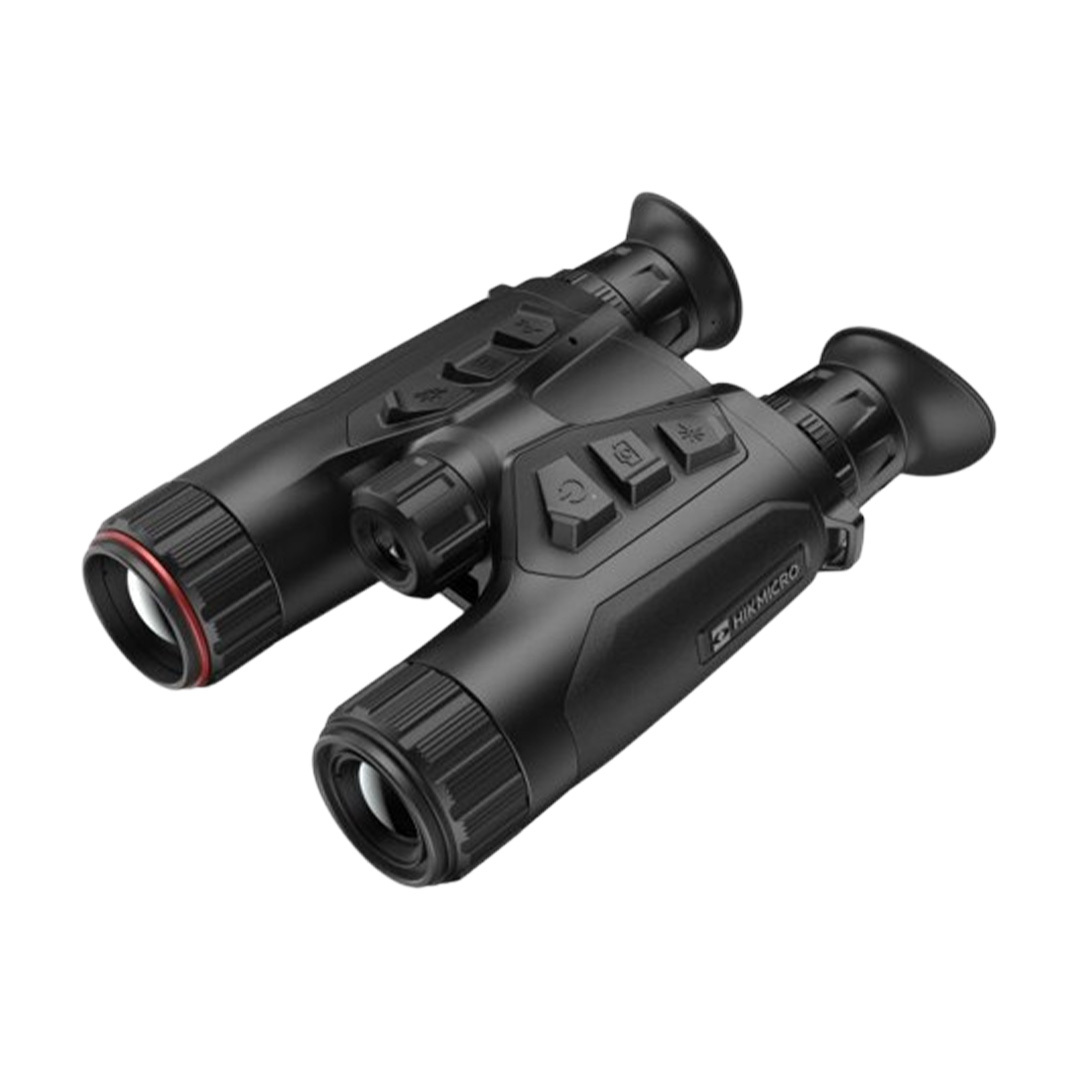

HIKMICRO HABROK 4K
Views: 1156
$0.00
Digital Hunting Day walker
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | HE25L 5.5-22×60, HE25LN 5.5-22×60 |
|---|
Description
The world-leading digital and thermal binocular changes the way you hunt during daytime.
HIKMICRO HABROK 4K’s thermal channel enables hunters to spot rapidly even when the subject is hiding in deep shadow.
4K UHD brings vivid, informative, and layered images. A wide FOV @12m and powerful magnification from 5.5-22X cover all observation needs to confirm the age and sex of the deer.
The continuous laser rangefinder can help keep tracing the distance of a moving target up to 1000m.
Highlights capturing, sharing in one tap
Video and audio recording features of HABROK 4K capture highlights from the hunting trip and can be saved in the local album. You can easily view your wonderful moments in wilds and share them with one tap.
Specification
| Feature | HE25L 5.5-22×60 | HE25LN 5.5-22×60 |
|---|---|---|
| Thermal Module | ||
| Product Model | HE25L 5.5-22×60 | HE25LN 5.5-22×60 |
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 x 192 | 256 x 192 |
| Frame Rate | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm |
| NETD | Less than 35 mK (@25°C), F#=1.0 | Less than 35 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 25mm, F1.0 | 25mm, F1.0 |
| Detection Range | 1200m | 1200m |
| Focus Mode | Focus Ring | Focus Ring |
| Field of View (H × V) | 7.0° × 5.3° / 12.2m x 9.3m | 7.0° × 5.3° / 12.2m x 9.3m |
| Min. Focusing Distance | 3m | 3m |
| Magnification | 4.3x-17.2x (4x) | 4.3x-17.2x (4x) |
| Optical Module | ||
| Image Sensor | 1.88” Progressive Scan CMOS | 1.88” Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 | 3840 x 2160 |
| Field of View (H × V) | 6.9° x 4.1° / 12.0m × 7.2m | 6.9° x 4.1° / 12.0m × 7.2m |
| Focal Length | 60mm, F2.2 | 60mm, F2.2 |
| IR Illuminator Wavelength | 850nm | 940nm |
| Viewing Range at Night | 400m (Estimated) | 350m (Estimated) |
| Image Display | ||
| Display | 0.49 inch, OLED, 1920 ×1080 | 0.49 inch, OLED, 1920 ×1080 |
| Contrast Adjustment | Yes | Yes |
| Brightness Adjustment | Yes | Yes |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 8mm | 8mm |
| Eye Relief | 15mm | 15mm |
| Diopter (Range) | -5D~+3D | -5D~+3D |
| Tone Adjustment | Cold, Warm | Cold, Warm |
| General | ||
| Protection Level | IP67 | IP67 |
| Weight | 800g without batteries (Estimated) | 800g without batteries (Estimated) |
| Dimension | 138mm × 68.2 mm × 223 mm (5.4″ × 2.7″ × 8.6″) (Estimated) | 138mm × 68.2 mm × 223 mm (5.4″ × 2.7″ × 8.6″) (Estimated) |
| Working Temperature | -30℃ ~ +55℃ | -30℃ ~ +55℃ |
| Interpupillary Adjustment Range | 60 mm to 74 mm | 60 mm to 74 mm |
| Mounting Adapter | 1/4“-20-UNC | 1/4“-20-UNC |
| System | Yes | Yes |
| Record Video | Yes | Yes |
| Capture Snapshot | Yes | Yes |
| Hotspot | Yes | Yes |
| GPS | Yes | Yes |
| Digital Magnetic Compass | Yes | Yes |
| Standby Mode | Yes | Yes |
| Storage | Built-in EMMC (64 GB) | Built-in EMMC (64 GB) |
| PIP | Yes | Yes |
| Hot Track | Yes | Yes |
| Audio Recording | Yes | Yes |
| Local Album | Yes | Yes |
| Power Supply | ||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 8h (Estimated) | 8h (Estimated) |
| Type-C Power Supply | 5V DC, 2 A | 5V DC, 2 A |
| Supports External Power Supply | Yes | Yes |
| Laser Rangefinder | ||
| Safety Class for Laser | Class 1 | Class 1 |
| Wavelength | 905nm | 905nm |
| Max. Measuring Range | 1000m | 1000m |
| Measurement Accuracy | ±1m | ±1m |
| Min. Measuring Range | 10m | 10m |
Advantages
- Audio Recording
- Video Recording
- Local Album
- Digital Magnetic Compass
Video
ADDITIONAL INFORMATION
| Model | HE25L 5.5-22×60, HE25LN 5.5-22×60 |
|---|
Reviews
There are no reviews yet.
