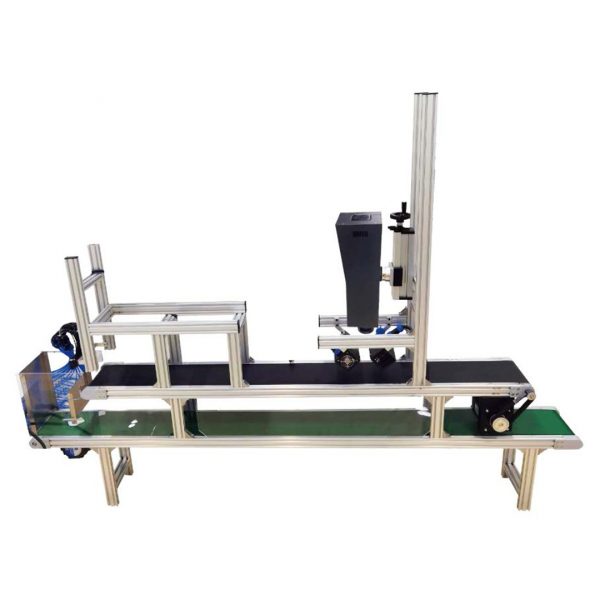

High-speed hyperspectral sorting system
Views: 359
High-speed hyperspectral sorting system
FS-18/19M/19X
Ultrahigh speed：3500fps
short wave near infrared：900-1700nm
Description

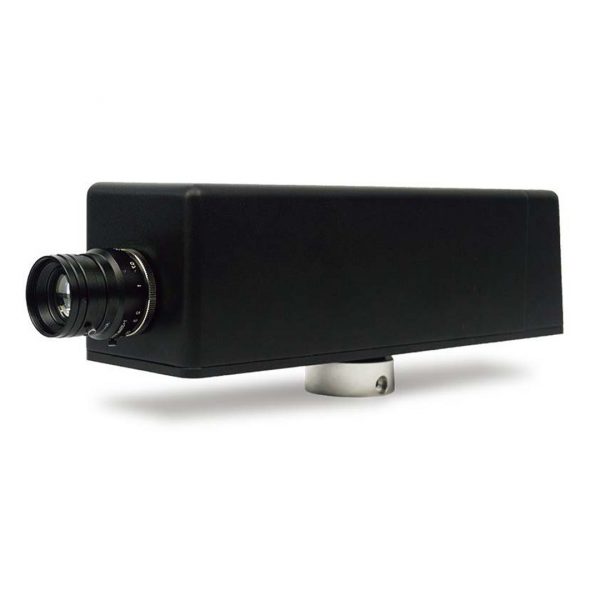

FS-18/19M/19X is a newly launched line-scan hyperspectral camera specially designed for industrial sorting applications. Its high frequency characteristics meet the requirements of scanning speed in the industrial field, and its solid structure and compact body It also makes its installation scenarios more flexible.
- Spectral range：900-1700nm
- Imaging speed: up to 3500fps
- Spectral resolution：6nm
- Provide hyperspectral image processing software
- Multiple regional ROIs can be achieved
- Suitable for various environments
Specifications
| Feature | FS-18 (SWIR) | FS-19M (SWIR) | FS-19X (SWIR) |
|---|---|---|---|
| Lighting Method | Passive lighting (excluding light source) | Passive lighting (excluding light source) | Passive lighting (excluding light source) |
| Spectral Method | Transmission grating | Transmission grating | Transmission grating |
| Spectral Range | 900-1700 nm | 900-1700 nm | 900-1700 nm |
| Number of Spectral Bands | 512 | 150 | 100 |
| Spectral Resolution (FWHM) | < 6 nm | < 9 nm | < 13 nm |
| Slit Width | 25 µm | 25 µm | 25 µm |
| Transmission Efficiency | > 60% | > 60% | > 60% |
| Stray Light | < 0.5% | < 0.5% | < 0.5% |
| Number of Spatial Pixels | 640 | Not specified | Not specified |
| Pixel Size | 15 µm | 15 µm | 15 µm |
| Lens Focal Length | Standard 8 mm (optional 6 mm, 12 mm, 25 mm, 35 mm lenses) | Standard 8 mm (optional 6 mm, 12 mm, 25 mm, 35 mm lenses) | Standard 8 mm (optional 6 mm, 12 mm, 25 mm, 35 mm lenses) |
| Field of View | 62° (8 mm focal length lens) | 77° (6 mm lens) | 77° (6 mm lens) |
| Imaging Speed | 740 fps | 2400 fps | 3500 fps |
| Detector | InGaAs | InGaAs | InGaAs |
| SNR (Peak) | 600/1 | 600/1 | 600/1 |
| Camera Output | Cameralink | Cameralink | Cameralink |
| Camera Interface | C-Mount | C-Mount | C-Mount |
| Accessories | Lens, data cable, power supply, data acquisition card | Lens, data cable, power supply, data acquisition card | Lens, data cable, power supply, data acquisition card |
| Technical Support | SDK available for secondary development | SDK available for secondary development | SDK available for secondary development |
| ROI | Single area | Single area | Single area |
Applications

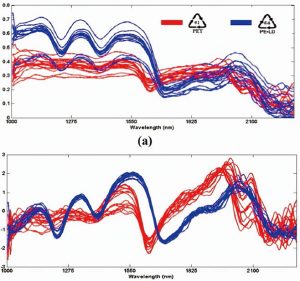

Plastic Sorting
Fruit and Vegetable Sorting

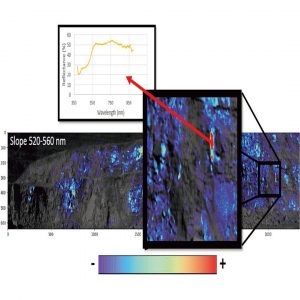

Ore Sorting
