Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
VOx Uncooled Focal Plane Arrays |
Max. Resolution |
640 x 512 |
640 x 512 |
Frame Rate |
50Hz |
50Hz |
Pixel Interval |
12μm |
12μm |
Response Waveband |
8μm to 14μm |
8μm to 14μm |

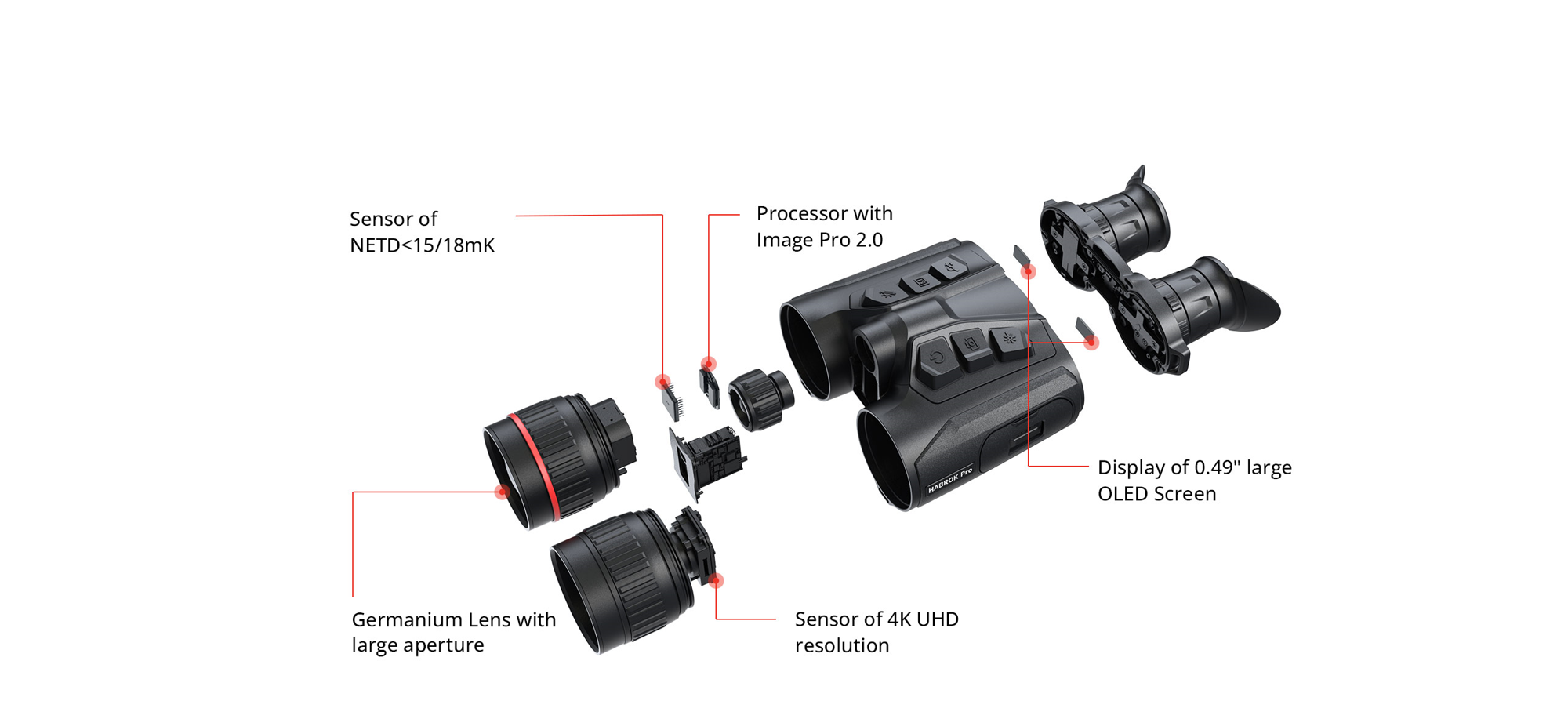

NETD |
Less than 15 mK (@25°C),F#=1.0 |
Less than 15 mK (@25°C),F#=1.0 |
Lens (Focal Length) |
50mm, F1.0 |
50mm, F1.0 |

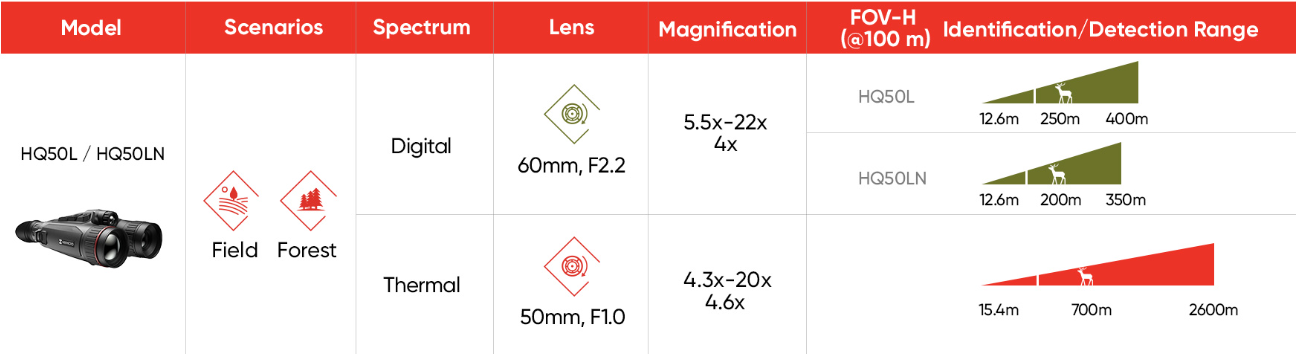

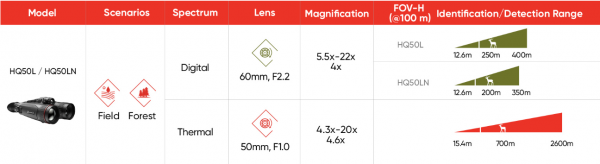

Detection Range |
2600m |
2600m |
Focus Mode |
Focus Ring |
Focus Ring |
Field of View(H × V), Degrees / m @100m |
8.8° × 5.3° / 15.4m x 9.3m |
8.8° × 5.3° / 15.4m x 9.3m |
Min. Focusing Distance |
5m |
5m |
Magnification |
4.3x-20.0x (4.6x) |
4.3x-20.0x (4.6x) |
Optical Module |
|
|
Image Sensor |
1/1.8” Progressive Scan CMOS |
1/1.8” Progressive Scan CMOS |
Max. Resolution |
3840 x 2160 |
3840 x 2160 |
Field of View (H × V), Degrees/m @100 m |
7.3° x 4.1° / 12.6m × 7.2m |
7.3° x 4.1° / 12.6m × 7.2m |
Focal Length |
60mm, F2.2 |
60mm, F2.2 |
Min. Working Distance |
3m |
3m |
IR Illuminator Wavelength |
850nm |
940nm |
Viewing Range at Night |
400m |
350m |
Magnification |
5.5x – 22.0x(4x) |
5.5x – 22.0x(4x) |
Focus Mode |
Focus Ring |
Focus Ring |
Smart IR |
Yes |
Yes |

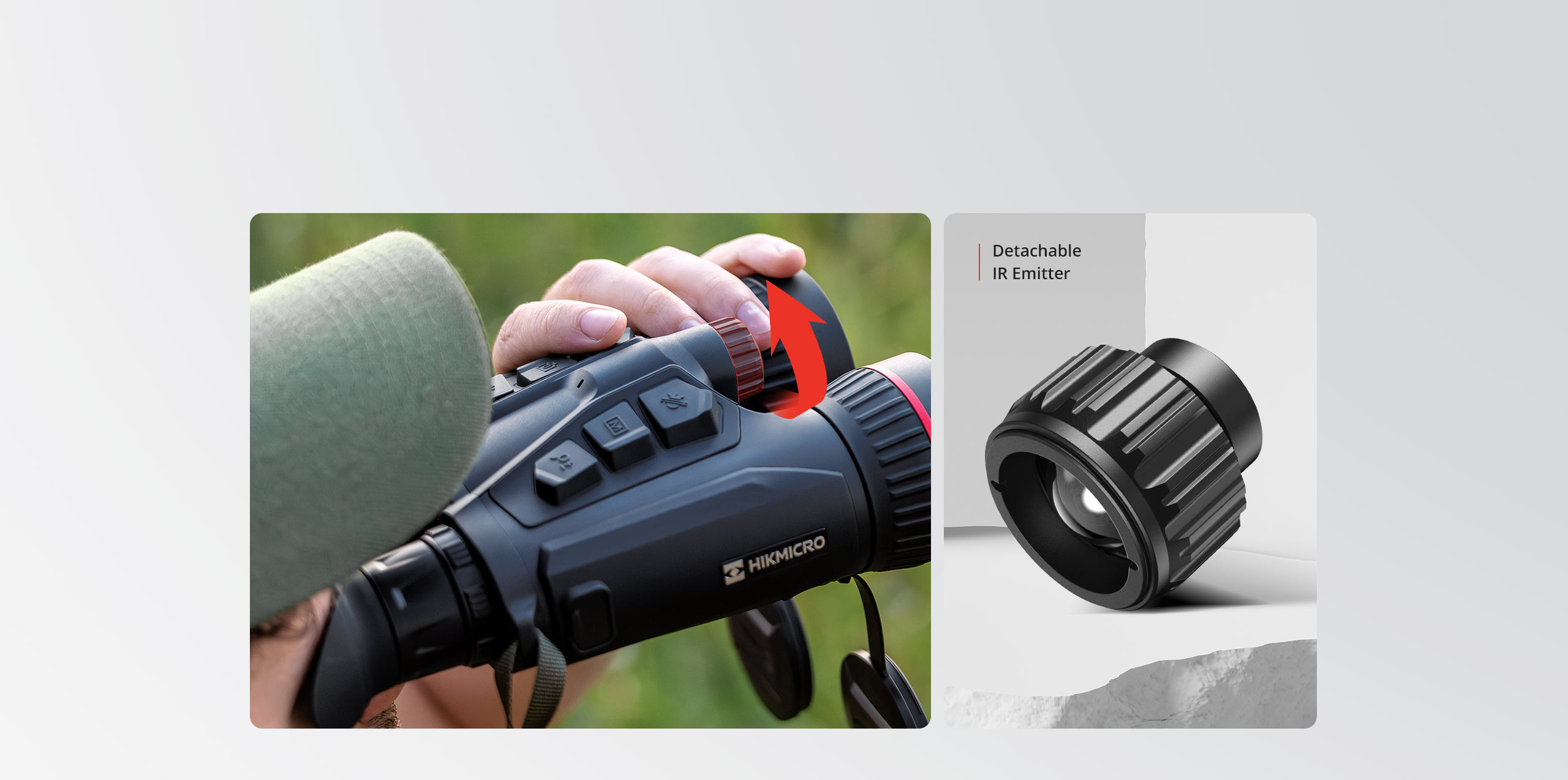

Replaceable IR Illuminator |
Yes |
Yes |
Image Display |
|
|
Display |
0.49 inch, OLED, 1920 ×1080 |
0.49 inch, OLED, 1920 ×1080 |
Contrast Adjustment |
Yes |
Yes |
Brightness Adjustment |
Yes |
Yes |
Palettes |
Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
Auto, Manual, External Correction |
Exit Pupil |
8mm |
8mm |
Eye Relief |
15mm |
15mm |
Diopter (Range) |
-5D~+3D |
-5D~+3D |
Tone Adjustment |
Cold, warm |
Cold, warm |
Zoom Pro |
Yes |
Yes |

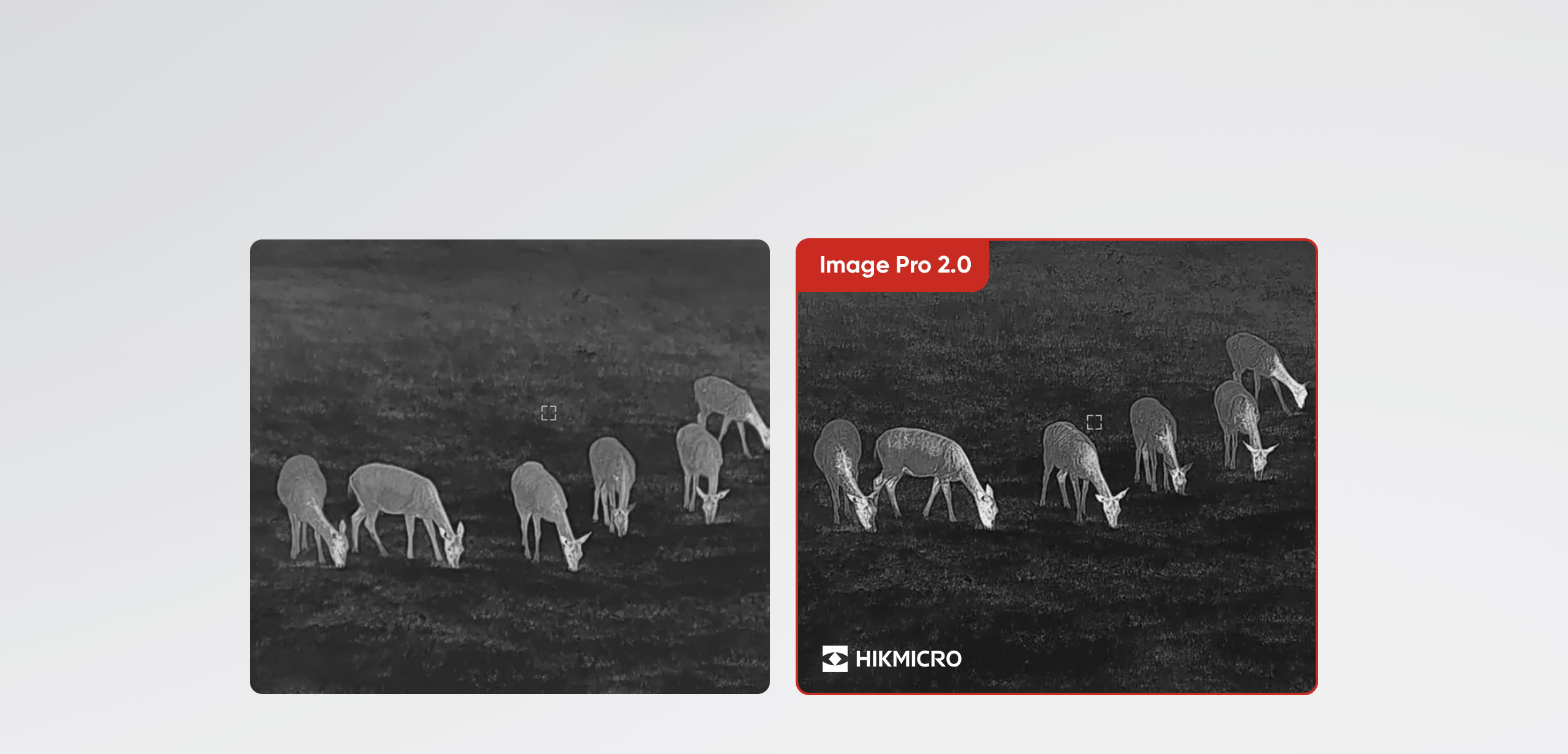

Image Pro 2.0 |
Yes |
Yes |
General |
|
|
Protection Level |
IP67 |
IP67 |
Weight |
975g with battery pack |
975g with battery pack |
Dimension |
142.9mm × 79.7 mm × 230.5 mm (5.6″ × 3.1″ × 9.1″) |
142.9mm × 79.7 mm × 230.5 mm (5.6″ × 3.1″ × 9.1″) |
Working Temperature |
-30℃ ~ +55℃ |
-30℃ ~ +55℃ |
Interpupillary Adjustment Range |
60 mm to 74 mm |
60 mm to 74 mm |
Mounting Adapter |
1/4“-20-UNC |
1/4“-20-UNC |
System |
|
|
Record Video |
Yes |
Yes |
Capture Snapshot |
Yes |
Yes |
Hotspot |
Yes |
Yes |
GPS |
Yes |
Yes |
Digital Magnetic Compass |
Yes |
Yes |
Standby Mode |
Yes |
Yes |
Storage |
Built-in EMMC (64 GB) |
Built-in EMMC (64 GB) |
PIP |
Yes |
Yes |
Hot Track |
Yes |
Yes |
Audio Recording |
Yes |
Yes |
Local Album |
Yes |
Yes |
Power Supply |
|
|
Battery Type |
Replaceable and Rechargeable Li-ion Battery Pack |
Replaceable and Rechargeable Li-ion Battery Pack |
Battery Operating Time |
10.5h (25 °C, with hotspot off, LRF and Zoom Pro on) |
10.5h (25 °C, with hotspot off, LRF and Zoom Pro on) |
Type-C Power Supply |
5V/9V DC, 3A Support External Power Supply, Support Direct Charging |
5V/9V DC, 3A Support External Power Supply, Support Direct Charging |

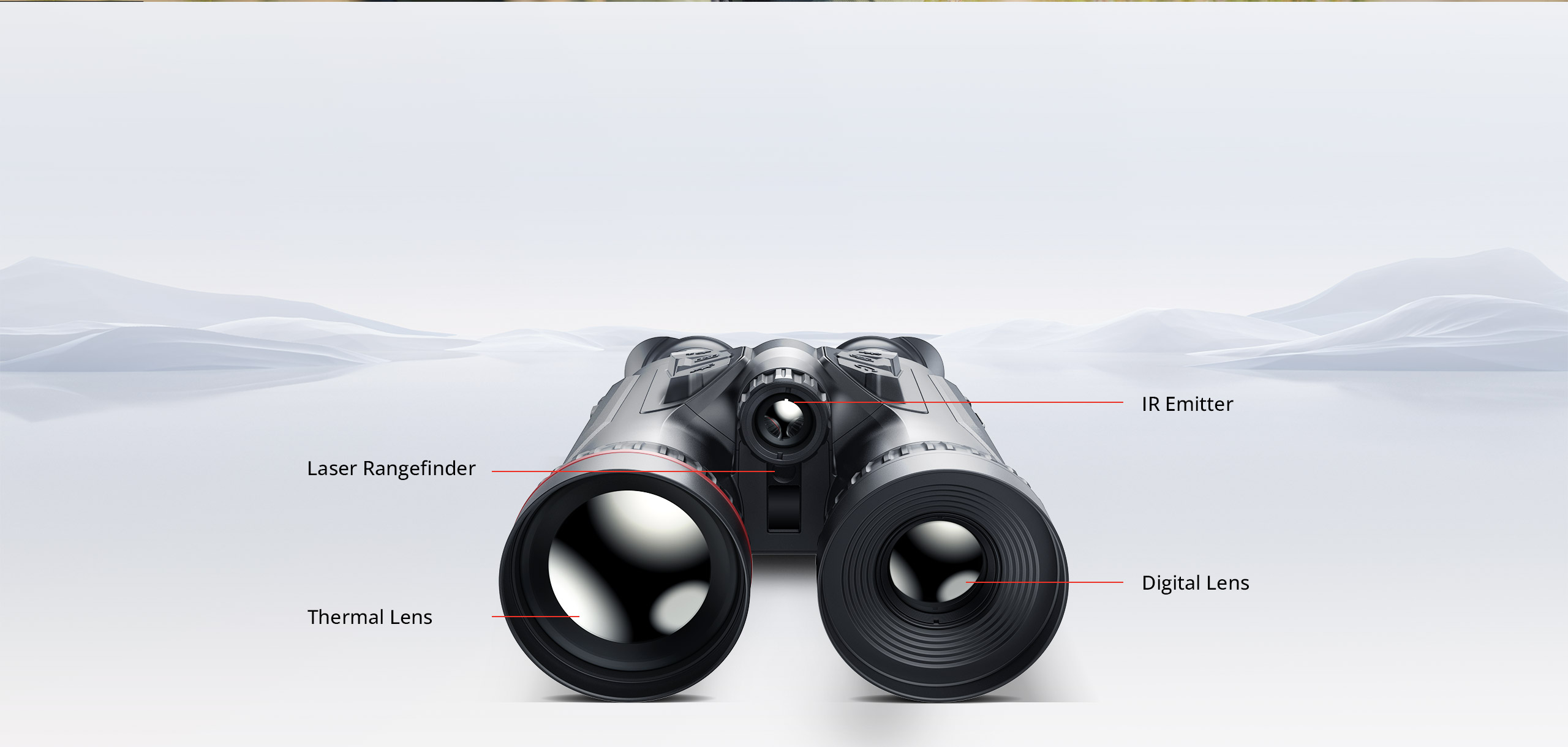

Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
Class 1 |
Wavelength |
905nm |
905nm |
Max. Measuring Range |
1000m |
1000m |
Measurement Accuracy |
±1m |
±1m |
Min. Measuring Range |
10m |
10m |
