HIKMICRO HABROK PRO HX60L / HX60LN

Views: 270

Description

We proudly present the crowning thermal and digital binocular HX60L & HX60LN. With high-end 1280×1024 thermal detector, powerful 60 mm F1.0 lens and impressive 7.7x magnification, HX60L and HX60LN deliver unrivaled images with all details. The ergonomic all-in-one design combining cameras, LRF and IR emitter covers every scenario at once.

Specification

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays VOx Uncooled Focal Plane Arrays
Max. Resolution 1280 x 1024 1280 x 1024
Frame Rate 25Hz 25Hz
Pixel Interval 12μm 12μm
Response Waveband 8μm to 14μm 8μm to 14μm
NETD Less than 18 mK (@25°C),F#=1.0 Less than 18 mK (@25°C),F#=1.0
Lens (Focal Length) 60mm, F1.0 60mm, F1.0

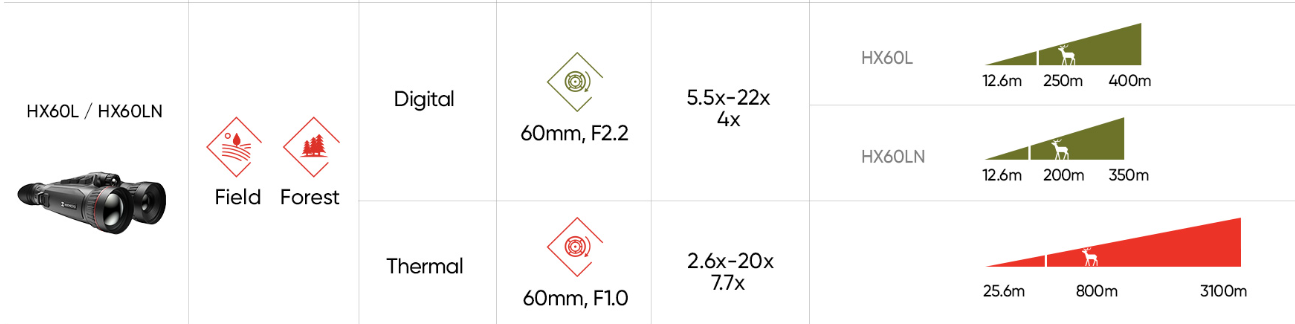

Detection Range 3100m 3100m
Focus Mode Focus Ring Focus Ring
Field of View(H × V), Degrees / m @100m 14.6° × 8.8° / 25.6m x 15.4m 14.6° × 8.8° / 25.6m x 15.4m
Min. Focusing Distance 3m 3m
Magnification 2.6x-20.0x (7.7x) 2.6x-20.0x (7.7x)
Optical Module
Image Sensor 1/1.8” Progressive Scan CMOS 1/1.8” Progressive Scan CMOS
Max. Resolution 3840 x 2160 3840 x 2160
Field of View (H × V), Degrees/m @100 m 7.3° x 4.1° / 12.6m × 7.2m 7.3° x 4.1° / 12.6m × 7.2m
Focal Length 60mm, F2.2 60mm, F2.2
Min. Working Distance 3m 3m
IR Illuminator Wavelength 850nm 940nm
Viewing Range at Night 400m 350m
Magnification 5.5x – 22.0x(4x) 5.5x – 22.0x(4x)
Focus Mode Focus Ring Focus Ring
Smart IR Yes Yes
Replaceable IR Illuminator Yes Yes
Image Display
Display 0.49 inch, OLED, 1920 ×1080 0.49 inch, OLED, 1920 ×1080
Contrast Adjustment Yes Yes
Brightness Adjustment Yes Yes
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode Auto, Manual, External Correction Auto, Manual, External Correction
Exit Pupil 8mm 8mm
Eye Relief 15mm 15mm
Diopter (Range) -5D~+3D -5D~+3D
Tone Adjustment Cold, warm Cold, warm
Zoom Pro No No
Image Pro 2.0 Yes Yes
General
Protection Level IP67 IP67
Weight 1050g with battery pack 1050g with battery pack
Dimension 152.8mm × 81.95 mm × 231.5 mm (6.0″ × 3.2″ × 9.1″) 152.8mm × 81.95 mm × 231.5 mm (6.0″ × 3.2″ × 9.1″)
Working Temperature -30℃ ~ +55℃ -30℃ ~ +55℃
Interpupillary Adjustment Range 60 mm to 74 mm 60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC 1/4“-20-UNC
System
Record Video Yes Yes
Capture Snapshot Yes Yes
Hotspot Yes Yes
GPS Yes Yes
Digital Magnetic Compass Yes Yes
Standby Mode Yes Yes
Storage Built-in EMMC (64 GB) Built-in EMMC (64 GB)
PIP Yes Yes
Hot Track Yes Yes
Audio Recording Yes Yes
Local Album Yes Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery Pack Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time 9.5h (25 °C, with hotspot off, LRF on) 9.5h (25 °C, with hotspot off, LRF on)
Type-C Power Supply 5V/9V DC, 3A Support External Power Supply, Support Direct Charging 5V/9V DC, 3A Support External Power Supply, Support Direct Charging
Laser Rangefinder
Safety Class for Laser Class 1 Class 1
Wavelength 905nm 905nm
Max. Measuring Range 1000m 1000m
Measurement Accuracy ±1m ±1m
Min. Measuring Range 10m 10m

Key Feature

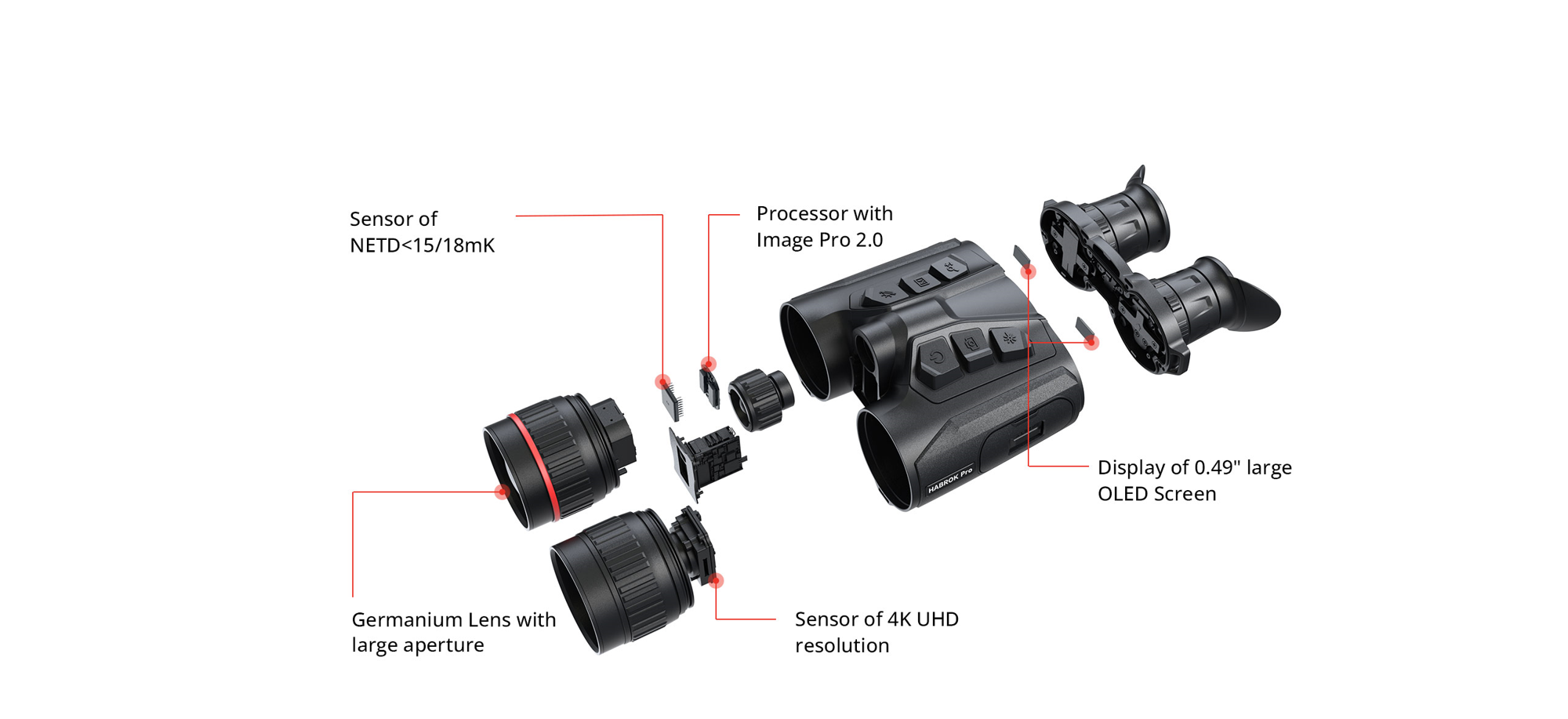

High-End 1280 Thermal Detector,
Ultra Clear Image with Impressive Details
Inheriting the high-end 1280×1024 thermal detector and powerful 60mm F1.0 lens, HIKMICRO Multi-Spectrum HABROK Pro HX60L(N) is the next step for professional hunters, unlocking an unrivaled flagship imaging of both game and surroundings without details missing.
NETD<15mK, Extremely High Thermal Sensitivity
Higher thermal sensitivity, easier identification and recognition. Be it rainy, foggy, or in total darkness. With HABROK Pro’s next-level NETD value, the gender and behavioral peculiarities of animals are well-visible and distinguishable.

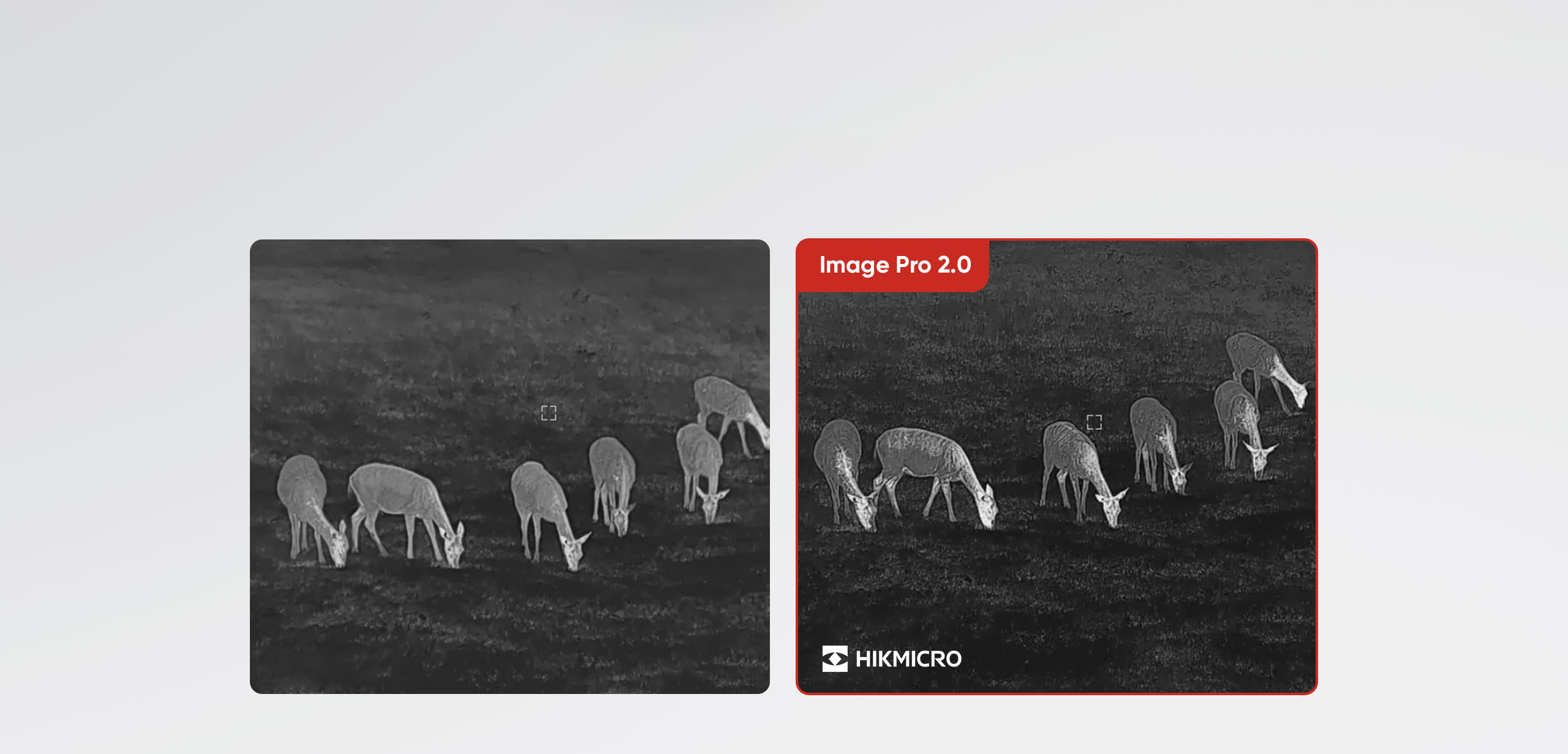

Innovative Image Pro 2.0 Algorithm Brings Stunning Images
The upgraded Image Pro 2.0 algorithm in HIKMICRO HABROK Pro features optimized details, a more layered background, and less noise, offering a more accurate and meticulous portrayal for hunters to make decisions.
Unbeatable Low-Light Performance with 4K UHD Detector
The Full-Color 4K UHD detector with a 60mm lens of HABROK Pro brings crystal clarity during the daytime, even at twilight. This thermal and digital binocular can deliver the highest level of detail and reproduce colors with natural fidelity.

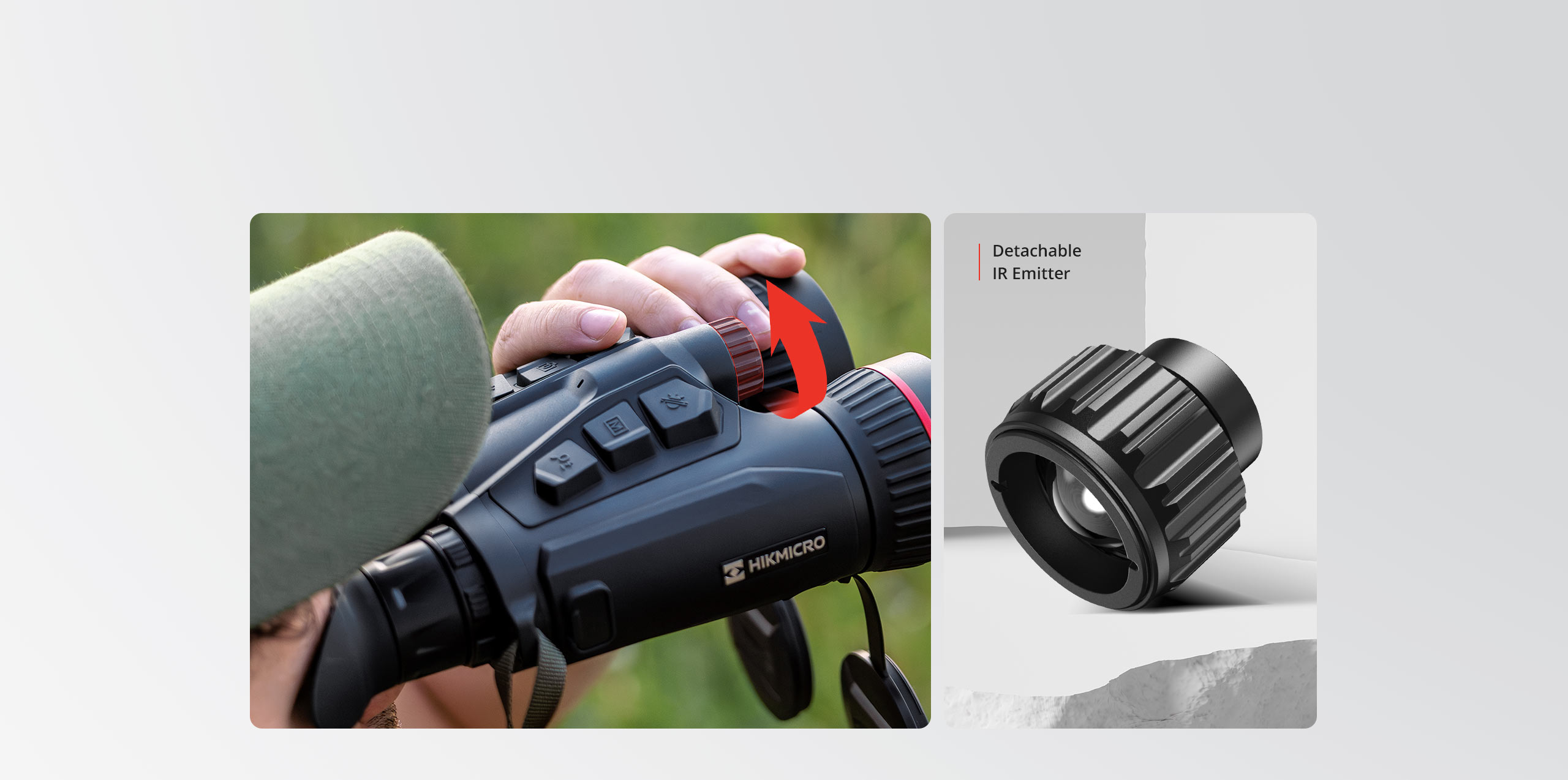

Detachable IR Emitter, Superior Clarity and Excellent Flexibility
The IR emitter (optional 850nm or 940nm) brings classic black/white images at night. With adjustable beam angle, HIKMICRO HABROK Pro can help see extra miles with superior clarity in a desired area. In addition, users can replace the detachable IR emitter according to their own hunting needs.
Hassle-Free Viewing with Image Stabilization Algorithm (Available in Dec.)
By minimizing unwanted movements and vibrations, the revolutionary Image Stabilization Algorithm ensures HABROK Pro presents steady images and avoids dazzling or blurring your vision, especially in low-light conditions. Just zoom in and immerse yourself in rich image details.

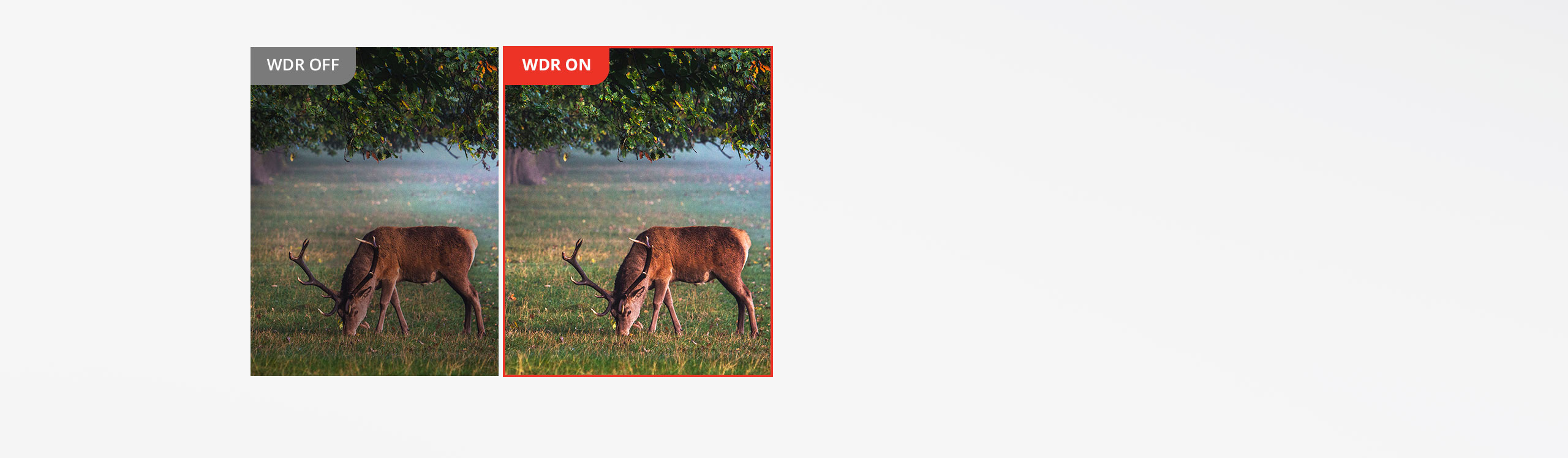

New WDR Technology, Suit Every Light Condition
Different light conditions require different device settings. HIKMICRO HABROK Pro has three pre-programmed image styles: Daylight, Twilight and Night Light, to ensure a comfortable level of brightness and contrast during hunting because of the new WDR (Wide Dynamic Range) technology. Users can spend more time observing rather than making settings.

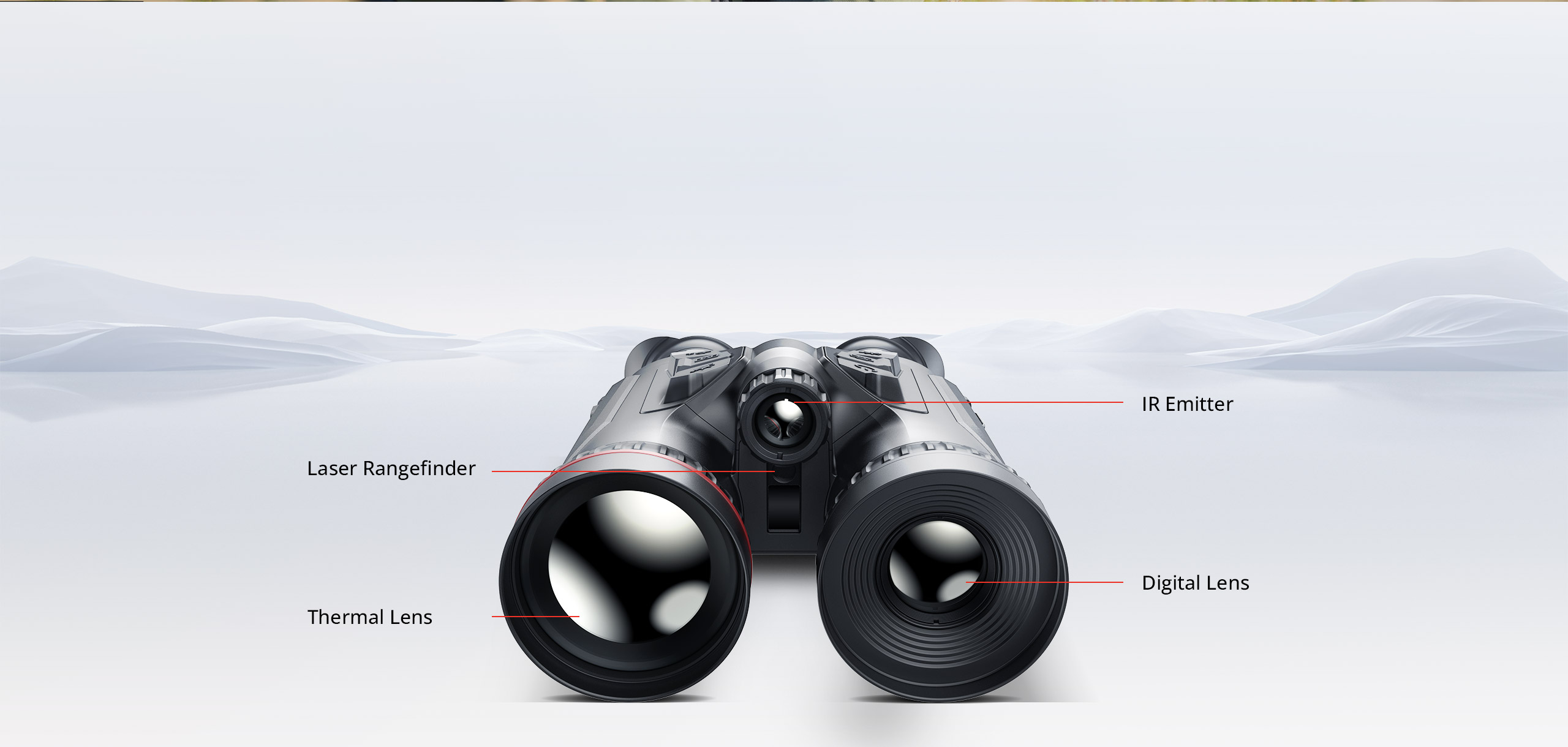

All in One, Done at Once
With the combination of a thermal camera, a digital day & night camera, an IR Emitter, and a Laser Rangefinder with a detection range of up to 1,000m @ ±1m accuracy, the multi-spectrum HABROK Pro is built for all day and night games, solving your searching, observing, identifying, and distance measuring needs at once.
Smart Standby for Extended 7h Battery Life
HIKMICRO HABROK Pro comes with 7h continuous operation by the new replaceable and rechargeable high-capacity battery pack (tested at -20℃ and with LRF on). The battery life is extended further by activating the smart standby function.

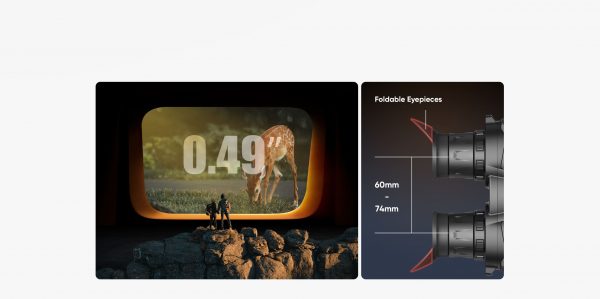

An Immersive and Comfortable Observation
The large field of view with abundant details allows you to experience hunting as never before – and immerse yourself in the moment by HABROK Pro’s 0.49’’ 1920×1080 large OLED screen.
The adjustable interpupillary distance and foldable eyepieces offer the comfort just right.

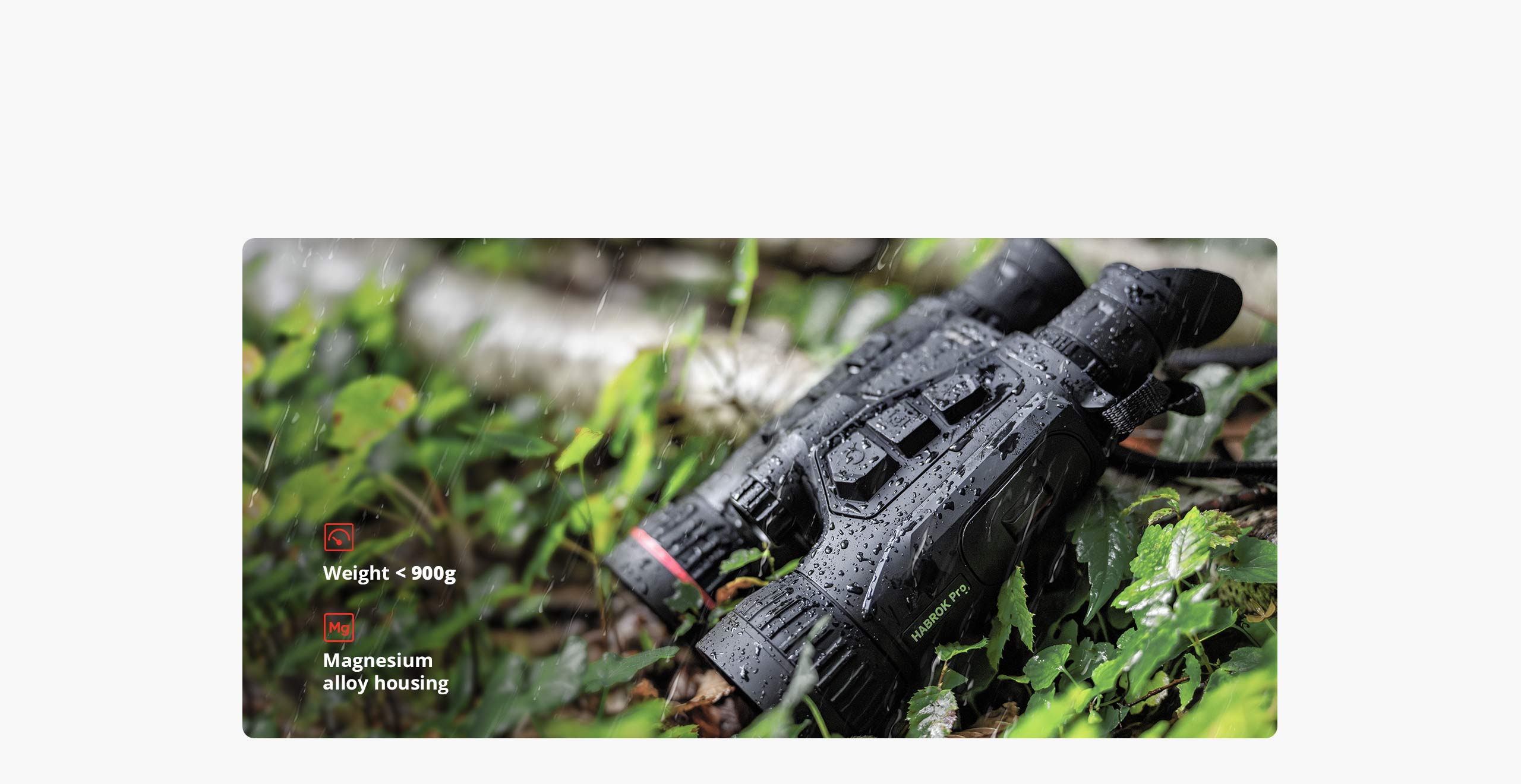

Compact, Lightweight And Robust
Ergonomic Design weighing less than 900g guarantees relaxed viewing, even for longer periods.
Robust magnesium alloy housing design for better durability, allowing the thermal and digital binocular HABROK Pro to stand up to harsh.
Well-Designed Binocular Harness for Maximum Protection
The binocular harness provides optimum protection for your binoculars and is exceptionally comfortable. Whether you’re stalking, crawling, or squatting, the harness holds the HABROK Pro firmly to your chest. You can grab your binoculars whenever you need them.
