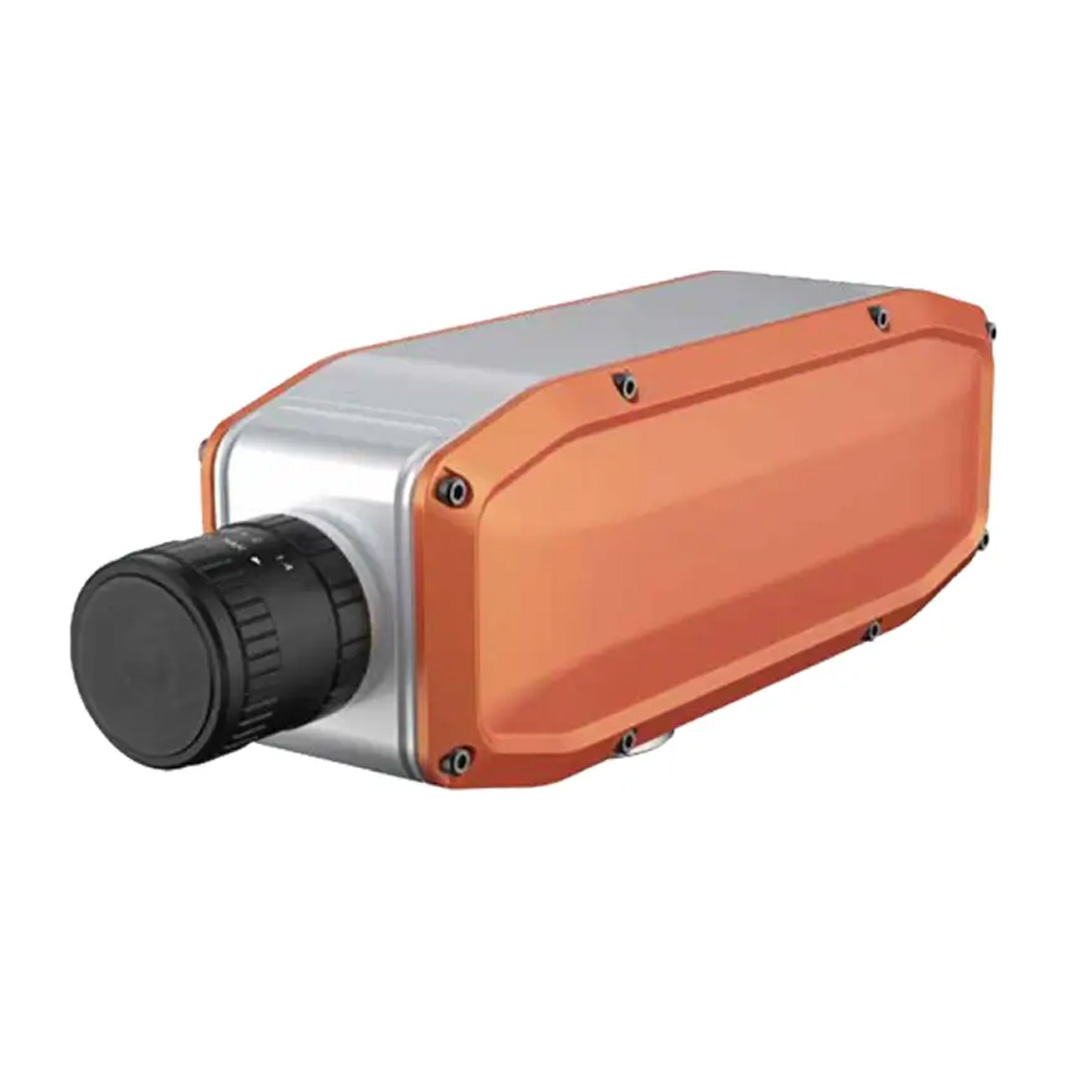

Hyperspectral Camera FS1X Series (Line Scan)

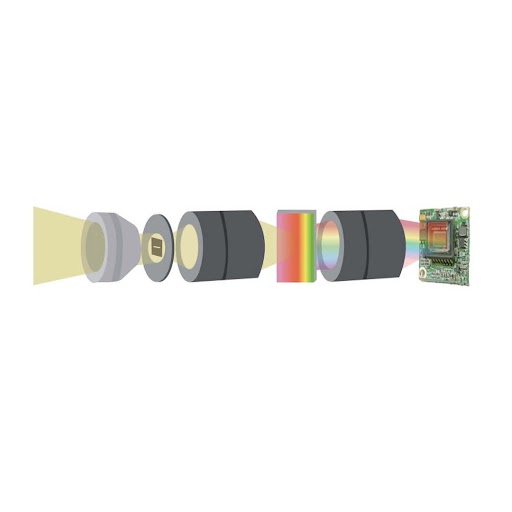

Description

Visible spectrum/NIR：

Spectral range: 400-1000nm, wavelength resolution better than 2.5nm, up to 1200 spectral channels.
Acquisition speed: up to 128FPS across the whole spectrum, up to 3300Hz after band selection (support multi-region band selection)

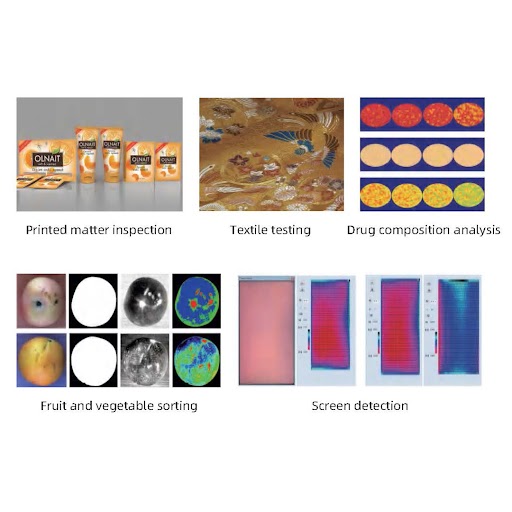

Widely used in printing, textile and other industrial products surface color, texture detection. The repeatability of color measurement single pixel is up to dE* AB <0.1

SW-NIR：

Spectral range: 900-1700nm, wavelength resolution better than 8nm, up to 254 spectral channels
Acquisition speed: up to 200FPS across the whole spectrum
Widely used in composition identification, material identification, machine vision, agricultural product quality and other fields

Specifications

Specification	FS-10	FS-12	FS-13	FS-15
Spectral Range	400-700 nm	400-1000 nm	400-1000 nm	900-1700 nm
Spectral Band	600	1200	1200	254
Spectral FWHM	2.5 nm	2.5 nm	2.5 nm	8 nm
Slit Width	25 µm	25 µm	25 µm	25 µm
Transmission Efficiency	>50%	>60%	>60%	>60%
Stray Light	<0.5%	<0.5%	<0.5%	<0.5%
Spatial Sampling	1920 px	1920 px	1920 px	320 px
Pixel Size	5.86 µm	5.86 µm	5.86 µm	30 µm
Imaging Speed	Full band 41 Hz	Full band 41 Hz	Full band 128 Hz	200 Hz
Sensor	CMOS	CMOS	CMOS	InGaAs
SNR (Peak)	500/1	600/1	600/1	600/1
Camera Output	USB 3.0	USB 3.0	USB 3.0	Gigabit network
Camera Interface	C-Mount	C-Mount	C-Mount	C-Mount
Accessories	USB 3.0 transmission line	USB 3.0 transmission line	USB 3.0 transmission line	USB 3.0 transmission line
ROI	Single area	Single area	Multiple area	Single area
Power Dissipation	5W	5W	5W	5W
Dimensions (L x W x H)	22.8 cm x 7 cm x 8.6 cm	22.8 cm x 7 cm x 8.6 cm	22.8 cm x 7 cm x 8.6 cm	31.3 cm x 8.7 cm x 9.6 cm
Weight	1250 g	1250 g	1250 g	2630 g

Applications

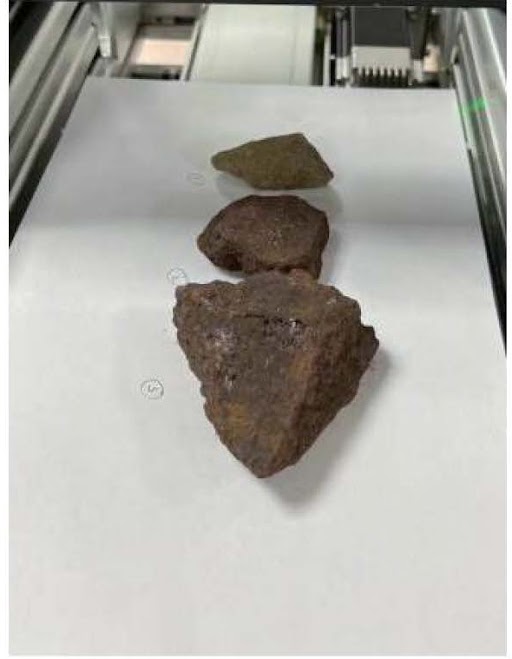

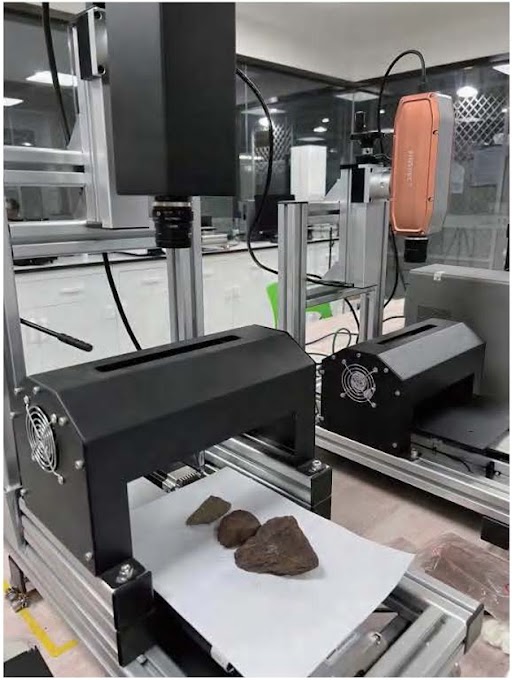

FS-13 Test Bench ore detection

Using the FS-13 model and an indoor test bench, we tested coke, hematite, and iron ore. We analyzed the ores’ wavelength characteristics within the 400-1000nm spectral range. Each ore type showed distinct waveform shapes and unique spectral characteristics. These findings will aid in ore classification and compositional analysis in future applications.

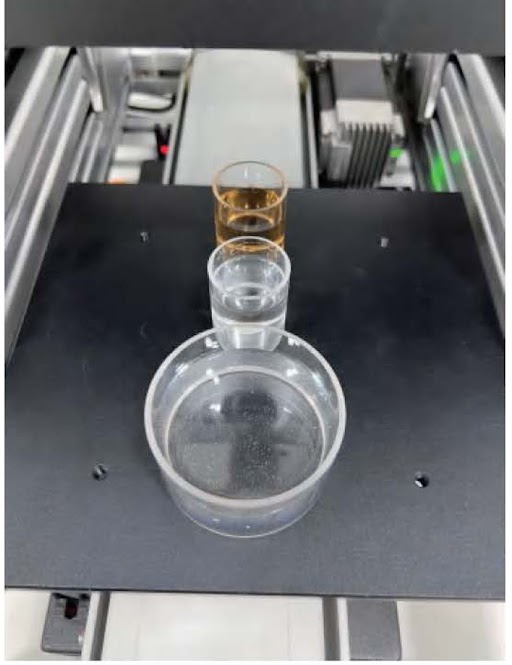

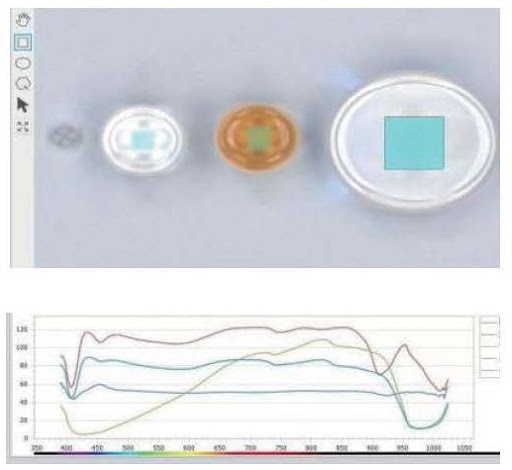

FS-13 Liquid Identification

Using the FS-13, we identified liquid components. The test results showed that the spectral lines of water and alcohol between 400-700nm were largely similar, but in the near-infrared band, alcohol exhibited a distinct peak at 930nm.identification.

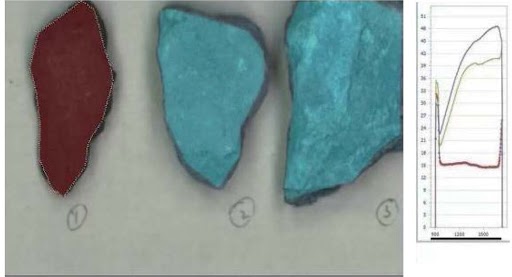

FS-15 Ore Classification

Using the FS-15, we identified three different ore types. The spectral curves varied for each ore, allowing us to perform cluster analysis and deep learning for rapid identification and classification of different ores.

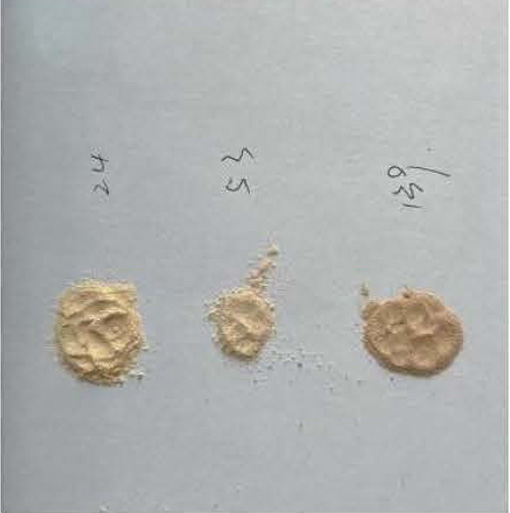

FS-15 Gastrodia elata powder test

Using the FS-15, we analyzed different concentrations of Gastrodia powder and Gastrodia solution concentrations. The test results showed that different concentrations of Gastrodia powder exhibited distinct peak values around 1450-1600nm, allowing for clear differentiation between various concentration levels.
