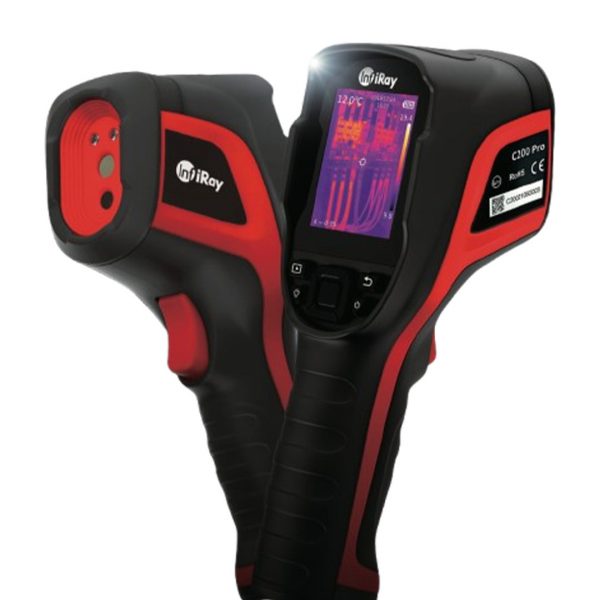

Handheld Thermal Camera C200Pro

InfiRay Tianshu C200 Pro is a handheld thermal camera with an upgraded thermographic detector. Operating efficiency is upgraded: InfiRay self-developed high-performance 12μm infrared detector, 256×192 high resolution, and 0.04℃ temperature resolution are C200 Pro’s “trump cards” to provide infrared thermal images of rich details and accurate temperature measurement. With pro-grade 2,000,000-pixel visible light and low lag, it can meet professional work requirements easily. What’s more, it features timed photographing, 15h long battery life, plug-and-analyze through USB. Tianshu C200 Pro, powerful upgrade of the detector.

Additional information

Model

RH50L, RH50LN, RQ50L, RQ50LN

Description

1. Powerful Upgraded Detector

  • Pro-grade high-performance infrared detector
    With pro-grade 256×192 resolution, thermal sensor,2m Visual camera and pro-grade low lag, it can meet professional requirements easily. Matrix III intelligent image algorithm optimizes the short-distance imaging. With 56 ° wide FOV, it provides efficient short-distance details observation, to get clear thermal images with rich details.
  • Pro-grade built-in thermal imaging functions
    For professional users, Interval Snapshot and automatic alarm snapshot function were added; the number of photos to take and the time interval can be set, and meanwhile, the automatic alarm and snapshot can be set. To automatic record and trace of abnormal temperature, real-time record of equipment status separated from PC, target temperature trend, ultra-long battery life, external power supply, and quick deployment.
  • Pro-grade easy-to-use thermal imager
    Industry leading 15h battery life, increased by 36% compared with the last generation. IP54 waterproof and dustproof and 2m drop protection make it easier to use: even in a complicated environment, it can still provide crisp and clear thermal images.
  • Pro-grade software support
    For professional users, the analysis function has been greatly upgraded: support plug-and-analyze through USB on PC. It supports not only real-time screen projection and offline image analysis but also full-frame real-time point/line/area temperature analysis. One-click report generation, helping professional users output infrared inspection results and work efficiently

2. Professional

  • 0.04°C temperature resolution and ±2°C measurement accuracy
    With its ultra accuracy & NETD performance, C200 Pro can easily fit in your high-accuracy inspection tasks, such as material defect detection and precise component testing.
  • -20°C – +550°C wide measurement range
    Meet the demands to inspect different industrial temperature targets. C200 Pro can meet all the requirements such as building HVAC and vehicle maintenance.
  • 4 modes +7 palettes
    4 popular modes with 7 palettes provide plenty combinations of on-device thermal image display, to support various complicated observation tasks of professionals.
  • Focus-free design and 56° wide FOV
    The focus-free lens, 56 ° wide FOV, and 256×192 high resolution ensure that the area you cannot approach can be inspected at a safe distance, and meanwhile to get crisp thermal images with rich details.

3. Solid · Reliable

  • Continue the famous design appearance
    Inherited from the last generation, the camera trigger has a perfect radius with a non-slip better touch. The boxing glove appearance and lower gravity center makes it so handy & comfortable to hold in your daily use.
  • IP54 +2m-drop protection
    It has IP54 waterproof and dustproof performance. With drop protection, even if it falls from 2m height, it still can provide clear thermal images.
  • Handheld or Fixed
    Besides handheld operation, it also has a 1/4 common threaded at the bottom, via which it can be fixed on a tripod for operation. With upgraded Real-time USB Radiometric transfer function & InfiRay’s professional software,C200 Pro can perform even more complicated temperature Analysis & monitoring tasks.

Specification

Model C200Pro
Detector type Uncooled VOx IRFPA
IR resolution 256×192
Pixel pitch 12μm
Thermal sensitivity <40mK
Focal length 3.2mm
FOV 56°×42°
IFOV 3.8mrad
Focus mode Focus free
Measurement function Center spot/Max./Min./3 Self-defined spots
Temperature measurement range -20~150℃,100~550℃
Measurement accuracy ±2% or ±2°
Temperature measurement unit Celsius, Fahrenheit, Kelvin
Emissivity settings Variable from 0.01 to 1.0
Image mode Thermal, dual-spectrum fusion, visible light, PIP
Color palettes White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC, Black red.
Temperature alarm Above alarm / Below alarm in full frame
Alarm type Image alarm and LED alarm
Image data Image and temperature data (self-defined format)
Language English, Japanese, Polish, Russian, Korean, Hungarian, Brazilian Portuguese, German, French, Spanish, Italian, Turkish, Traditional Chinese
Video transmission Support real-time USB video preview and temperature analysis
PC analysis software Support
Illuminator LED supplement illuminator
Screen size 2.8″ LCD (320×240)
Memory card 16GB MicroSD card
Battery type Rechargeable Li-ion battery
Power interface USB Type-C
Boot time 30 seconds
Charging Time About 4 hours (shutdown)
Operating Time 15 hours
Power Management Variable (Auto off, 5min, 10 min, 20 min)
Tripod Mounting Hole Support
Operating Temperature Range -10~+50°C
Storage Temperature Range -20~+60°C
RH 10% ~ 95%, no condensation
Encapsulation/Drop IP54, withstands a drop from 2m
Camera Dimension (L×W×H) 237×75×92mm
Weight 520g
Accessories USB cable, 16GB SD card, user documentation, portable bag, certificate of qualification, Calibration Certificate
