Infiray G600 Series

Description

Tianjin G600

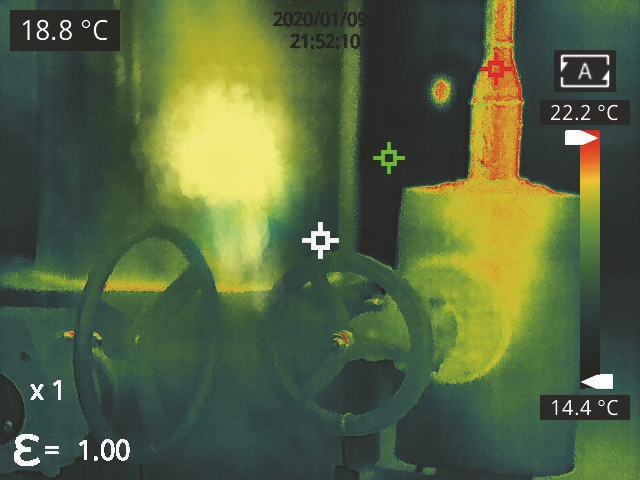

Gas leakage during industrial production has long been a knotty problem. It is also time-consuming, and laborious for routine inspection because it is invisible to the naked eye. InfiRay G600 Series HD Uncooled Infrared Camera For Gas Detection can quickly locate gas leakage of natural gas (CH4), refrigerant (Freon), ammonia (NH3), and sulfur hexafluoride (SF6) in the form of non-contact thermal imaging.

1. HD band-pass infrared detector for clearer gas detection

• Custom band-pass filter detector (C: 7.0-8.5 μm, F: central wavelength 10.55 μm), eliminating stray light interference for clearer gas detection.
• Thermal sensitivity close to cooled detectors: as low as 23 mK to capture more trace gas.
• 640×512 infrared resolution, with clear image details.
• 23° custom lens, with a spatial resolution (IFOV) as low as 0.63 mrad, providing wider working distances or finer gas details.

2. Various types of gases detectable

• Selective infrared band, making it possible to detect dozens of gases including methane, sulfur hexafluoride, ethylene, ammonia, Freon, nitric oxide, and sulfur dioxide.

3. Versatile and easy to complete multiple tasks

• Temperature measurement accurate to ±2%, easy for gas leakage detection and temperature measurement.

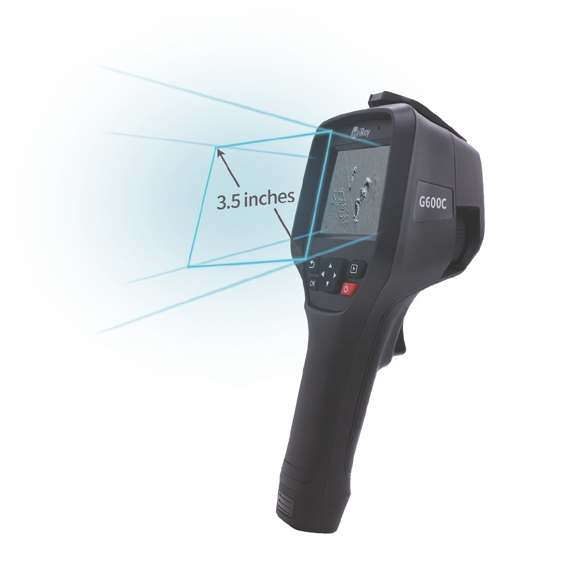

• 3.5-inch touch screen + integrity analysis function: a complete package of assistance from routine inspection site to report output, helping you complete tasks easily.
• 670g only, more convenient for routine inspection.

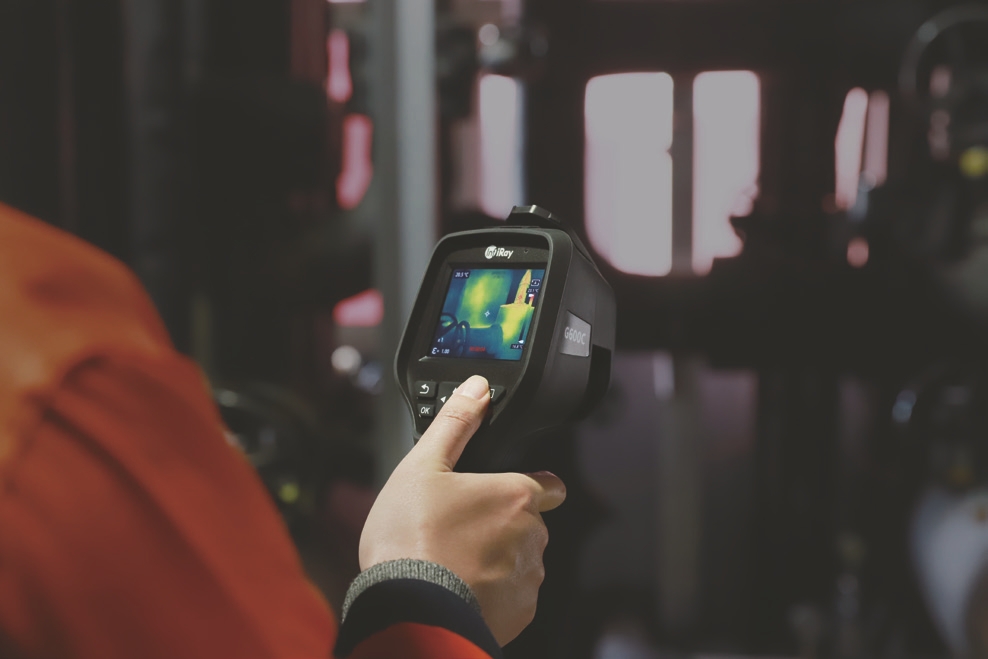

• Combined use of infrared light and visible light, making it easier to locate gas leakages.

4. IIC T4 explosion-proof, suitable for dangerous occasions

• With Ex ic Ⅱ C T4 explosion-proof grade, G600 can be used safely in petroleum, petrochemical, natural gas, and other industries.
