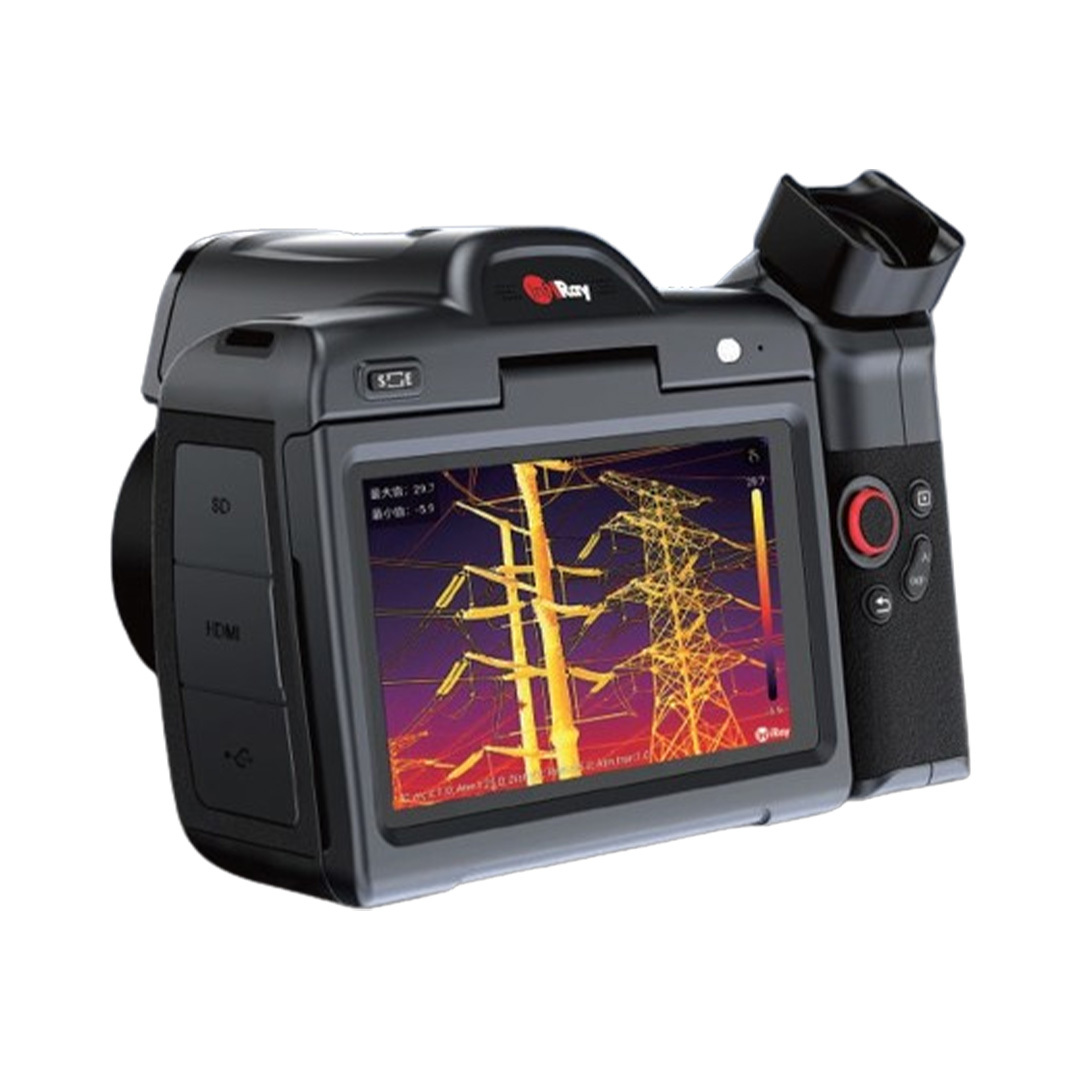

Infiray S1280 Handheld Thermal Imager
Views: 3788
$0.00
Affordable, High-Performance and Quality, Handheld Thermal Imager. Megapixel Thermal Camera
Description
Alkaid S1280, the flagship thermal camera, combined with VOx infrared detector independently developed
by InfiRay, is our first 1280 × 1024 high-performance and portable infrared thermal camera. Matrix IV image algorithm and AI-temp intelligent temperature measuring algorithm are adopted by the Alkaid S1280 to output clearer infrared images and more precise temperature measurement. A dedicated customized operating system, intelligent applications & miscellaneous functions, and a 5.5-inch angle-adjustable display and rotatable handle bring a better experience meeting the ergonomics requirements.
17,681 total views, 1 views today
Specification
17,682 total views, 2 views today
Features
High resolution display with higher image quality
InfiRay® new-generation ceramic package process with a smaller detector and lower power consumption;
With a resolution of 1280 × 1024 and visible temperature distribution details;
Multispectral fusion AI detail enhancement technology provides infrared heat maps of up to 2560 × 2048, enabling more detailed analysis of smaller or farther objects.
More accurate temperature measurement and wider temperature measurement range
Thermal sensitivity (NETD) up to 25mK, measurement accuracy of ±1% with more accurate temperature measurement;
Native 800°C can be extended to a wide temperature measurement range of 1,500°C, compliant with the most stringent
requirements of scientific research, materials, metallurgy, and other industries;
Automatic range switching simplifies the operation for customers in scenarios with rapid temperature changes.
Rich lens with accurate focusing and clear observation
Spatial resolution (IF OV) of 0.17mr ad (lens 12 ° ), allo wing users to see tinier image details;
Iris diaphragm integrated lens, without the requirement of buying the additional high-temperature lens, can support temperature measurement of 1500℃, saving user cost and improving operation efficiency;
Full coverage of focal length with FOV of 45°, 25°, and 12°; macro lens minimum to 25μm, suitable for observation regardless of distance and size, meeting the requirements of various industries such as power and scientific research;
Focusing mode: Laser focus, auto focus, continuous auto focus, manual focus, and more are supported t o maintain clear images for users during usage.
AI empowerment to achieve expert-level efficient workflow
30Hz frame rate supports lossless compression of 16bit, meeting the needs of users for high frame rate and full-function secondary video analysis;
35 analysis areas setting and 5 preset templates, convenient for users to analyze more temperature details on the display;
Programmable buttons & intelligent workflow programming & AI voice assistant, meeting customers’ personalized customization requirements;
With the built-in Android operating system, users can customize the User Interface (UI) or customize the development of application scenarios as needed.
Other considerate upgrades for easier operation

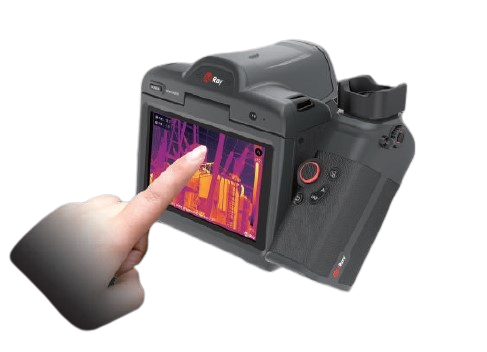

Wi-Fi wireless screen mirroring and radiation video stream + both PCs and mobile devices supported by FTP/HTTP, supporting data transmission in various ways for uses; 5.5-inch flippable touch screen + OLED viewfinder of 1920 × 1080 for clearer field observation for users; OTA upgrade, charging protocol of QC3.0/PD, and GPS, simplify user operation and improve user experience;
The gravity center of the lens is close to the gravity center of the device. No lens flip is required and only the screen flip is needed.
The gravity center is stable during the screen flip, comfortable to hold;

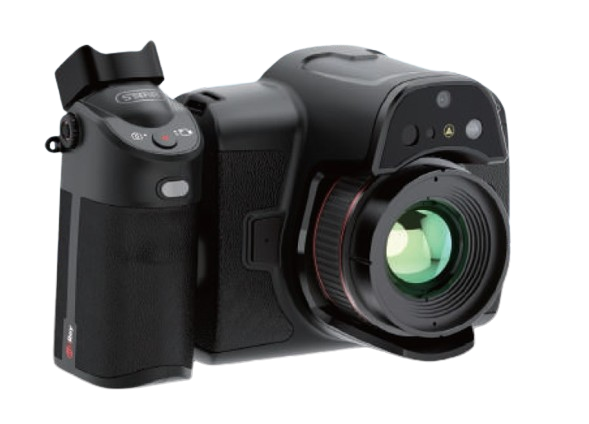

The classic shape of the SLR camera and the design of the fixed lens, with higher reliability and better meeting the ergonomics requirements.
