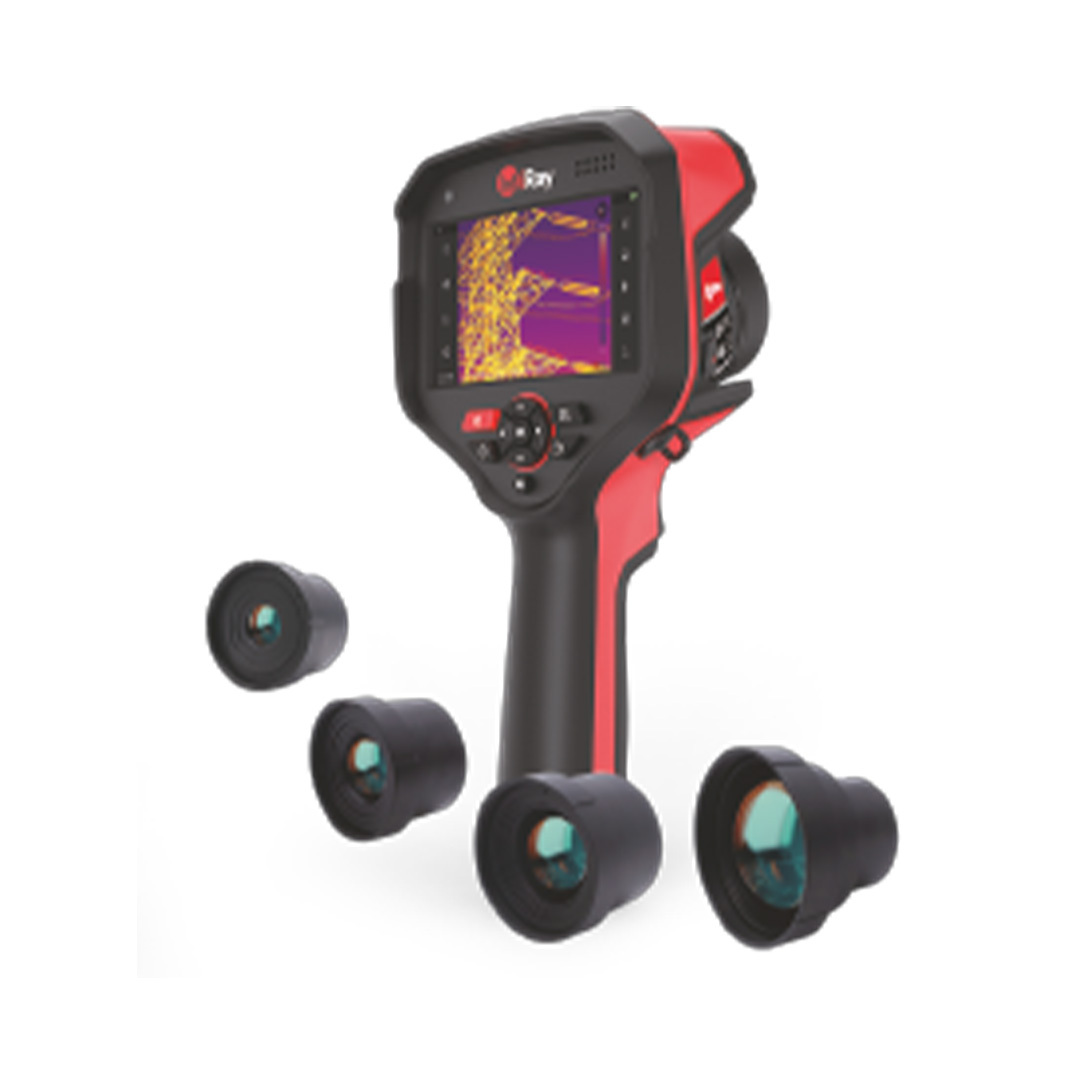

Expert-Level Thermal Camera T400/T630

The brand-new Kaiyang T400/T630 family is a new generation of industrial thermal cameras with replaceable auto-focus lenses
designed for expert users. Inheriting InfiRay’s excellence in thermal images, the new products are equipped with a new generation of detectors featuring the NETD as low as 35mk, enabling them to capture more subtle hotspots and display sharper and cleaner thermal maps. Besides, the products also embrace other analysis and intelligent functions such as trend analysis, area measurement, and 5-inch OLED touch displays. The new T series are a power tool for expert-level analysis in all scenarios

Additional information

Model

RH50L, RH50LN, RQ50L, RQ50LN

Description

1. HD display, accurate temperature measurement, and strong thermal imaging performance

  • HD resolution, clear picture quality
    Kaiyang T Series includes two models, T400 and T630, which are equipped with 12μm VOx uncooled infrared detectors developed by InfiRay. The resolution is 480× 360/640×512, supporting AI super-resolution to achieve a clearer presentation of smaller or more distant objects.
  • High thermal sensitivity detector, accurate temperature measurement
    The thermal sensitivity NETD is as low as 35mK, capable of distinguishing a temperature difference of 0.035℃, capturing even more subtle hot and cold spots.
  • AI-based new image algorithm
    Driven by a brand new CPU, the product uses Matrix IV—the fourth generation infrared image processing algorithm—to generate AI-based
    thermal images, making object details clearer and images cleaner.

2. Multi-lens options for fast, precise focusing

  • It offers multi-lens options and flexible adaptation to multiple scenarios; an integrated variable diaphragm lens supports 1500℃ temperature measurement without replacing the lens, saving user costs and being convenient and efficient

3. Functional upgrade, precision manufacturing

  • It supports up to 20 points/lines/areas and 5 preset modes, making it
    convenient for users to analyze more temperature details in real time.
  • It comes with a built-in laser rangefinder module, supporting laser range finding and area measurement. The 5-inch OLED touch display has a resolution of 1280×720  pixels, with Gorilla explosion-proof glass. The thermal image colors and levels are more vivid, and it supports Type-C direct charging.

4. Powerful intelligent analysis, efficient temperature measurement

  • The Android smart system provides system-level assurance for the expansion and customization of intelligent functions.
  • It supports intelligent routine inspection, enabling general task package import and
    editing, and standard and automatic naming of images.
  • Support custom isotherms: The upper and lower limits of the isotherm temperature or the full-frame threshold can be customized to highlight key temperature ranges or areas.

5. Professional software empowers your business

  • Professional thermal imaging analysis can be carried out through mobile apps, PC clients and other multi-platform software to realize advanced analysis of pictures/videos in online and offline modes, releasing hardware capabilities and empowering the business;

Specification

Specification

Video

Download

Expert-Level Thermal Camera T400/T630
