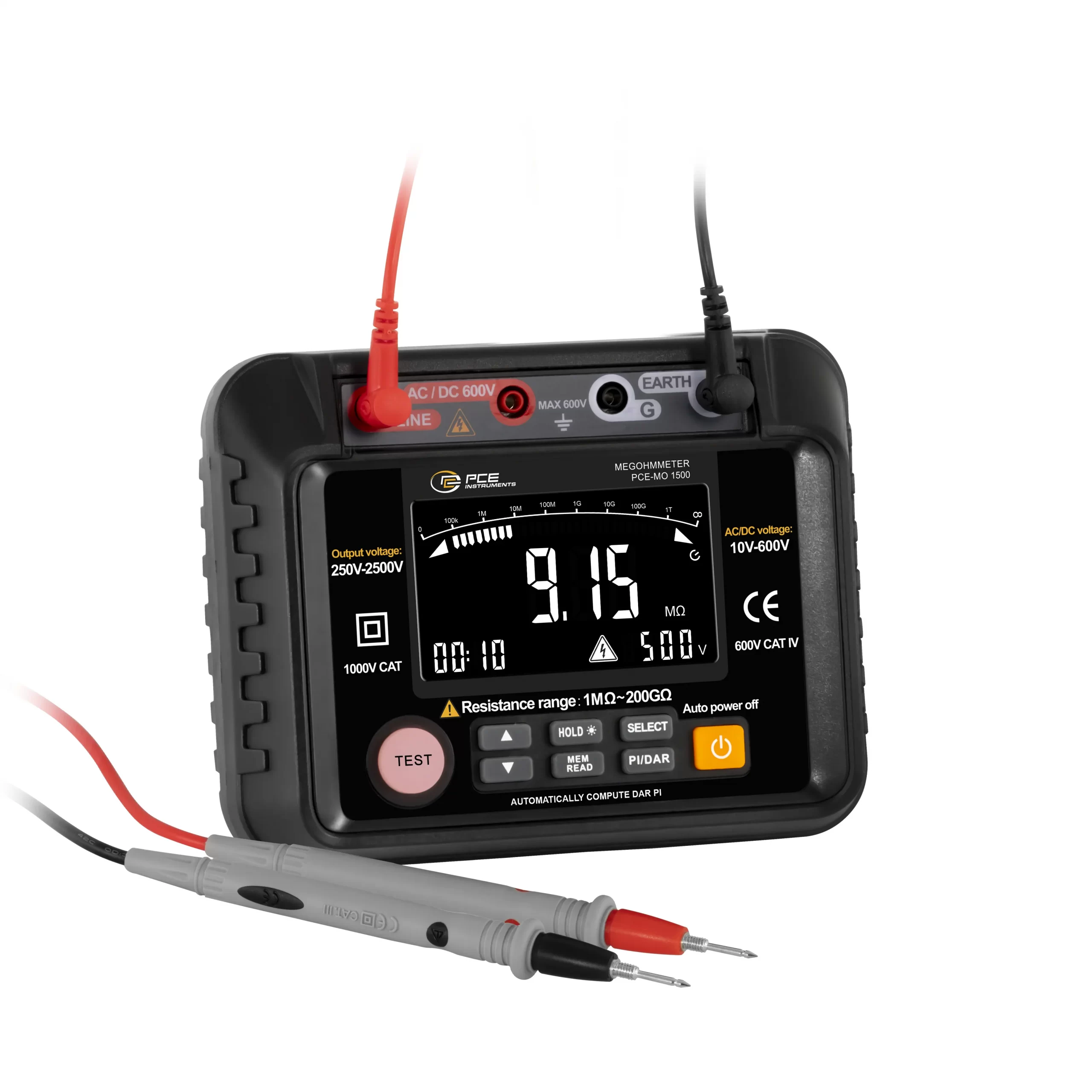

insulation meter PCE-MO 1500

The insulation tester was developed to simplify on-site troubleshooting in both industrial plants and solar systems. With selectable test voltages of 250 … 2500 V and resistance measurements of up to 200 GΩ, this device allows multiple work processes to be carried out with just one tool. The intuitive user interface, short-circuit current of up to 1.8 mA and safety in accordance with CAT IV 600 V make these portable high-voltage insulation testers ideal for fast and stable resistance measurements anywhere.

The test voltage can be variably selected at 250 V, 500 V, 1000 V, 2000 V and 2500 V. In addition, it can also measure AC and DC voltages of 10 … 600 V. The insulation tester has a memory for 100 data sets that can be called up via the LC display. In addition to the data hold function, the insulation meter offers the option of measuring the Polarization Index (PI) and the Dielectric Absorption Ratio (DAR). These functions are particularly useful for the condition monitoring and maintenance of electrical insulation, as they help to identify potential problems at an early stage and extend the service life of the equipment. A high voltage indicator ensures safety during operation and a low battery indicator indicates in good time that the battery needs to be changed.

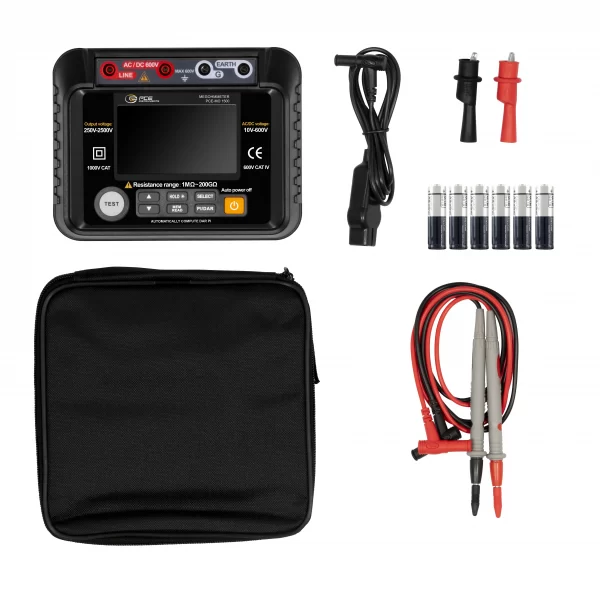

The device is particularly suitable for measuring insulation resistance on various electrical devices and insulating materials such as motors, cables, switches and other electrical components, making it ideal for maintenance, repair and testing work. With its modern design and stable performance, the device impresses in every respect. The insulation meter is supplied in a practical zipped bag for easy storage and convenient transport.
