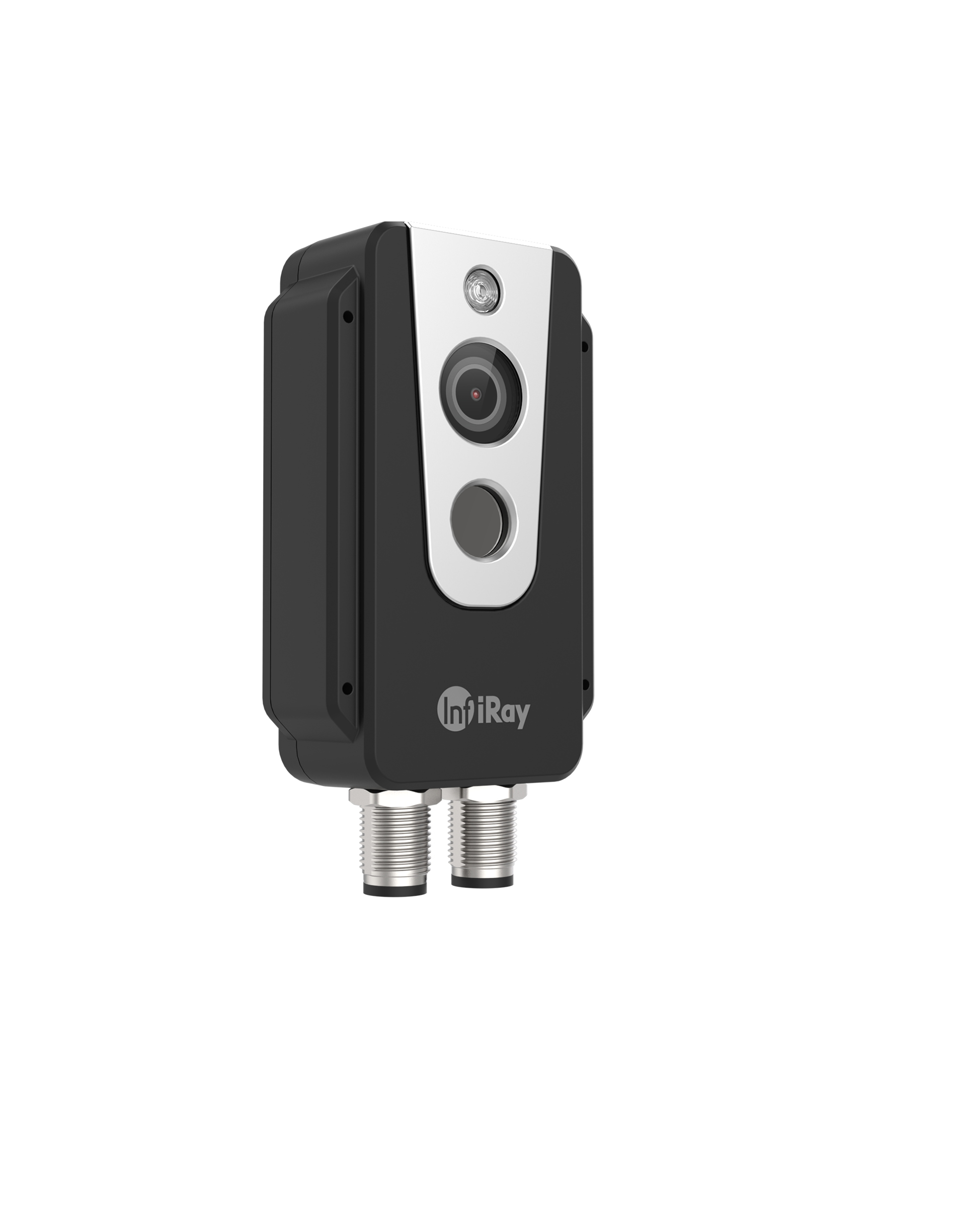

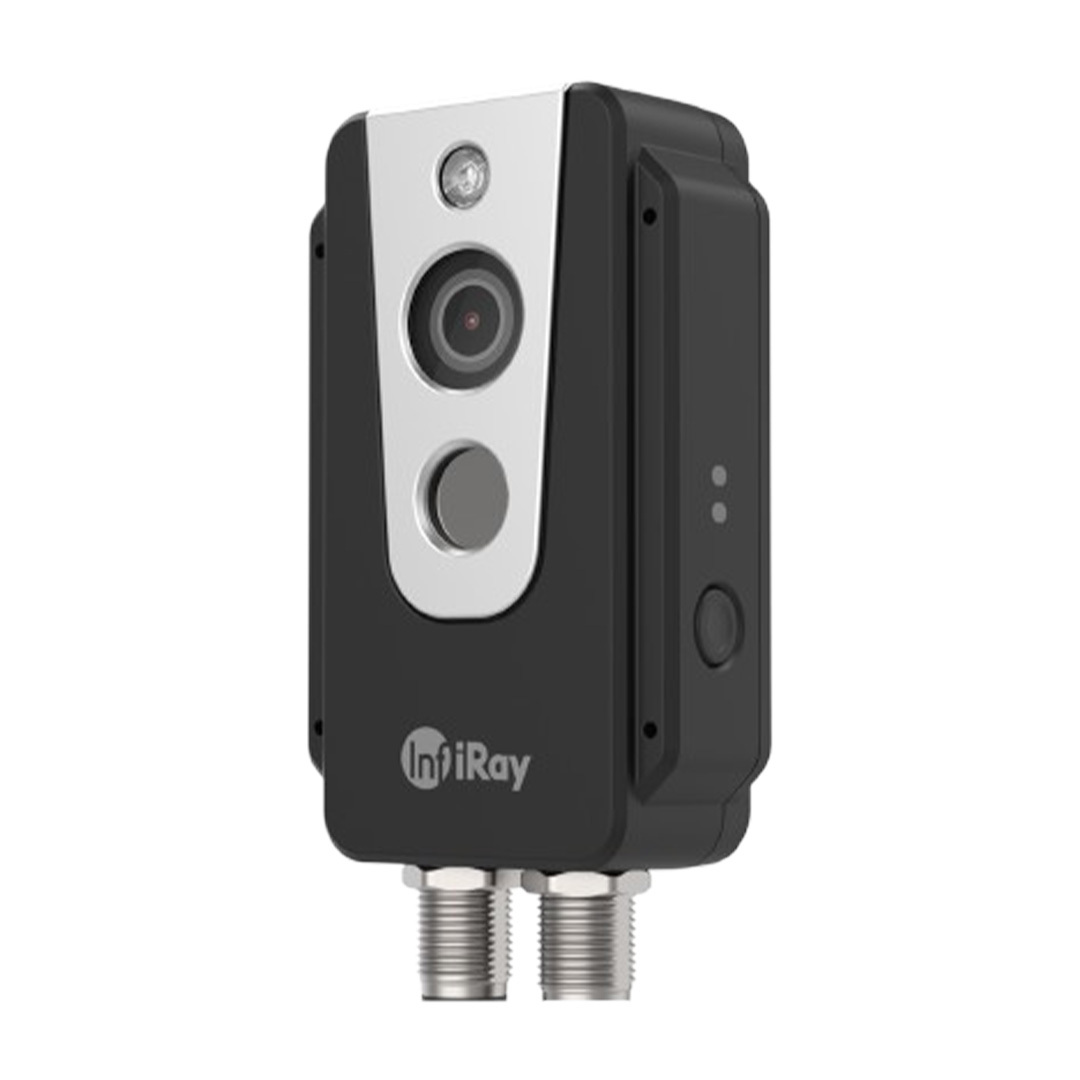

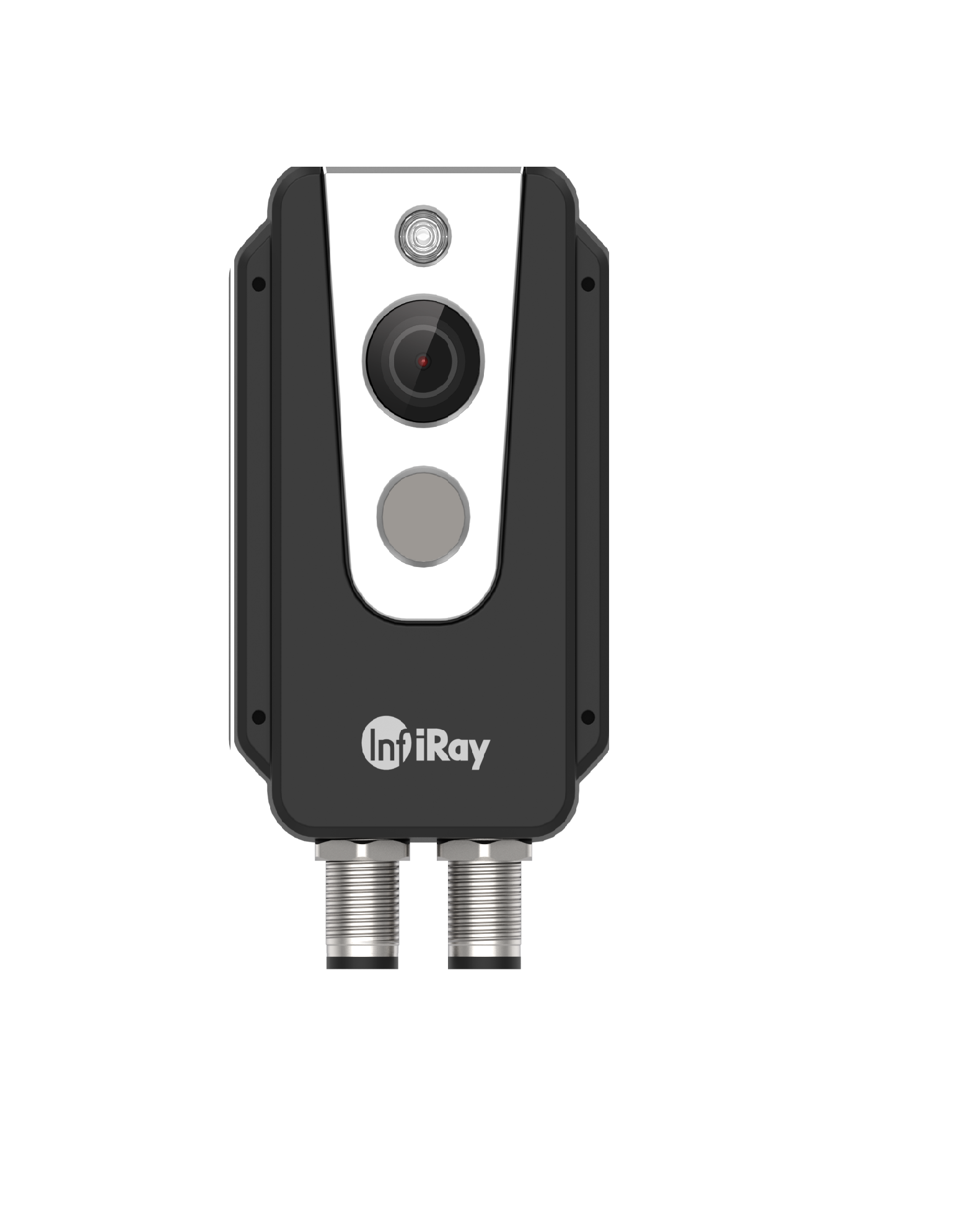

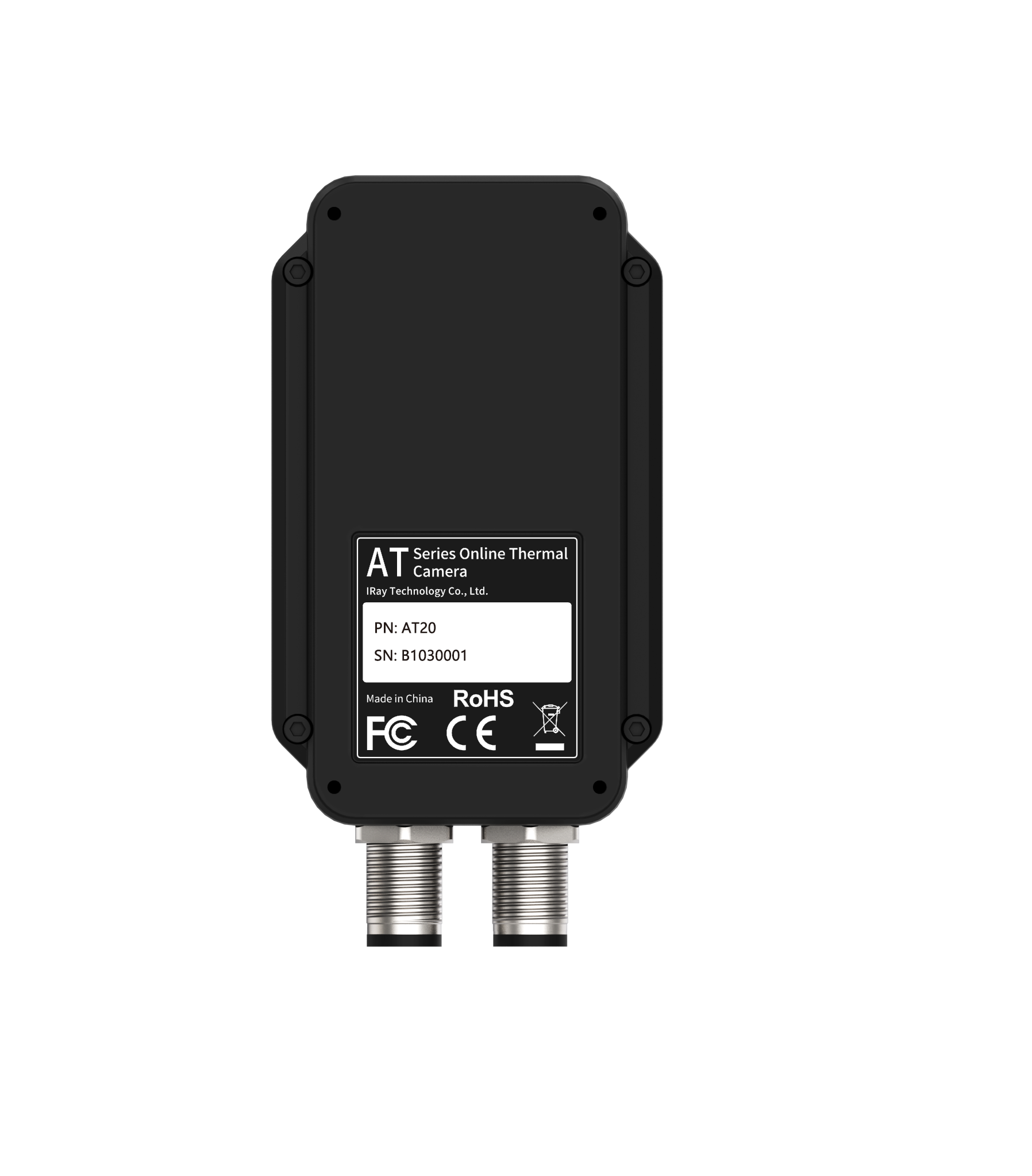

IRay AT Series AT20 Online Dual-Spectrum Thermal Imager
Views: 3429
$0.00
AT20 Online Dual-Spectrum
Thermal Imager
Description
Economical and practical
Video and temperature data acquisition terminal, suitable for IOT; Only few hundred dollars.
Flexible configuration
Fitting Dimensions to adapt to small space installation; Compatible with Ethernet and multiple interface protocols such as Modbus TCP; Provide SDK to support all-platform development (WindowsLinuxAndroidIOS).
Remote operation
Support remote reset and upgrade, to reduce the troubleshooting time; Remote access to real-time video and temperature data, convenient for back-end real-time analysis, alarm, and system control.
High-Resolution image
50,000 infrared pixels to provide high-definition easy-to-read images and help detect tiny temperature differences, which contributes to accurate analysis and judgment of problems.
Features
Specification
| Model AT20 | |
| Infrared Specification | |
| Resolution of Detector | 256×192 |
| NETD | 40mK |
| Frame Rate | 30Hz |
| Lens | 3.2mm |
| FOV | 56°×42° |
| Focusing | Focus-free |
| Visible light | |
| Visible Light Pixel | 200W (SC2310 CMOS sensor) |
| FOV | 72°×61° |
| Fill-in Light | LED indicator |
| Temperature Measurement | |
| Measurement Range | -20℃~+550℃ |
| Precision | ±2°C or ±2% (The greater shall prevail) |
| Point | Up to 16 |
| Line | Up to 16 |
| Area | Up to 16 |
| Palette | 18 |
| Environmental Variable Correction | Distance, ambient temperature, emissivity, reflected temperature, atmospheric transmissivity |
| Alarm | |
| Alarm Function | All temperature measurement points, areas, and lines can be provided with separate alarm output |
| Alarm Input/Output | 1-channel alarm input (optoelectronic isolation, 3 – 5.5V) |
| 2-channel alarm output (optoelectronic isolation, 3 – 25V DC, max. 85 mA) | |
| Other alarms: image/video storage, file sending (FTP), E-mail (SMTP), flashing light alarm | |
| Protocol | |
| Network Protocol | TCP、UDP、RTSP、HTTP、SMTP |
| Interface Protocol | ONVIF、GB28181、Modbus TCP、MQTT |
| Device Hot Spot | Visit the web management interface via the device hot spot Http |
| Image Stream | |
| Image Stream Format | H.264/H.265 |
| Resolution | Visible light 1080P; support 4 times of infrared super-resolution, with the maximum of 1024×768 |
| Image Mode | Thermal image, visible light image, dual-spectrum fusion, detail enhancement; support side-by-side display of visible light images |
| Frame Rate Adjustment | Support frame rate adjustment |
| Data Stream | |
| Data Stream Transmission | Visible light, infrared image, temperature stream, frame rate adjustable |
| Image Storage | |
| Storage Medium | Internal 32G memory |
| Storage Mode | Infrared/visible images, to be stored at the same time |
| File Format | jpg、mp4 |
| Storage Form | Local storage; can be connected with monitoring system such as NVR |
| SDK | |
| SDK | SDK Multi-platform (AndroidIOSWindowsMacsLinux) SDK that supports users’ secondary development |
| Power | |
| External Power Supply | 12~30V DC |
| POE | IEEE 802.3af |
| Power Consumption | ≤2W |
| External Interface | M12 type-A 8-pin, including 10M/100M adaptive Ethernet port and POE power supply; M12 type-A 12-pin, including DC power supply and alarm input/output |
| Environmental | |
| Ingress Protection Grade | IP67 |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Humidity | ≤95%, non-condensing |
| Impact Resistance | 25G， IEC68-2-29 |
| Vibration Resistance | 2G， IEC68-2-6 |
| Authentication | CE/FCC/ROHS |
| Dimension | 109×55.9×29.5mm |
| Weight | About 170g |
Downloads
IRay AT Series AT20 Online Dual-Spectrum Thermal Imager Datasheet20210317
AT20 Online Thermal Camera Web Client Operation Manual V1.0.1- 20210222
