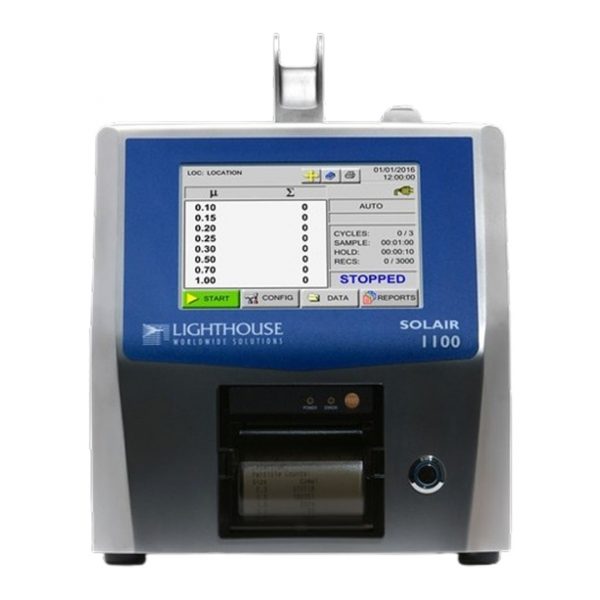

Lighthouse Solair 1100 LD Particle counter

Highlights

Number 1 in Versatility

The SOLAIR line of particle counters is the most versatile on the market today.

Whether you’re certifying your cleanroom to ISO standards, performing routine testing, counting particles in your compressed gas lines, scanning your HEPA filters for leaks, challenge testing your HEPA filters, or measuring environmental parameters such as TRH, DP, or AV, the SOLAIR portable particle counter is the right instrument to get the job done.

Cleanroom Certification

Whether you certify current ISO 14644 standards, EU GMP Annex 1, or Federal Standards 209E, the SOLAIR has you covered with its certification report wizard.

Routine Testing

Routine testing is a breeze with the intuitive interface, zoom screen, and onboard sample recipes.

Troubleshooting

With beep and concentration sample modes, the SOLAIR will simplify the identification of particle sources within your cleanroom.

Compressed Gas Testing

The SOLAIR can test for particle counts in compressed air by utilizing a high-pressure diffuser or high-pressure controller.  Particles can be tested down to 0.1 microns.

HEPA Filter Scanning

The scanning of HEPA filters is a critical step to ensure the integrity of the HEPA filter and the overall cleanliness of the cleanroom.  The ScanAir attachment from Lighthouse makes filter scanning a more effortless operation.

HEPA Filter Challenge Testing

Monitoring of other environmental parameters such as Temp, Humidity, Differential Pressure or Air Velocity

Other Environmental Testing

The SOLAIR can record data from up to 4 environmental sensors that plug into and are powered by the SOLAIR.  Data is recorded into the 3,000 record data buffer and can be downloaded along with the particle count data to your computer via USB key.

Better Technology Leads to Greater Flexibility

The SOLAIR 1100 uses a laser diode as its laser source.  This laser technology provides the SOLAIR 1100 with a 10x increase in concentration limits relative to the competition.  The higher concentration limit allows the instrument to be used in ISO Class 1 to Class 7 environments.

Save Time

Spend less time configuring your particle counter and more time counting particles.  The SOLAIR features one of the industry’s best and easy-to-use touch screen interfaces (UI).   Sample configuration is a breeze with ICON-driven menus, straightforward layout, and enhanced responsiveness.

The intuitive interface reduces learning uptime for new users and simplifies the writing of SOP’s for operation.

The SOLAIR has an integrated report wizard for cleanroom certification that makes cleanroom certification a breeze.  Once the basic sample parameters are input, the wizard will prompt the end-user to move to the following sample location, which helps to ensure no sample locations are missed.

The configurable recipe database can store up to 50 recipes for sampling and reports.  These recipes reduce operator configuration errors as well as setup time.

Ease of Use

Lighter is better, and the SOLAIR 1100 is the lightest 0.1-micron particle counter on the market, at only 23 lbs. without battery and 26 with a battery.

The SOLAIR can be powered via an onboard battery or plugged directly into a power outlet for extended use.   With the fastest battery recharge time of any portable on the market, the SOLAIR offers unrivaled uptime.

With beep and concentration sample modes,

the SOLAIR will simplify the identification of particle sources within your cleanroom.

Data from the SOLAIR can be downloaded directly to a standalone software package or a real-time monitoring system from Lighthouse.

Flexible communications with these instruments are made possible by the integrated Ethernet, RS-485, USB, and USB flash drive interfaces.

Reliability

The line of SOLAIR portable particle counters incorporate laser diode technology.

The vacuum system within the SOLAIR was designed with closed-loop feedback to ensure accurate sample volumes.  The vacuum pump was designed and built by Lighthouse to ensure long-term reliability.

The SOLAIR 1100LD is designed, manufactured, and calibrated to ISO 21501-4 to ensure particle-counting accuracy.

The SOLAIR can store up to 3,000 records of particle count data from up to 8 particle channels, and the configurable recipe database can store up to 50 recipes for sampling and reports.  All data can be quickly and reliably transferred to a computer, a Facility Monitoring System or a Building Automation System.  Secure data transfer (per 21 CFR Part 11) to a USB flash drive can be accomplished using the Lighthouse secure data transfer feature and LMS Express software.
