Opgal EyeCGas® Mini

Views: 3361

$0.00

EyeCGas is a product of choice for service companies and regulators around the globe. It allows for safe, quick, and cost effective detection of fugitive emissions. For more information or a quote, contact us today.

Description

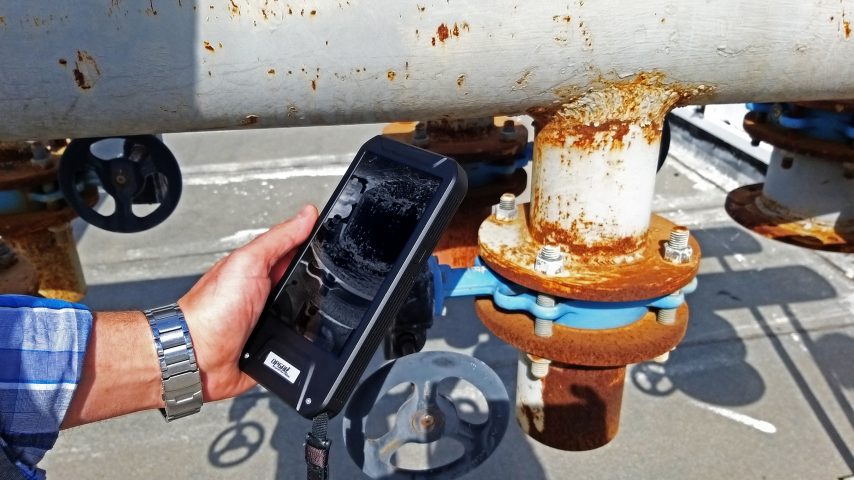

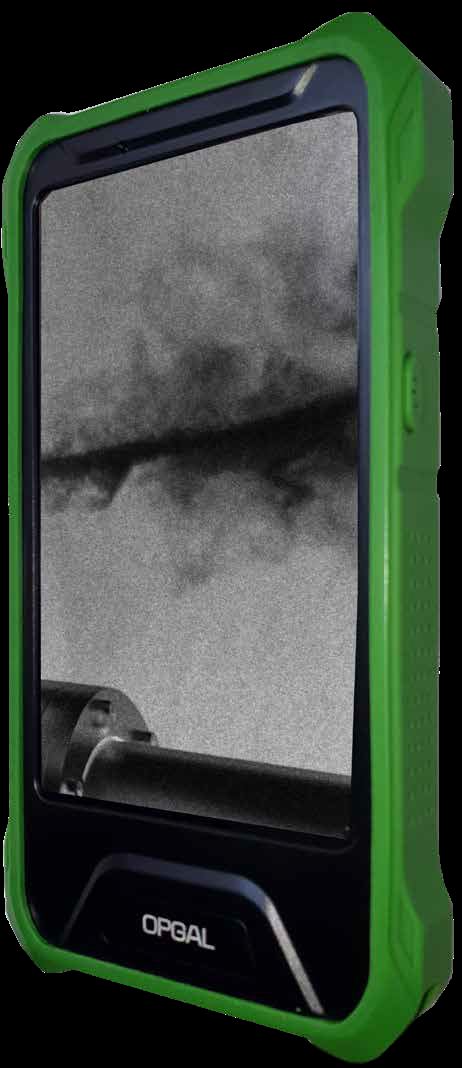

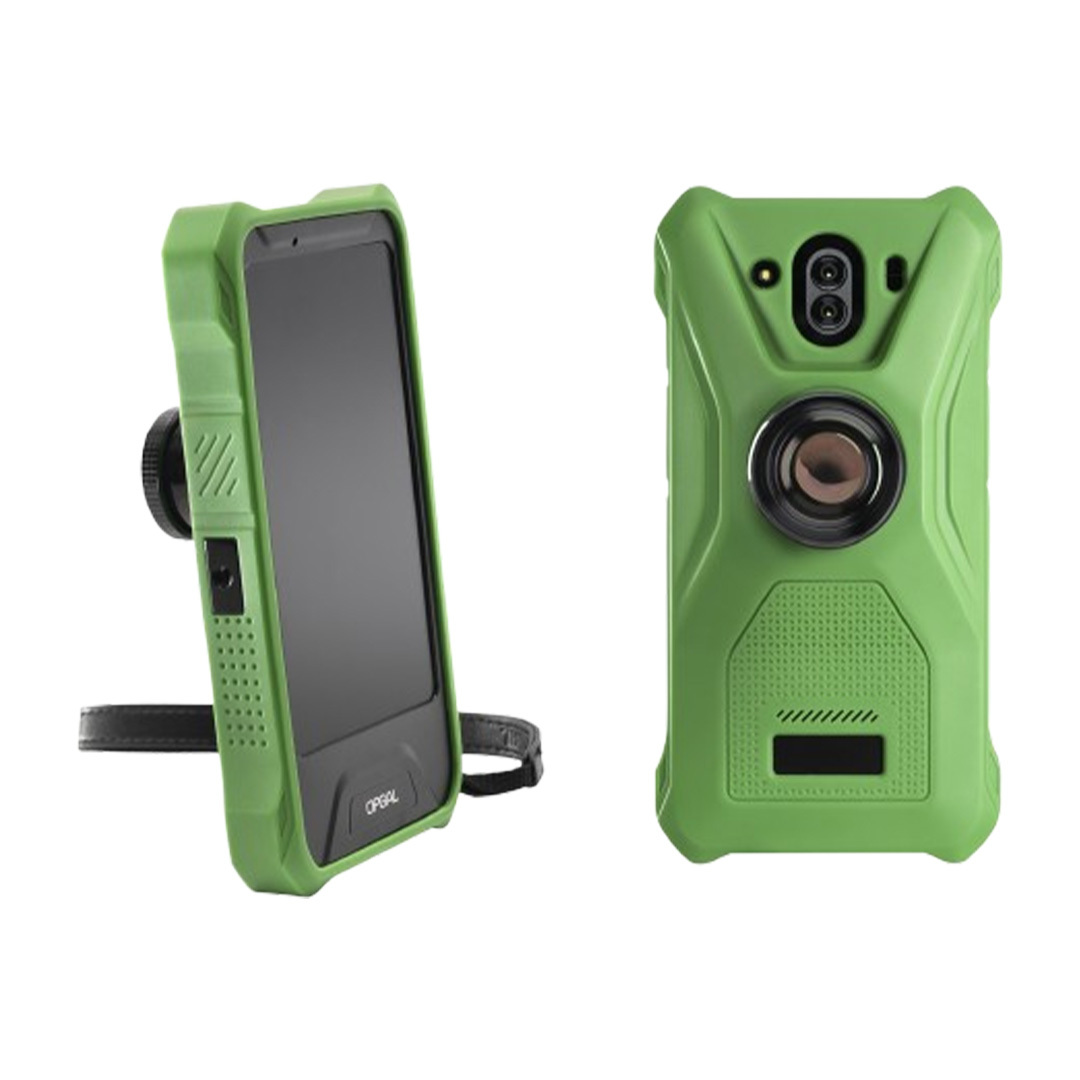

EyeCGas® Mini is a compact, handheld and user-friendly uncooled OGI camera for gas leak detection. The Mini comes in multiple models, which, using different kind of filters, can detect Methane, SF6, Ammonia, HFC Refrigerants and more.

Feature-rich, this small handheld camera allows wireless communication, data streaming, image fusion, thermography, video & audio recordings, and more. Compact and durable, the EyeCGas Mini revolutionizes the way inspections are held.

Features

    • ISO

      Simple to Operate
      Simple and easy operation with minimal training

      Thermography

      Thermography Mode
      Thermographic imaging & color palettes for better versatility

      WiFi

      Live Wireless Streaming
      Live video streaming and wireless connectivity

      Quantification

      Quantification
      EyeCSite Software integration enabling accurate measurements

      Built In GPS

      GPS
      Built-in GPS allows location identification of leaks

      Image Fusion

      Fusion Mode
      Image fusion (day and thermal) for improved orientation

      Speed

      Long Operating Time
      More than 5 hours operating time

Specifications

Image and Optical Data
Sensor Resolution 384 x 288
Focal Plane Array Uncooled Microbolometer
Spectral Range 7.5 – 9 µm
Detector Pitch 17µ
Thermal Sensitivity <50mK @ 25 °C
Gas Sensitivity >10 gr/hr (Methane)
Field of View 19° x 14° Manual Focus
Focal Length 20mm
F# 1.0
Digital Zoom Included
Image Presentation and Framerate
Image Frequency 9 Hz IR, 30Hz Visible
Display OLED, 6 Inch, 1080×2160 pixels, 16 M Colors, Touch-screen
Visible Digital Camera 12MP
IR Color Palettes Hot White / Hot Black / Iron / Rainbow / Grey / Vivid
Image Mode Fusion
Video Streaming TBA
Image Format BMP, AVI
General
Thermography 10 – 85 °C
Accuracy ± 3°C
Data Stotage 128 GB
Interface Bluetooth, Wi-Fi
GPS Included
Size (mm) 180 x 80 x 60
Weight 600 gr
Operating Time > 5 hours
Charging Standard USB C port

Why EyeCGas?

EyeCGas® Mini is a compact, handheld and user-friendly uncooled OGI camera for gas leak detection. The Mini comes in multiple models, which, using different kind of filters, can detect Methane, SF6, Ammonia, HFC Refrigerants and more.

Feature-rich, this small handheld camera allows wireless communication, data streaming, image fusion, thermography, video & audio recordings, and more. Compact and durable, the EyeCGas Mini revolutionizes the way inspections are held.

Downloads

EyeCGas-Mini-04-2021
