Opgal Sii Op
Views: 3649
$0.00
Description

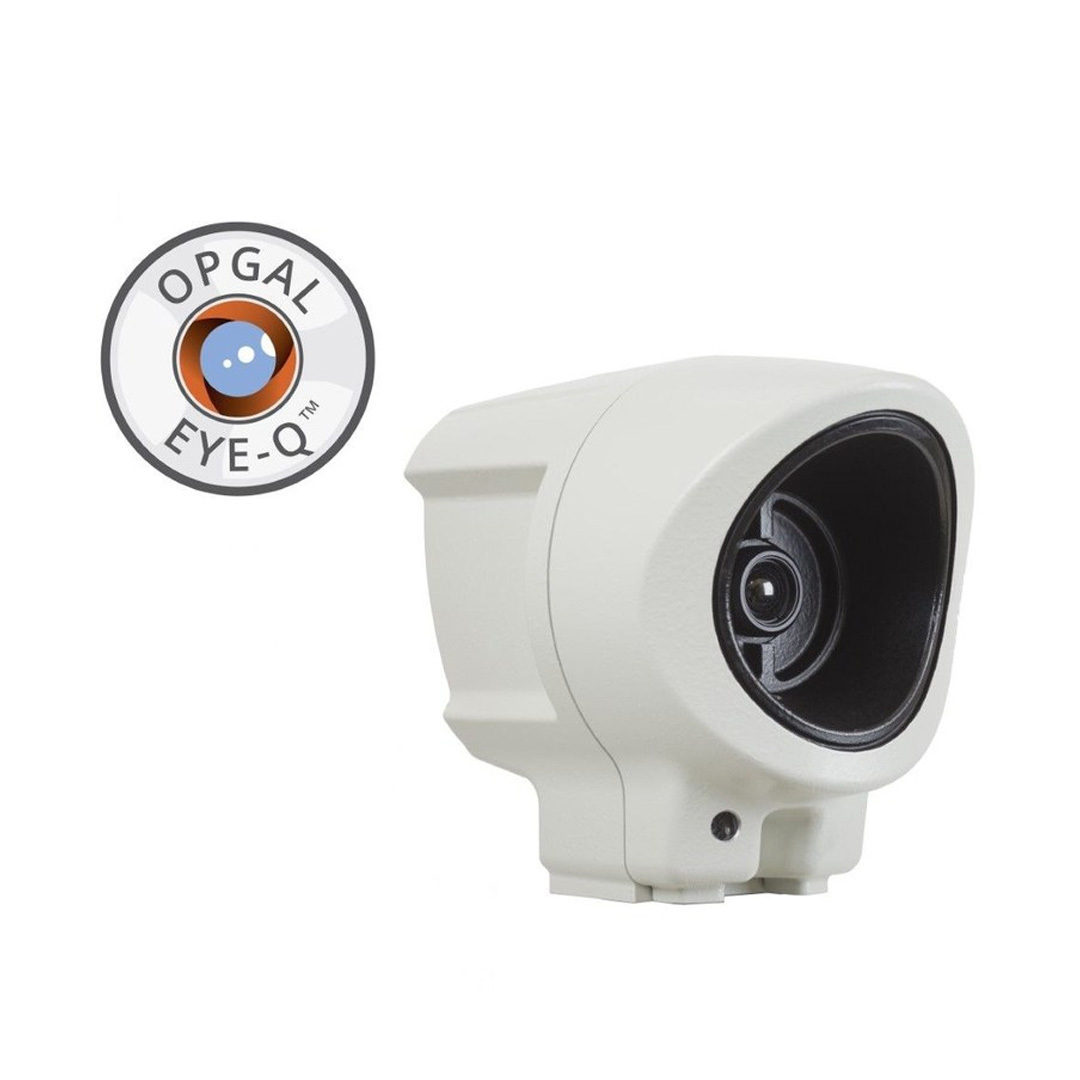

The new Sii OP is our most state-of-the-art detection system to date. The infrared camera boasts an incredibly easy installation, and includes both day and night vision capabilities as well as a dedicated Software Development Kit (SDK) for full seamless 3rd party integration. Our extensive network of partners, integration opportunities, competitive pricing, and high performance capabilities make the Sii OP an easy choice for all your surveillance needs. This device allows you to cover more ground with less cameras, compared to traditional CCTV solutions.
Product Features
- On-board video analytics
- Integrated with advanced Opgal Eye-Q™ image processing technology
- Both HD day and VGA thermal channels for total night vision
- ONVIF Profile S compliant
- Easy installation
- Advanced optics
- Low cost of ownership
- Rugged design
- Unparalleled support
Why Sii OP?
The Sii OP is an advanced compact thermal camera that comes with everything you need in one package. The camera has incredible interoperability with existing infrastructure hardware and software products, as well as on-boards analytics that allows ONVIF-based alert generation. For more information or a quote, contact us today.
Description
THE FIRST OPEN SOURCE SECURITY THERMAL CAMERA
Type: Dual Sensor System
Imagers: Thermal/HD CMOS
Core: Uncooled
Pitch: 17μ
Platform: Fixed
Specifications
| Visual Camera | |
|---|---|
| Imager | HD CMOS |
| Resolution | 1280 x 720 |
| FOV | 52˚ x 43˚ |
| Focus | Autofocus |
| Thermal Camera | |
|---|---|
| Imager | Uncooled 17μ microbolometer 7.5 – 14μm |
| Resolution | 640 x 480 / 384 x 288 |
| NEDT | <40 mK |
| Frame Rate | 8.7Hz or 25Hz |
| Video Modes | Black / white hot, 3 color palettes |
| Optics | 10mm, 14mm, 19mm, 25mm, 35mm, 50mm, 60mm, 75mm |
| Advanced image processing technology | Opgal Eye-Q™ |
| System Interfaces | |
|---|---|
| Control | ONVIF, web UI configurator |
| Video over ethernet | Two independent channels of H.264, M-JPEG, MPEG4 (optional) |
| I/O | 2 available auxiliary general use built in I/O |
| General | |
|---|---|
| Unit dimensions | 7.95” (L) x 5.32” (W) x 6.65” (H) 202mm (L) x 135mm (W) x 169mm (H) |
| Weight | < 6.94 lbs (3.15kg) – with respect to selected optics |
| Input voltage | 12-32VDC or PoE++ (IEEE802.3at) |
| Enivronmental | |
|---|---|
| Operating temp | -40 to +55C° |
| IP rating | IP66 |
