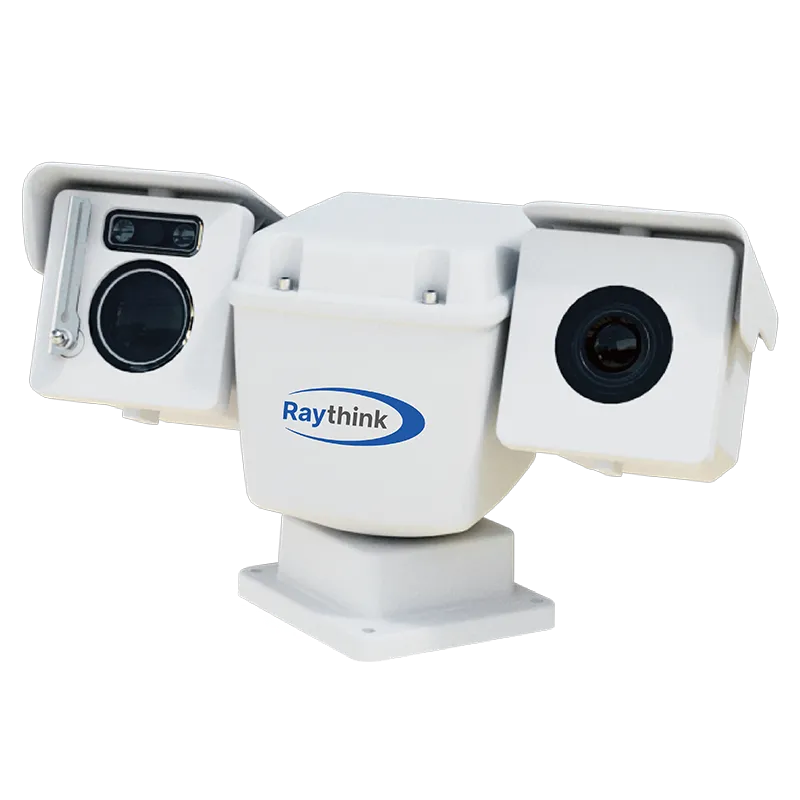

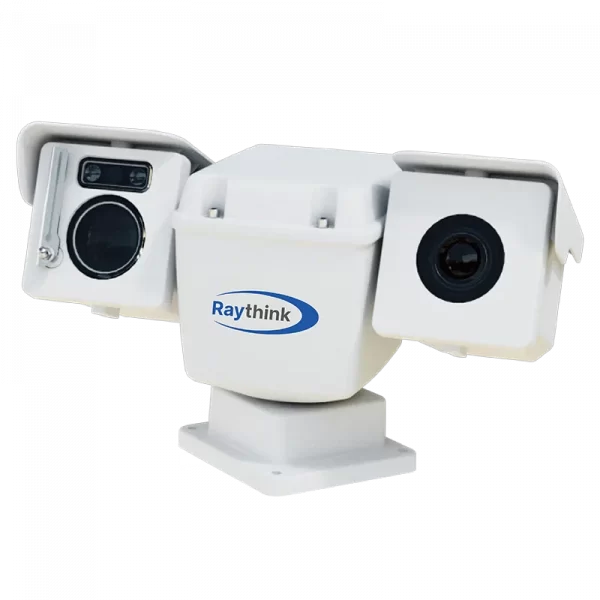

PC2 Series Dual-Spectrum PTZ Camera
Views: 800
$0.00
- PC2 Series designed for inspection and status monitoring by using infrared thermal imaging and HD visible light imaging.
- It is able to set preset and rules to analyze temperature data and trigger alarms. Meanwhile, intelligent functions like fire point detection, tripwire/intrusion detection are also integrated in the camera.
Description
1. 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal & visible light imaging.
3. Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.

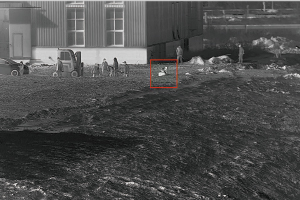

4. Intelligent Fire Detection Algorithm
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.

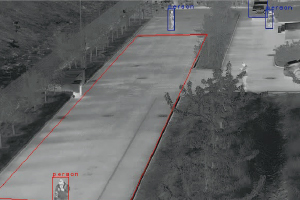

5. Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent
detection of fire point.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| NETD (GRID) | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 9.1mm / 13mm / 19mm / 25mm / 35mm athermalized/motorized lens |
| Optical Module | |
| Sensor | 4MP 1/1.8″ progressive scan CMOS |
| Resolution | 2688 × 1520 |
| Focal Length | 6.5~130mm, 20x magnification |
| Image Function | |
| Picture in Picture | Support |
| PTZ Camera | |
| Pan | 360° continuous, 0.1°~100°/s |
| Tilt | -90°~+90°, 0.1°~60°/s |
| Program | 256 |
| Scan Mode | Preset scan/Pattern scan/Patrol scan/Line scan/Panoramic scan |
| Wiper | Wiper |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Supports 4 temperature measurement rules (full frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| ACV | Support for line crossing and intrusion detection |
| Two-Way Audio | Support |
| Linking Action | Video/Snapshot/Email/Alarm output/Sound and light alarm |
| System Interface | |
| Power | DC 12V ± 25% |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 input / 1 output |
| Alarm | 2 inputs / 2 outputs |
| Storage | Micro SD memory (maximum 256G) |
| Reboot | Support |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <90%RH |
| Protection | IP66 |
| Dimension (mm) | 358 × 164.5 × 203 |
| Weight | 4.5 kg |
Applications
Park Monitoring

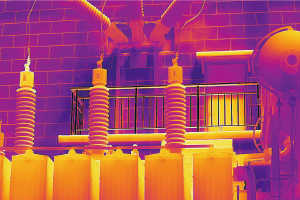

Device Temperature Monitoring
Robot Routine Inspection

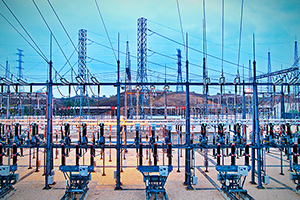

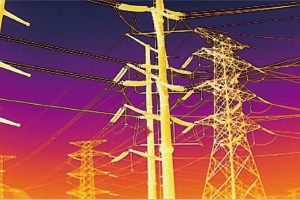

Electric Routine Inspection
