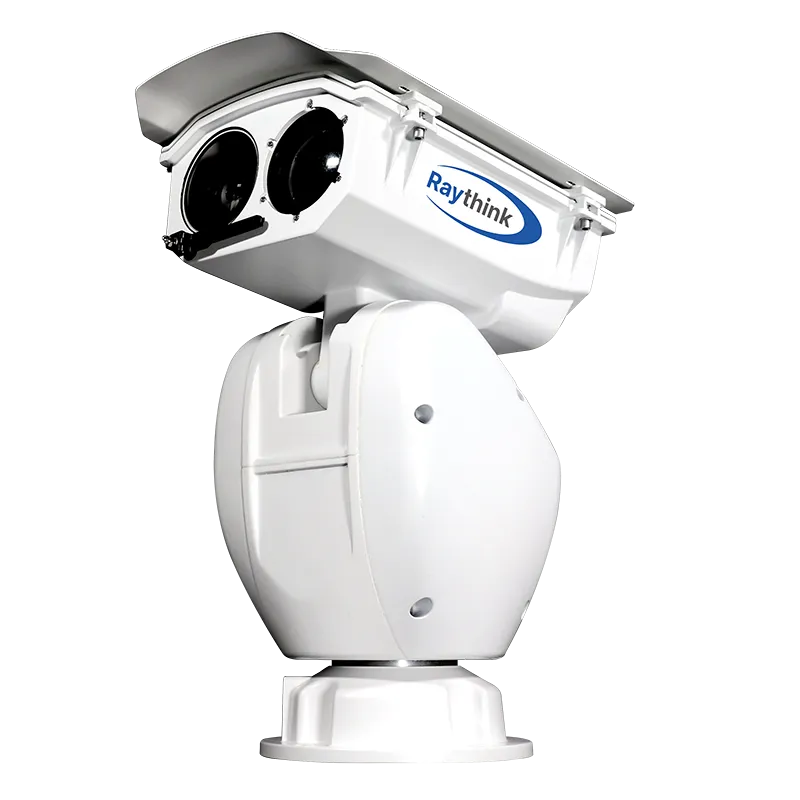

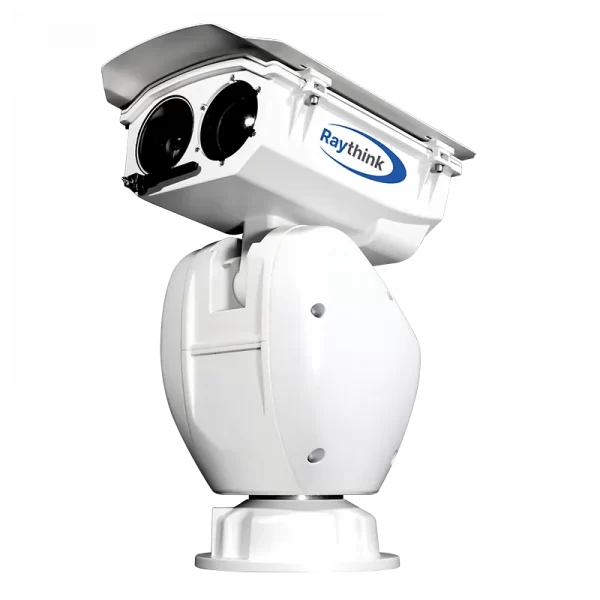

PC4 Series Dual-Spectrum PTZ Camera
Views: 790
$0.00
- PC4 series is a compact solution that integrates HD visible light, infrared thermal imaging and PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside.
- It provides all-weather, 24/7 surveillance for scenarios such as border/coastal surveillance, forest fire prevention and critical area protection.
Description
1. 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal & visible light imaging.
3. Long-Range Detection
Supports 75mm and 100mm fixed-focus, as well as 25～75mm continuous zoom infrared lens to meet long-range detection needs.
4. Intelligent Fire Detection Algorithm
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
5. Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| GRID (NETD) | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 75mm / 25~75mm / 100mm motorized lens |
| Optical Module | |
| Sensor | 4MP 1/1.8″ progressive scan CMOS |
| Resolution | 2688 × 1520 |
| Focal Length | 6~336mm, 56x magnification |
| PTZ Camera | |
| Pan | 360° continuous, 0.1°~100°/s |
| Tilt (Inclination) | -90°~+40°, 0.1°~60°/s |
| Program | 1024 |
| Scan Mode | Preset scan/Pattern scan/Patrol scan/Line scan/Panoramic scan |
| Wiper | Wiper |
| Smart Function | |
| Fire Detection | Support |
| ACV (Analytical Video Content) | Line crossing and intrusion detection |
| Two-Way Audio | Support |
| Linking Action | Video output/Snapshot/Email/Alarm |
| System Interface | |
| Power | DC 24V ± 15% |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 input / 1 output |
| Alarm | 7 inputs / 2 outputs |
| Storage | Micro SD memory (maximum 256G) |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <90%RH |
| Protection | IP66 |
| Energy Consumption | Max 75W |
| Dimension (mm) | 250 × 472 × 360 |
| Weight | 14 kg |
Applications
Forest Fire Prevention
River Monitoring
Border and Coastal Surveillance
Critical Infrastructure Protection
