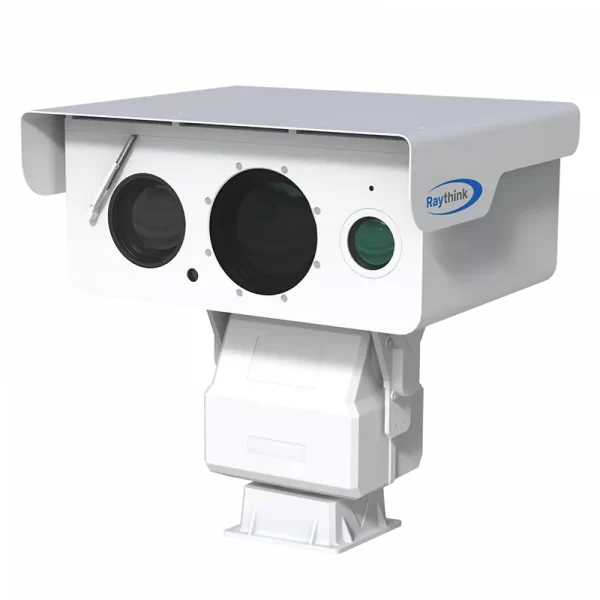

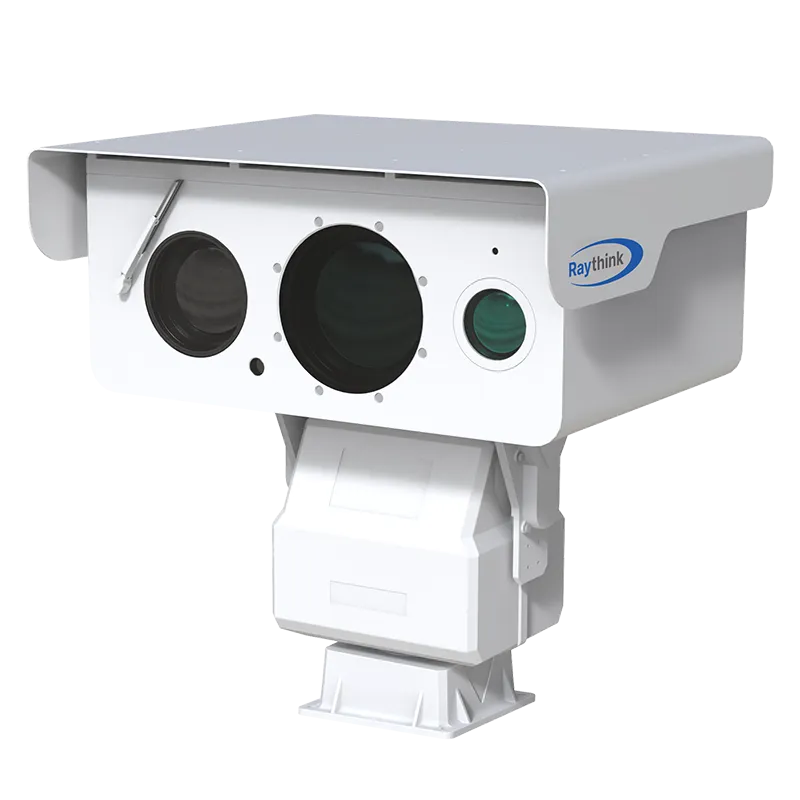

PC8 Series Multi-Spectrum PTZ Camera
Views: 725
$0.00
- PC8 series is a long-range surveillance solution that integrates HD visible light, laser illumination, infrared thermal imaging and PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside.
- It provides all-weather, 24/7 surveillance for scenarios such as border/coastal surveillance, forest fire prevention and critical area protection.
Description
1. Industry-Leading Infrared Detector
Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.
2. Multi-Spectrum
Supports a maximum thermal imaging resolution of 1.3 megapixels (1280×1024) and a maximum visible light resolution of 4 megapixels (2688×1520), laser illumination 3km
3. Long-Range Detection
Supports 25～225mm continuous zoom lens for thermal imaging
cameras and 15~775mm continuous zoom lens for visible light
cameras.
cameras and 15~775mm continuous zoom lens for visible light
cameras.
4. Intelligent Fire Detection Algorithm
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
5. Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| GRID (NETD) | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 30~150mm/25~225mm |
| Optical Module | |
| Sensor | 4MP 1/1.8″ progressive scan CMOS |
| Resolution | 2688 × 1520 |
| Focal Length | 6~300mm, 50x magnification |
| Laser Illuminator | |
| Laser Illuminator | 3 kilometers |
| PTZ Camera | |
| Pan | 360° continuous, 0.01°~60°/s |
| Tilt (Inclination) | -60°~+60°, 0.01°~15°/s |
| Program | 1024 |
| Scan Mode | Preset scan/Pattern scan/Patrol scan/Line scan/Panoramic scan |
| Wiper | Automatic windshield wipers |
| Smart Function | |
| Fire Detection | Support |
| ACV (Analytical Video Content) | Support for line crossing and intrusion detection |
| Two-Way Audio | Support |
| Linking Action | Video output/Snapshot/Email/Alarm |
| System Interface | |
| Power | DC 48V ± 15% |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 input / 1 output |
| Alarm | 1 input / 1 output |
| Storage | Micro SD memory (maximum 256G) |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <90%RH |
| Protection | IP66 |
| Energy Consumption | Max 190W |
| Dimension (mm) | 645 × 680.5 × 550 |
| Weight | 48 kg |
Applications
Border and coastal surveillance
Forest Fire Prevention
Urban High-Altitude Surveillance
Critical Infrastructure Protection
