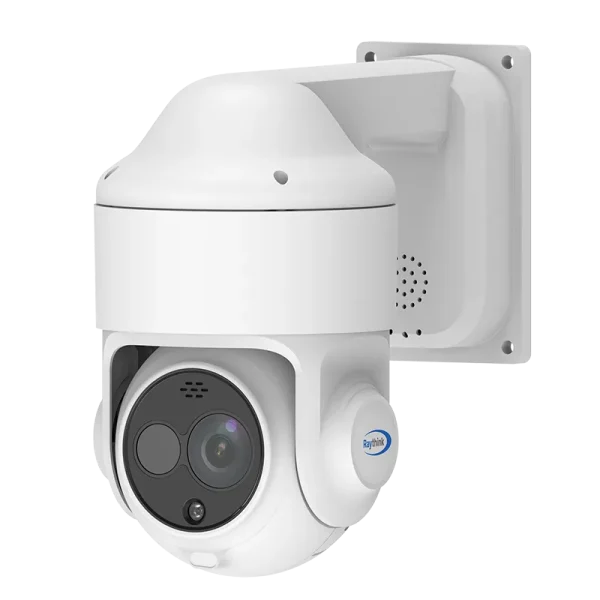

PD2 Series Dual-Spectrum Speed Dome Camera
Views: 753
$0.00
- PD2T dual-spectrum speed dome camera equipped a 256×192 resolution, 12μm pixel pitch thermal detector and a 5MP visible light sensor with 20x optical zoom lens.
- It supports tripwire/intrusion detection with AI human/vehicle classification algorithm.
- The PT system offers more flexibility for surveillance. It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.
Description
1. Industry-Leading Infrared Detector
Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.
2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal&visible
light imaging.

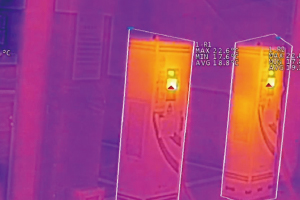

3. Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.

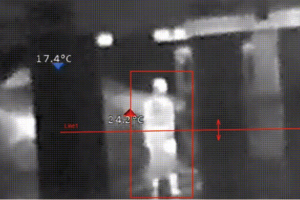

4. AI Target Recognition
Smart video content analysis, human/vehicle recognition on
thermal channel for crossline/intrusion detection.
5. Intelligent Alarm
Provides 360° panoramic monitoring, detects thermal imaging targets, integrates with visible light cameras for zooming and tracking, and supports alarm linkage for various events with audible and visual alarms to reduce false alarms.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| GRID (NETD) | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Focal Length | 7mm/10mm |
| Optical Module | |
| Sensor | 5MP 1/2.8″ progressive scan CMOS |
| Resolution | 2560 × 1920 |
| Focal Length | 5.4~108mm, 20x magnification |
| IR Distance | 50 meters |
| PTZ Camera | |
| Pan | 360° continuous, 0.1°~120°/s |
| Tilt (Inclination) | 0°~+90°, 0.1°~60°/s |
| Program | 255 |
| Scan Mode | Preset scan/Pattern scan/Patrol scan/Line scan/Panoramic scan |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Supports 4 temperature measurement rules (full frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| ACV (Analytical Video Content) | Supports line crossing and intrusion detection with AI human and vehicle recognition |
| Two-Way Audio | Support |
| Linking Action | Video/Snapshot/Email/Alarm output/Sound and light alarm |
| System Interface | |
| Power | DC 12V ± 25% / PoE (802.3af/at) |
| Network | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 input/1 output |
| Alarm | 2 inputs/1 output |
| Storage | Micro SD memory (maximum 256G) |
| Reboot | Support |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <95%RH |
| Protection | IP66 |
| Energy Consumption | ≤20W |
| Dimension (mm) | 265 × 147.5 × 248.7 |
| Weight | 2.48 kg |
Applications
Park Perimeter
River Monitoring
Electric Temperature Measurement
Warehouse Security
