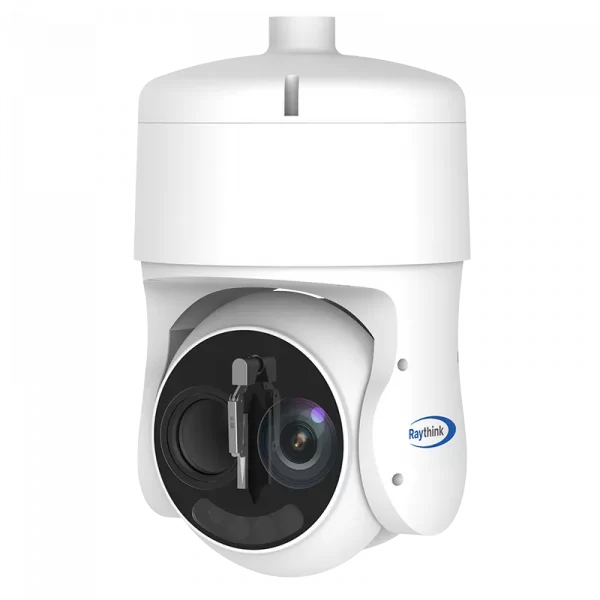

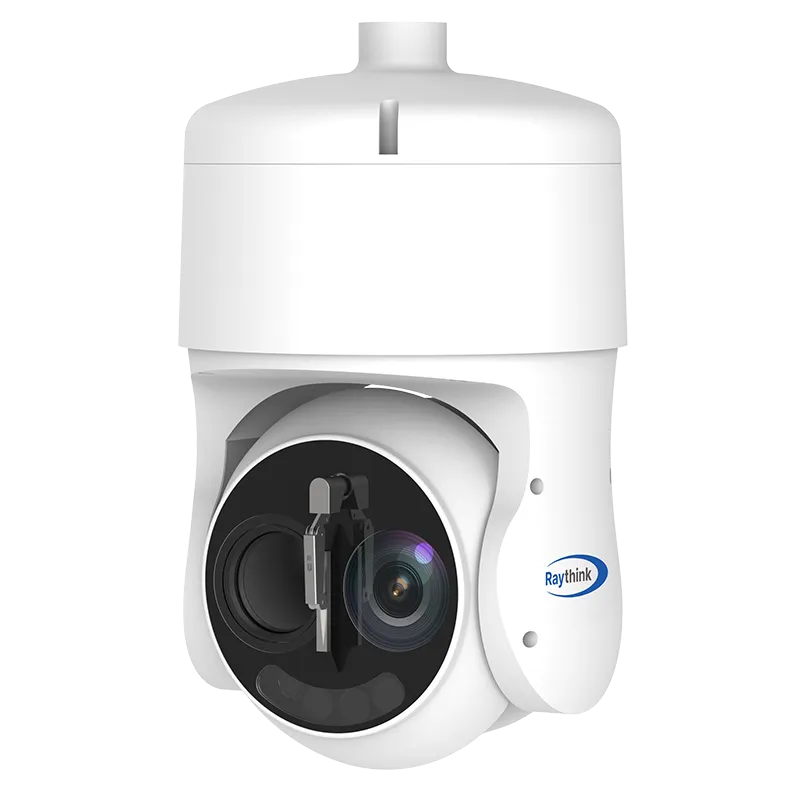

PD4 Series Dual-Spectrum Speed Dome Camera
Views: 749
$0.00
- PD4T dual-spectrum speed dome camera equipped a 640×512 resolution, 12 μm pixel pitch thermal detector with motorized lens, and a high-performance 4MP visible light camera.
- It supports tripwire/intrusion detection with AI human/vehicle classification algorithm.
- The target can be tracked with the help of PT system. It can be used for perimeter protection in critical facilities.
Description
1. 12μm Uncooled Infrared Detector
Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.
2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal & visible
light imaging.
3. Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.
4. Long-Range Observation
Supports a 50mm motorized lens for detecting fire points up to 3km away and individuals up to 1km away.

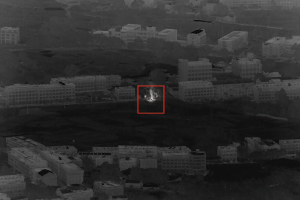

5. AI Target Recognition
Smart video content analysis, human/vehicle recognition on
thermal channel for crossline/intrusion detection.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| GRID (NETD) | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 9.1mm/13mm/25mm/50mm athermalized/motorized lens |
| Optical Module | |
| Sensor | 4MP 1/1.8″ progressive scan CMOS |
| Resolution | 2560 × 1920 |
| Focal Length | 6.5~240mm, 37x magnification |
| IR Distance | 200 meters |
| Image Function | |
| Bispectral Image Fusion | Support |
| PTZ Camera | |
| Pan | 360° continuous, 0.1°~200°/s |
| Tilt (Inclination) | -27°~+90°, 0.1°~120°/s |
| Program | 1024 |
| Scan Mode | Preset scan/Pattern scan/Patrol scan/Line scan/Panoramic scan |
| Wiper | Automatic windshield wipers |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Supports 4 temperature measurement rules (full frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| ACV (Analytical Video Content) | Supports line crossing and intrusion detection with AI human and vehicle recognition |
| Two-Way Audio | Support |
| Linking Action | Video output/Snapshot/Email/Alarm |
| System Interface | |
| Power | DC 24V ± 25% |
| Network | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 input/1 output |
| Alarm | 7 inputs/2 outputs |
| Storage | Micro SD memory (maximum 256G) |
| Reboot | Support |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <95%RH |
| Protection | IP66 |
| Energy Consumption | ≤8 W |
| Dimension (mm) | Φ250 × 413 |
| Weight | 8 kg |
Applications
Forest Fire Prevention
Perimeter Protection

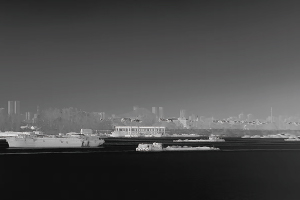

River Monitoring
Electric Temperature Measurement
