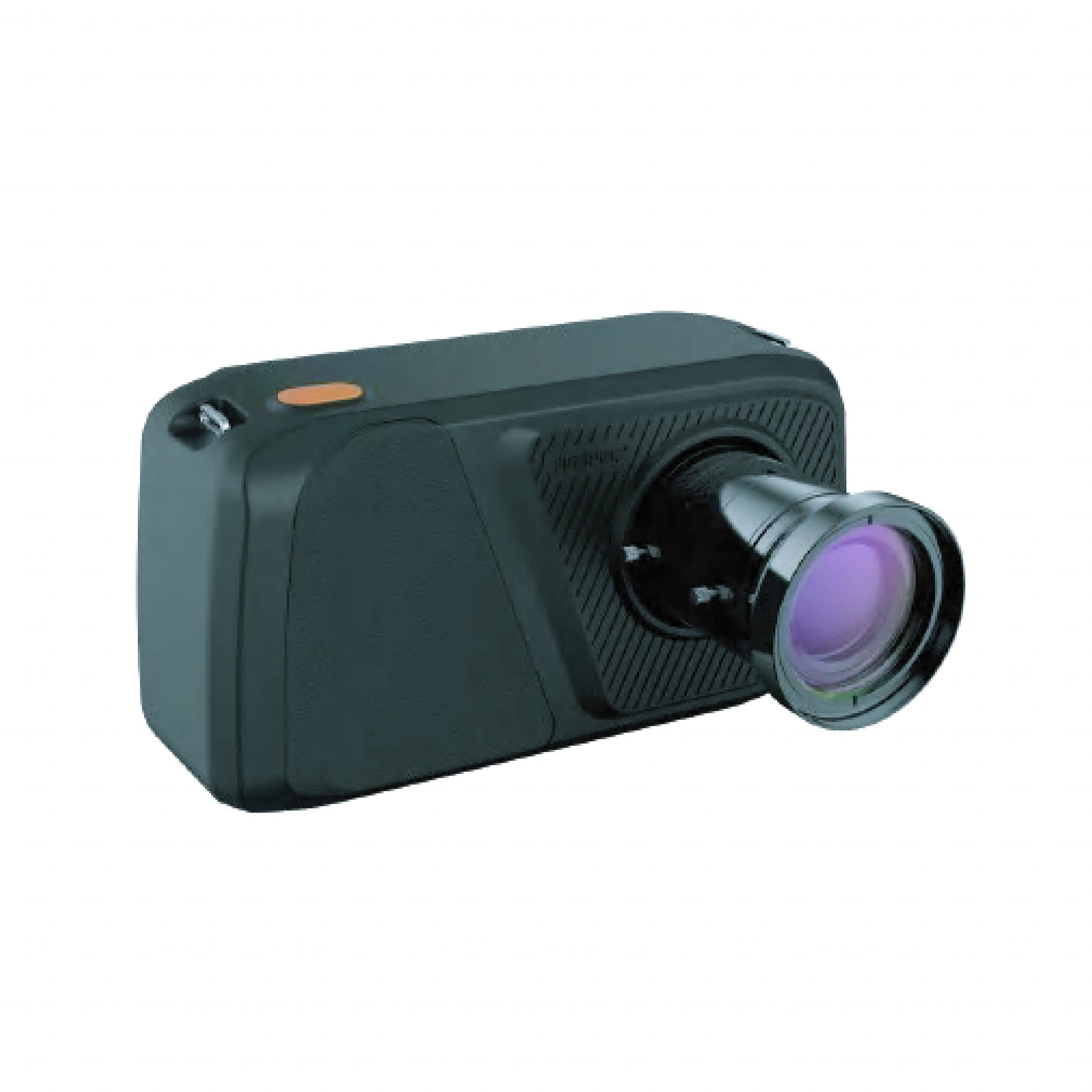

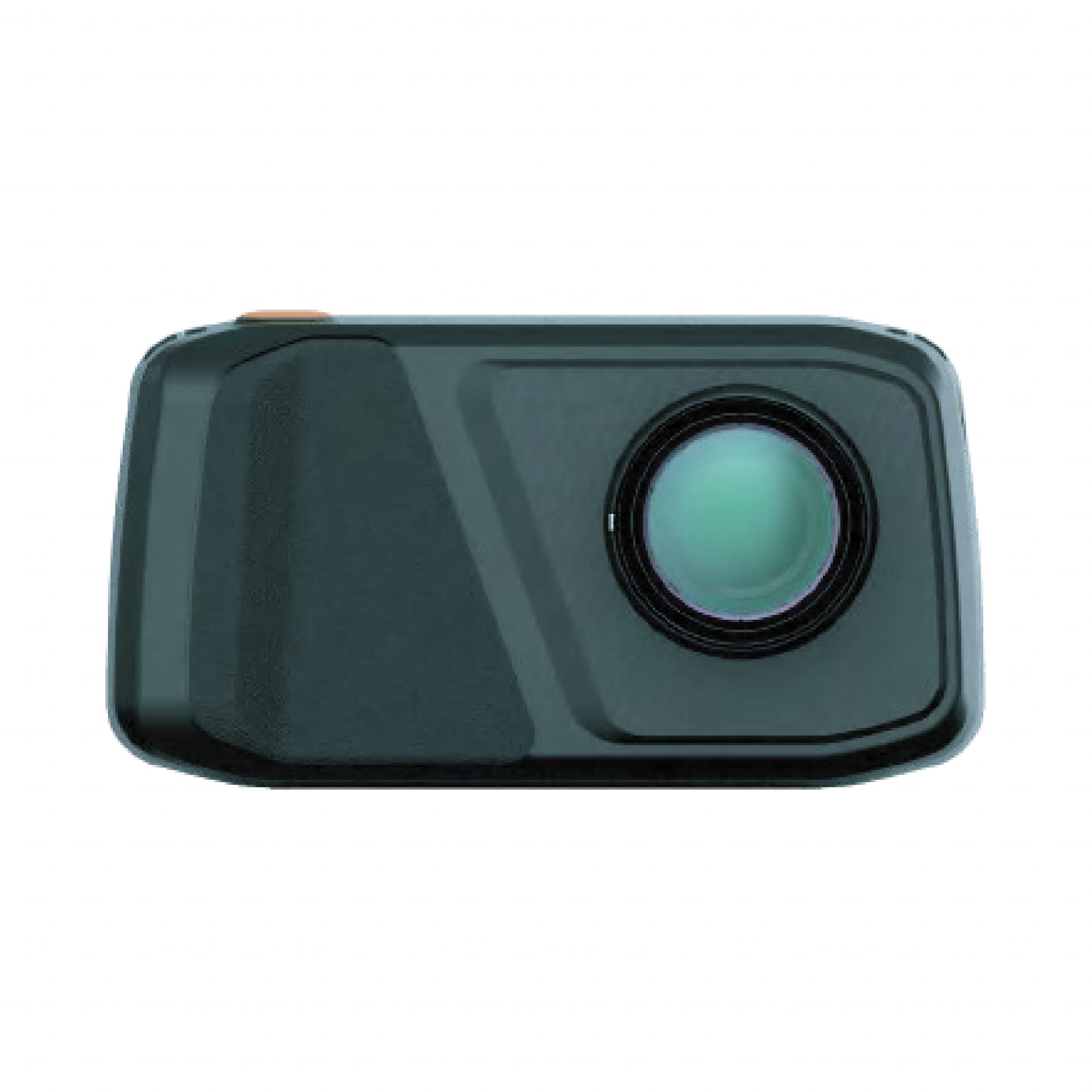

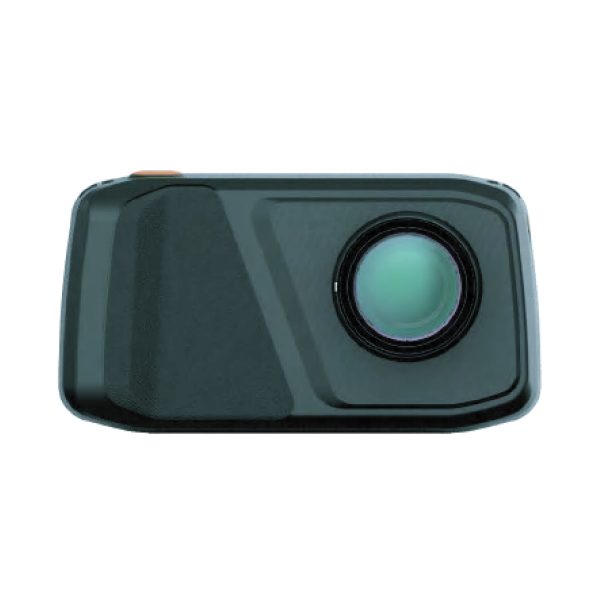

Portable hyperspectral camera
Views: 374
400-1700nm hyperspectral camera
Obtain hyperspectral image data and
analyze it anytime and anywhere
Description
Main characteristics
•Internal sweep hyperspectral camera, wavelength range 400-1700nm
•The spectral resolution (FWHM) can reach 2.5nm
•The spatial resolution is up to 1920*1920, and the number of spectral channels is up to 1200

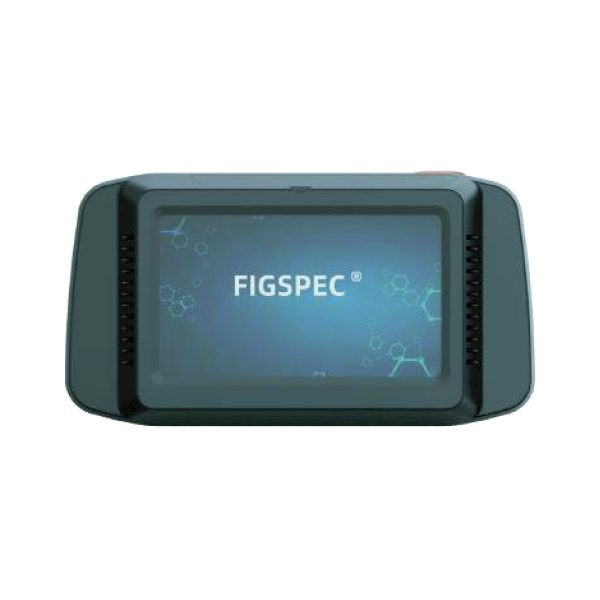

•Display and operation through 5-inch touch screen, resolution 1280*720
| Working Mode | High precision imaging measurement mode PC control mode Line scan mode |
| User Adjustment | Users can flexibly set and modify the exposure time, merge method, and ROI area. |
| Data Format | Compatible with multiple formats, including ENVI. |
| Data Export | Supports USB Type-C for fast data export. |
| Battery Life/Performance | Can perform 100 measurements on a single charge. |
Specifications
| Model Number | FS-IQ-VIS | FS-IQ-VISNIR | FS-IQ-SWIR |
|---|---|---|---|
| Spectroscopic Method | Transmission grating spectroscopy | Transmission grating spectroscopy | Transmission grating spectroscopy |
| Image Resolution | 1920 * 1920 | 1920 * 1920 | 1280 * 1280 |
| Dynamic Range | 12 bits | 12 bits | 12 bits |
| Imaging Speed | 5s | 5s | 5s |
| Spectral Channel Number | 500 | 1200 | 1024 |
| Spectral Range | 400-700 nm | 400-1000 nm | 900-1700 nm |
| Optical Harmonic Resolution | 2.5 nm | 2.5 nm | 6 nm |
| Slit Width | 25 µm | 25 µm | 25 µm |
| Transmission Efficiency | ≥60% | ≥60% | ≥60% |
| Stray Light Level | ≤0.5% | ≤0.5% | ≤0.5% |
| Pixel Size | 5.86 µm * 5.86 µm | 5.86 µm * 5.86 µm | 5 µm * 5 µm |
| Detector Type | CMOS | CMOS | InGaAs |
| Standard Lens Focal Length | 25 mm | 25 mm | 25 mm |
| Minimum Working Distance | 100 mm | 100 mm | 100 mm |
| Field Angle | 25° | 25° | 17° |
| Minimum Exposure Time | 21 µs | 21 µs | 1 µs |
| Maximum Exposure Time | 10 s | 10 s | 10 s |
| Signal-to-Noise Ratio | 600/1 | 600/1 | 600/1 |
| Data Interface | USB3.0 | USB3.0 | USB3.0 |
| Camera Lens Interface | C | C | C |
| Attachment | USB3.0 transmission line | USB3.0 transmission line | USB3.0 transmission line |
| Auxiliary Imaging Function | The auxiliary view camera monitors the shooting area | The auxiliary view camera monitors the shooting area | The auxiliary view camera monitors the shooting area |
Applications

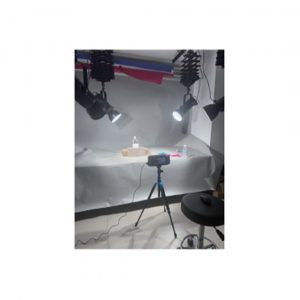

Portable Hyperspectral Camera FS-IQ-SWIR Jade Measurement
Case

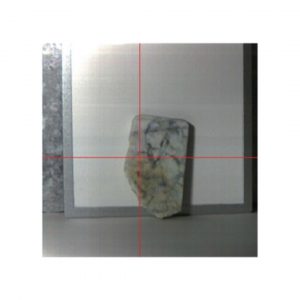

Portable Hyperspectral Camera FS-IQ Stone Measurement Case
