Refraktometer / Handrefraktometer PCE-DRF 6 Kaliumcarbonat
Views: 233
Description

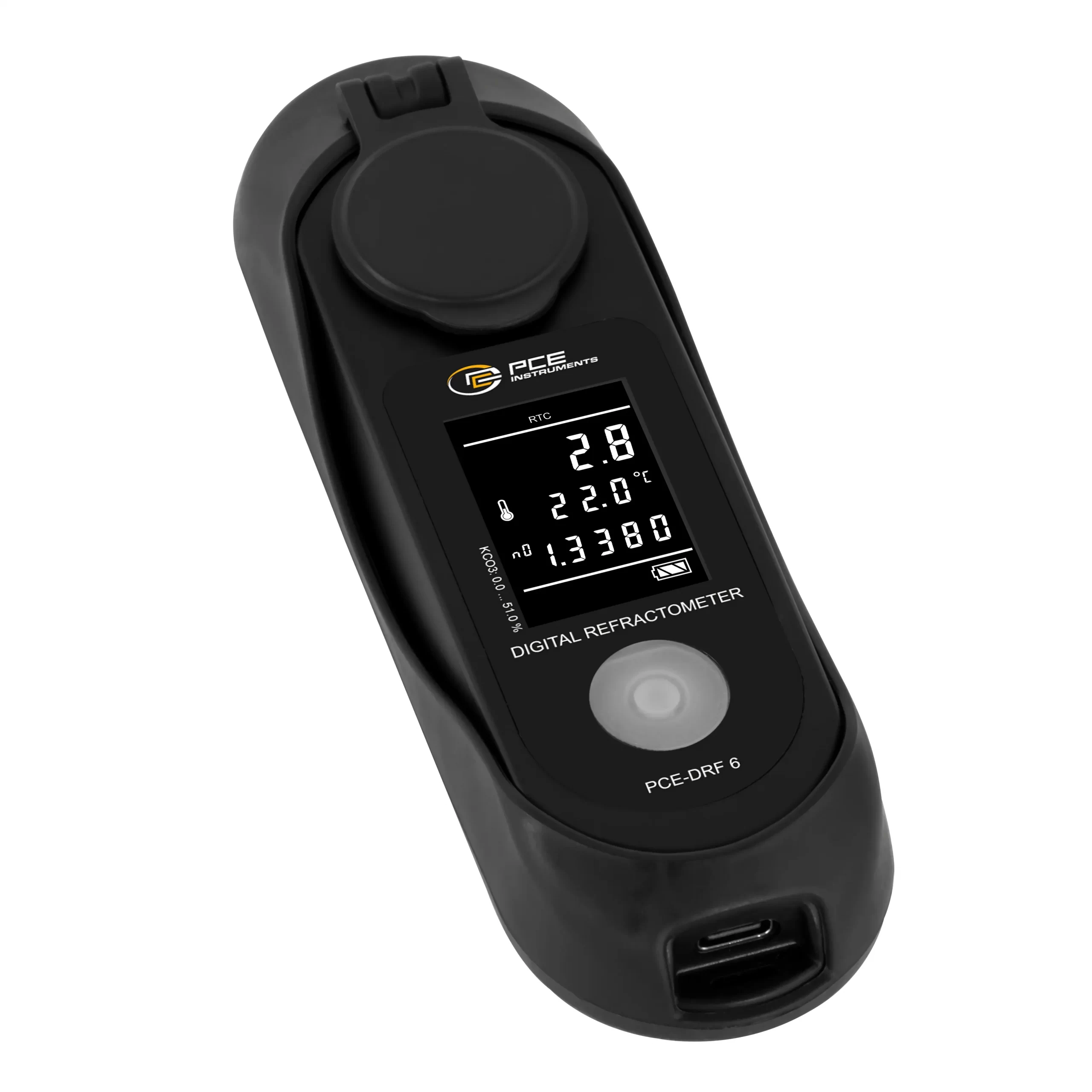

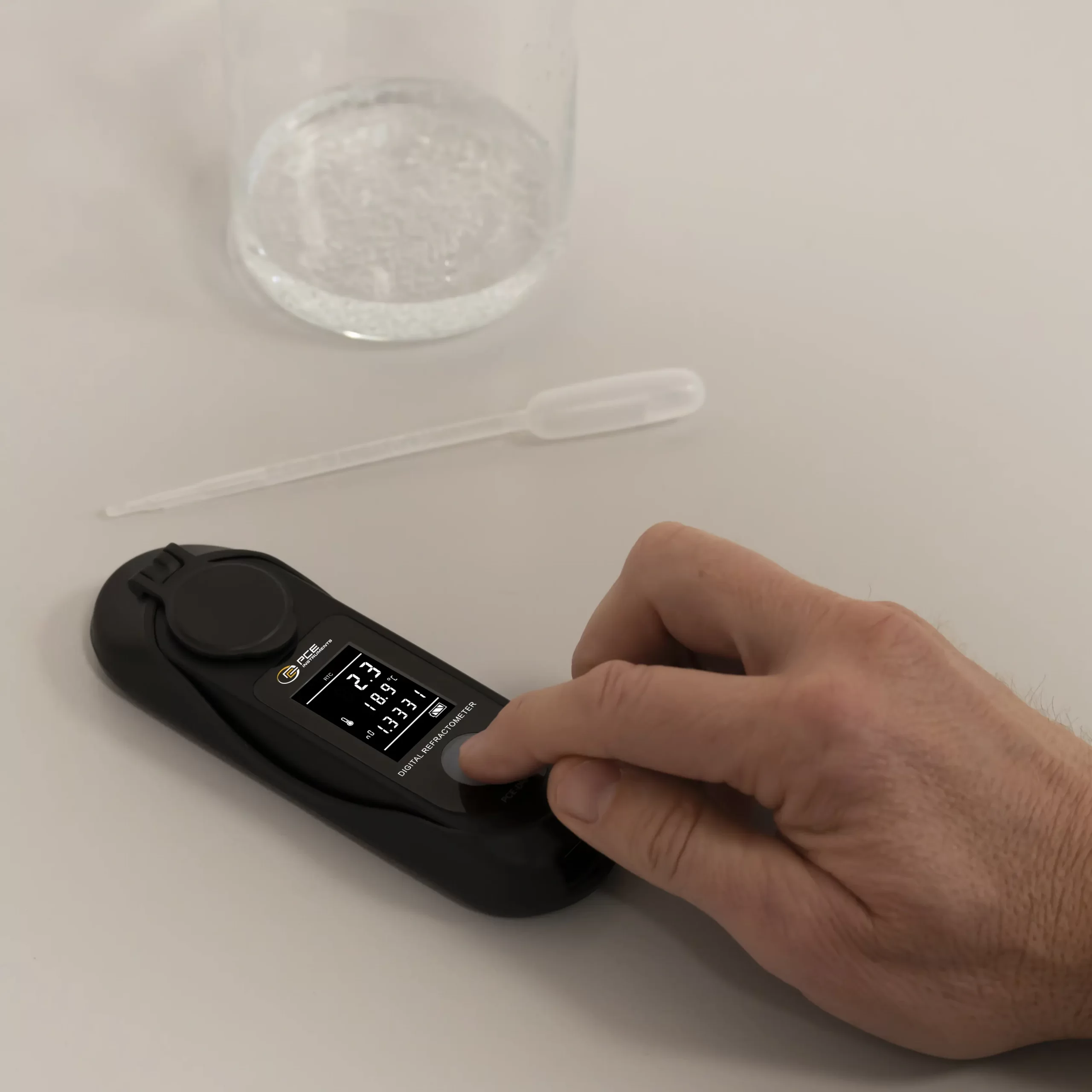

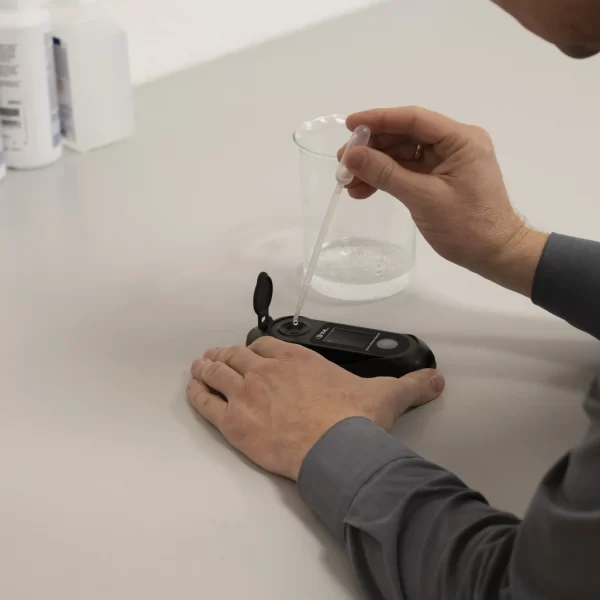

Our refractometer / hand refractometer determines the percentage of potassium carbonate in aqueous media with a measuring range of 0 to 51%. The measurement result and the temperature of the sample are shown on the LCD display of the digital refractometer in two lines. Our refractometer / hand refractometer can measure various parameters such as percentage and the refractive index quickly and accurately with just four to five drops of the sample. Our refractometer / hand refractometer is versatile: checking the potassium carbonate content in glass and ceramics production, in fertilizer production and in the food industry, among other things.

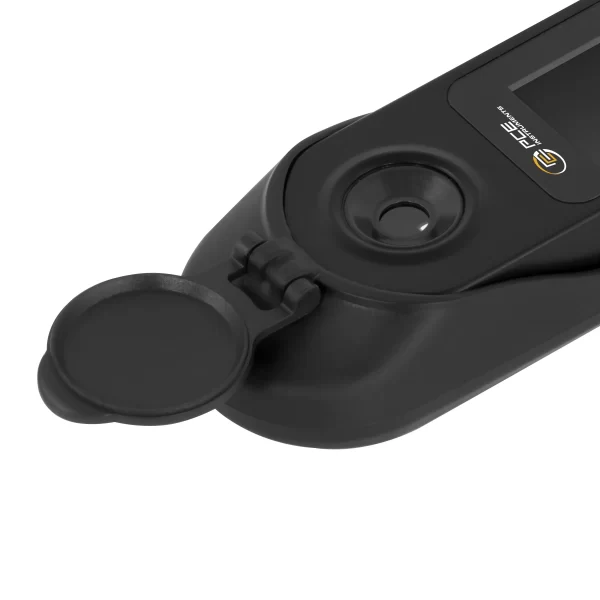

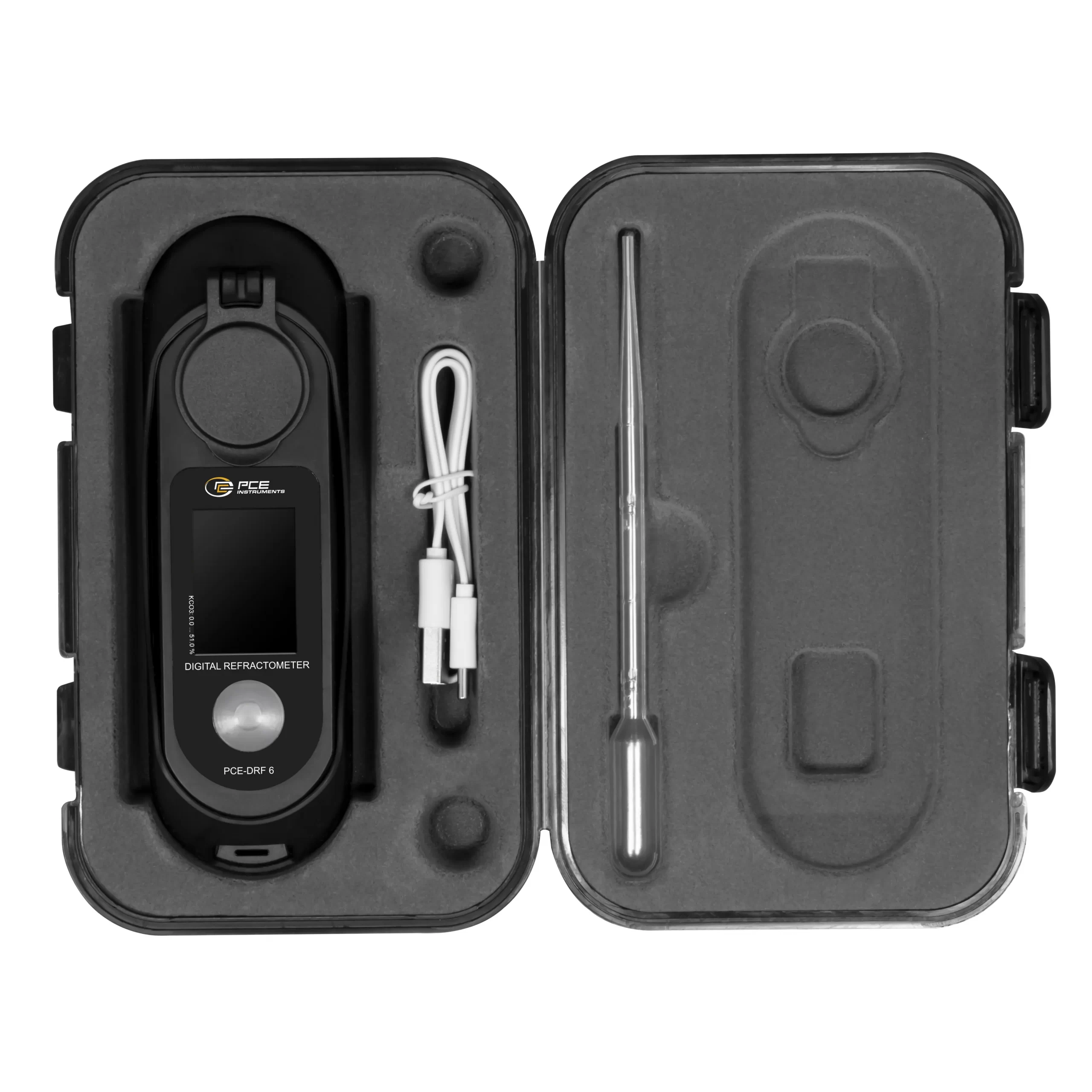

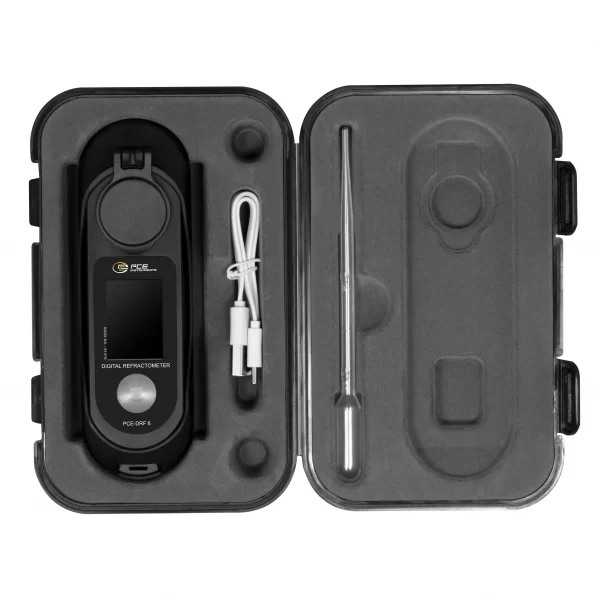

The funnel-shaped stainless steel ring protects the glass prism into which the liquid sample to be measured is placed from damage. The internal light source enables measurements to be taken in poor lighting conditions. Our refractometer / hand refractometer is delivered in a sturdy plastic case with a pipette and charging cable.
Characteristics
Specification
| refractive index | |
| measuring range | 1.333 … 1.465 nD |
| resolution | 0.0001 nD |
| accuracy | ±0.0003 nD |
| potassium carbonate | |
| measuring range | 0 … 51 % |
| resolution | 0.1% |
| accuracy | ±0.2% |
| temperature | |
| measuring range | 0 … 40 °C |
| resolution | 0.1 °C |
| accuracy | ±0.5 °C |
| General technical data | |
| temperature compensation | automatically 10 … 40 °C |
| display type | LCD |
| measurement rate | 1 Hz |
| Automatic shutdown | 1 minute |
| sample amount | 0.2 … 0.3 ml |
| menu language | English (US), English (GB) |
| protection class (device) | IP65 |

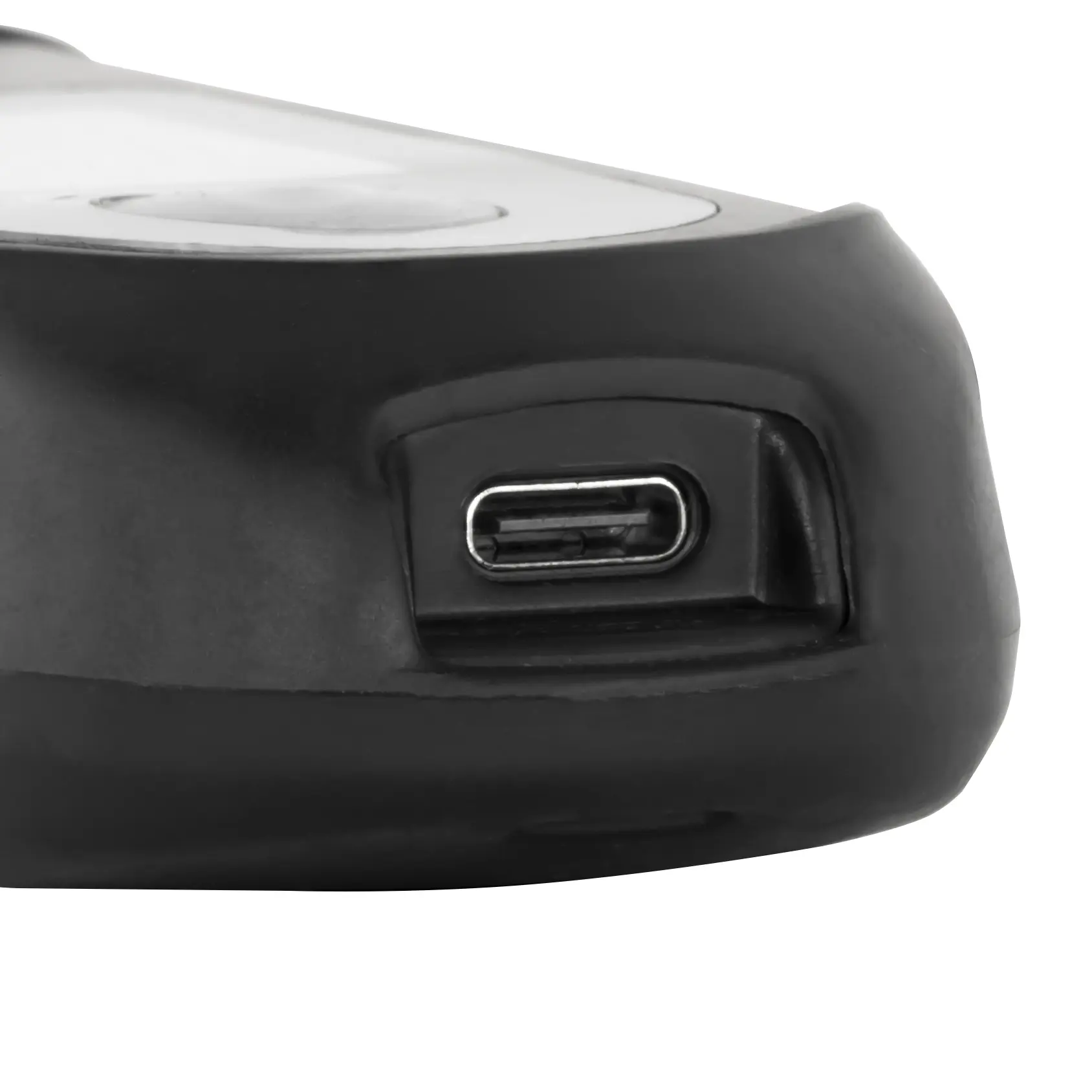

| power supply | 5V DC, 500mA |
| Weight | 115 g |
| operating conditions | 0 … 50 °C, 0 … 95% r. F |
| storage conditions | 0 … 50 °C, 0 … 95% r. F |
| capacity | 500 mAh |
| Dimensions (L x W x H) | 145 x 46 x 27 mm |
