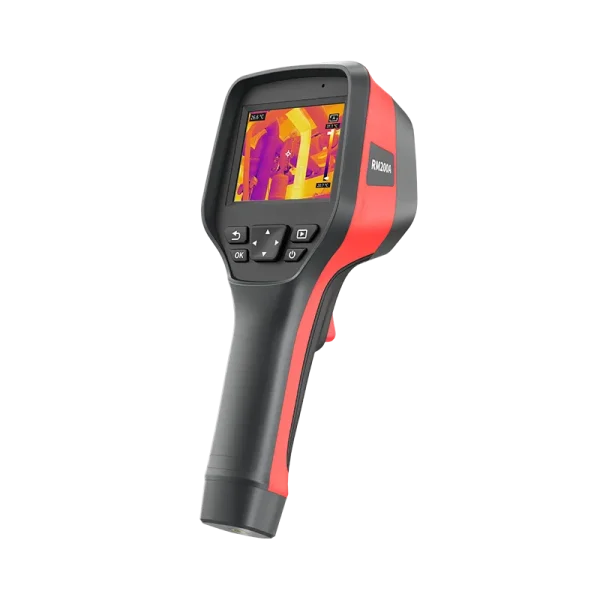

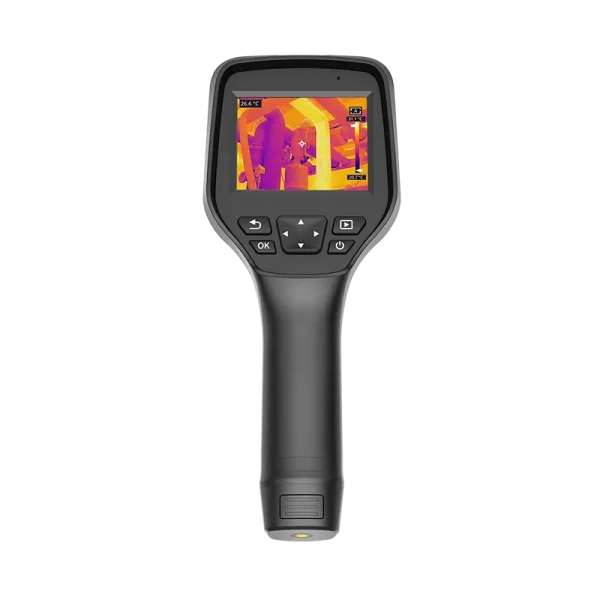

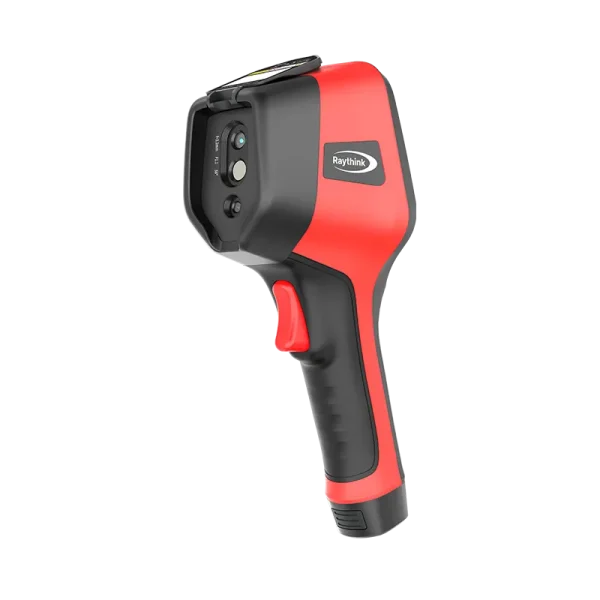

RM200A Handheld Thermal Camera
Views: 662
$0.00
- RM200A is equipped with a self-developed 12μm high thermal sensitivity 256×192 infrared thermal imaging detector.
- Based on intelligent and precise temperature measurement algorithms and HD image algorithms, it strives to be a professional infrared thermal imaging tool with HD images, a large-screen display, and accurate temperature measurement for applications such as electrical maintenance and circuit design.
Description
Powerful Detector, Clear Imaging
- Equipped with a 256×192 self-developed uncooled infrared detector.
- 40mK thermal sensitivity, capable of distinguishing the minimum temperature difference of 0.04°C, capturing small hot and cold spots.
- -20°C~+550°C wide measurement range for monitoring more temperature targets.
Fully-Functional Software
- Manually adjusting the temperature range to meet the needs of multiple scenarios and uses.
- Support multiple image modes + multiple palettes to meet the needs of temperature measurement under different requirements.
- Support the software analysis on PC.
Hardcore Configuration
- Equipped with a 3.5-inch touch screen, supporting center point, hot and cold spot tracking and temperature display.
- IP54, 2m drop protection.
- Standard configuration of 2 quick-removal batteries, with a battery life of up to 8h.
Specifications
| Category | Specifications |
|---|---|
| Thermal Imaging | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Band | 7.5-14μm |
| Thermal Sensitivity (NETD) | ＜40mK (25°C, F1.0) |
| Frame Rate | 25Hz |
| Lens Focal Length |
3.2mm |
| FOV | 56°×42° |
| Spatial Resolution (IFOV) | 3.75mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 0.3m |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Imaging Display | |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Visible Light Camera | 2 megapixels |
| Digital Zoom | 1×, 2×, 4× |
| Palettes | 7 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch | Automatic/Manual |
| Measurement and Analysis | |
| Analysis Functions on Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display |
| Supporting Software | PC (Infrared Analysis Software) |
| Image Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 128GB |
| Text Notes | Support |
| Voice Annotation | Support |
| Image Naming | Auto/manual naming, naming by scanning QR code |
| System Functions | |
| Communication Protocol | Wi-Fi, USB |
| Video Transmission | Support UVC video transmission |
| Laser Pointer | Support |
| Others | |
| Battery | Rechargeable and detachable lithium-ion battery |
| Charging Mode | USB Type-C or desktop charger |
| Battery Life | About 8 hours (about 4 hours per battery) |
| Interface | USB Type-C, SD card |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); Vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | About 635g, 258.4×105.1×102.3mm |
| Authentication | CE/RoHS/CMA, etc. |
| Packing List | Thermal camera, 5V 2A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, portable cloth bag |
Applications

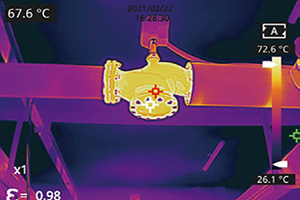

HVAC Maintenance

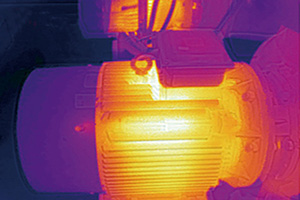

Equipment Maintenance

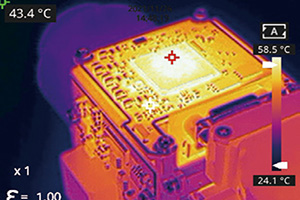

Circuit Design

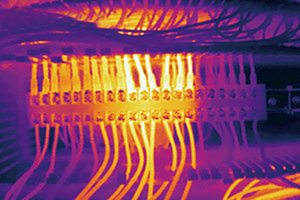

Power Maintenance
