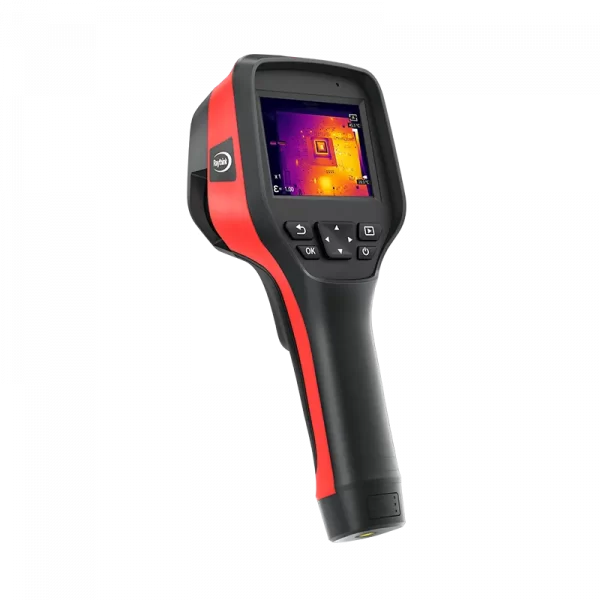

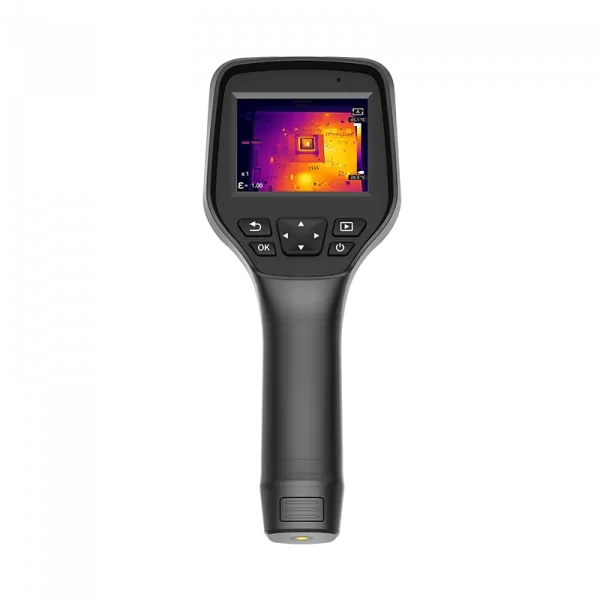

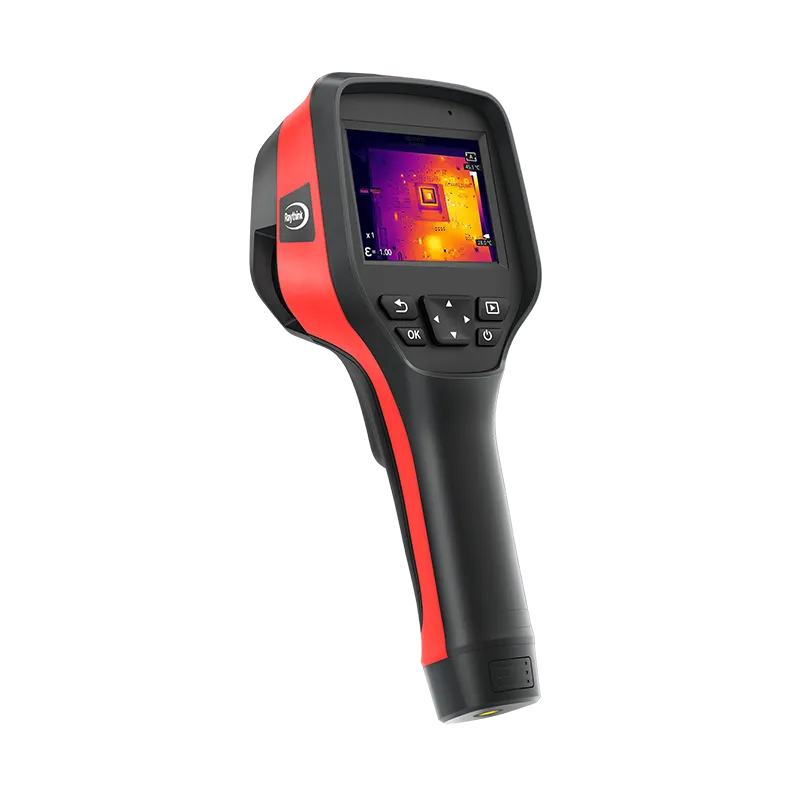

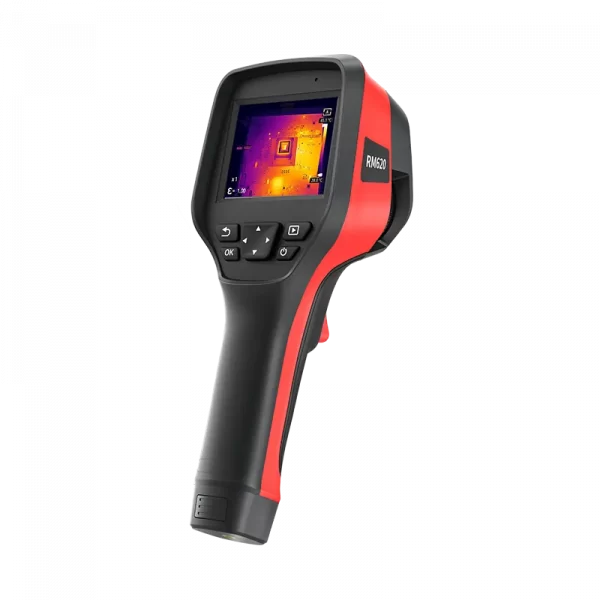

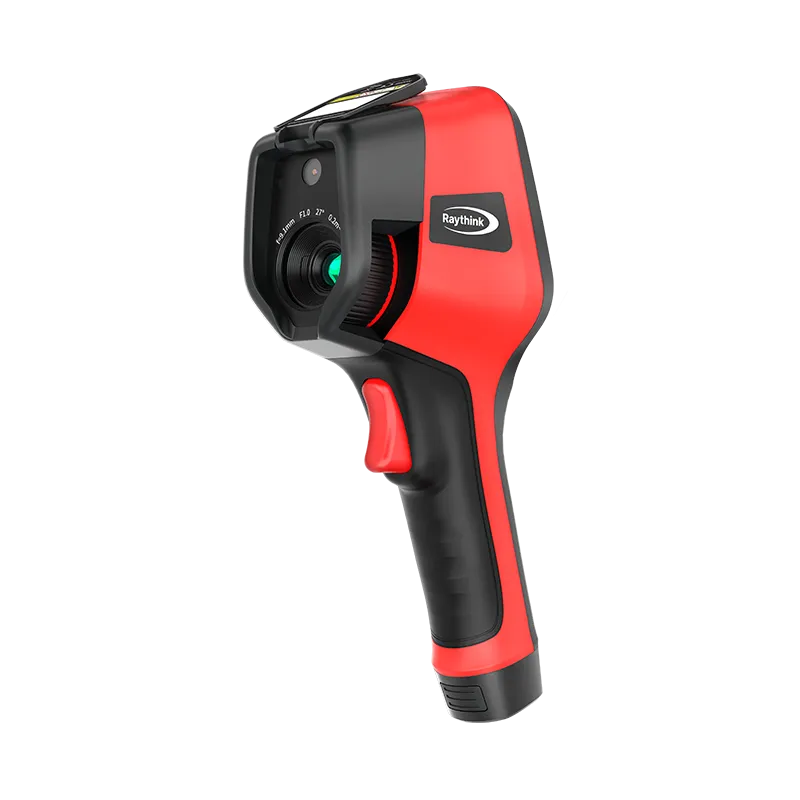

RM620 Handheld Thermal Camera
Views: 627
$0.00
- RM620 is equipped with a 12μm infrared detector, which brings 640×512 high-resolution infrared thermal images and a high sensitivity of 35mK to easily capture small hot spots.
- With a temperature measurement range extendable to 650°C, the device is suitable for electric routine inspection, electronic circuit design, HVAC, industrial manufacturing, petrochemical industry, photovoltaic testing, and many other fields.
Description
High-definition Thermal Images, Capturing Subtle Hot Spots
- Equipped with a self-developed 640×512 high-pixel 12μm advanced-technology detector.
- Capable of distinguishing 0.035°C temperature difference, IFOV as low as 0.63mrad, easily capturing subtle hot spots.
Smart Upgrade for You to Handle Complexity with Simplicity
- Support intelligent shooting, user customization, import and distribution of inspection task packages, simplifying the task process and improving routine inspection efficiency.
- Support temperature trend analysis, helping users observe temperature distribution and changes in real time.
- Support isotherm function to highlight the temperature segments or areas that need attention.
- Support analysis software on the PC client and secondary analysis of video files.
Upgraded Performance for More Application Scenarios
- -20°C~+650°C wider temperature range, suitable for more industrial temperature measurement scenarios.
- IP54 and 2m drop protection, solid and durable.
- Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.
Specifications
| Category | Specifications |
|---|---|
| Thermal Imaging | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Band | 7.5-14μm |
| Thermal Sensitivity (NETD) | ＜35mK (25°C, F1.0) |
| Frame Rate | 30Hz |
| Lens Focal Length | 19mm |
| FOV | 23°×18° |
| Spatial Resolution (IFOV) | 0.63mrad |
| Focusing Mode | Manual focusing |
| Measurement Range | -20°C~+150°C; 100°C~650°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Imaging Display | |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Visible Light Camera | 5 megapixels |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Palettes | 10 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch | Automatic/Manual |
| Measurement and Analysis | |
| Analysis Functions on the Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
| Image Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 512GB |
| Text Notes | Support |
| Voice Annotation | Support |
| Video Functions | |
| Radiation Infrared Video Recording | Support |
| Non-radiation Infrared or Visible Light Video Recording | Support |
| System Functions | |
| Intelligent Routine Inspection | Support |
| Communication Protocol | Wi-Fi, USB |
| Video Transmission | Support UVC video transmission |
| Laser Pointer | Support |
| Others | |
| Battery | Rechargeable and detachable lithium-ion battery |
| Charging Mode | USB Type-C or desktop charger |
| Battery Life | About 6 hours (about 3 hours per battery) |
| Interface | USB Type-C, SD card |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); Vibration: 2.5g (IEC 60068-2-6) |
| Weight and Dimensions | About 680g, 258.4×105.1×102.3mm |
| Authentication | CE/RoHS/CMA, etc. |
| Packing List | Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box |
Applications
Circuit Design
Construction Inspection
Electric Routine Inspection
Industrial Manufacturing
