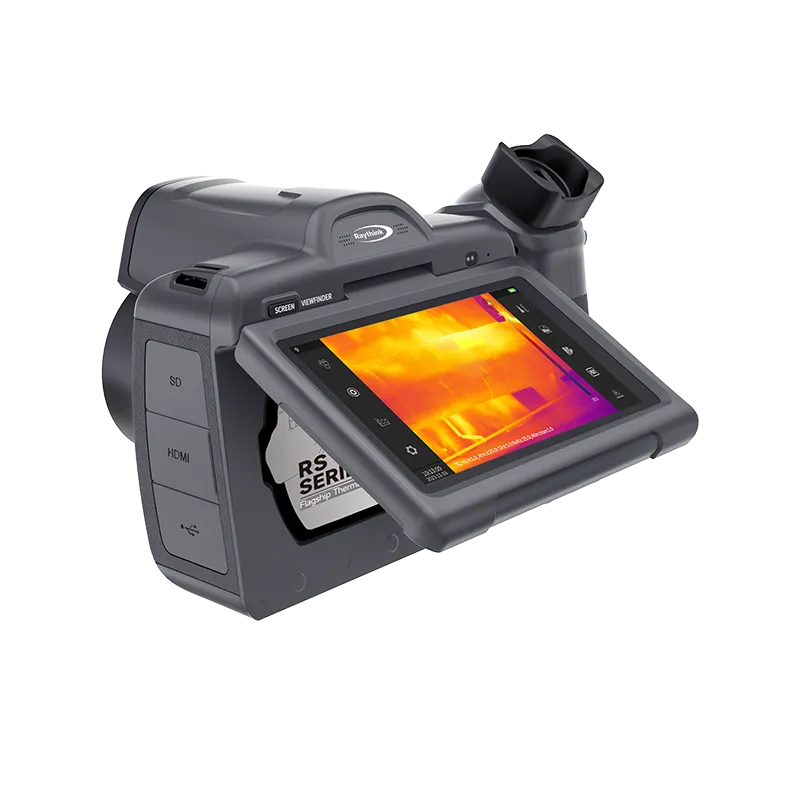

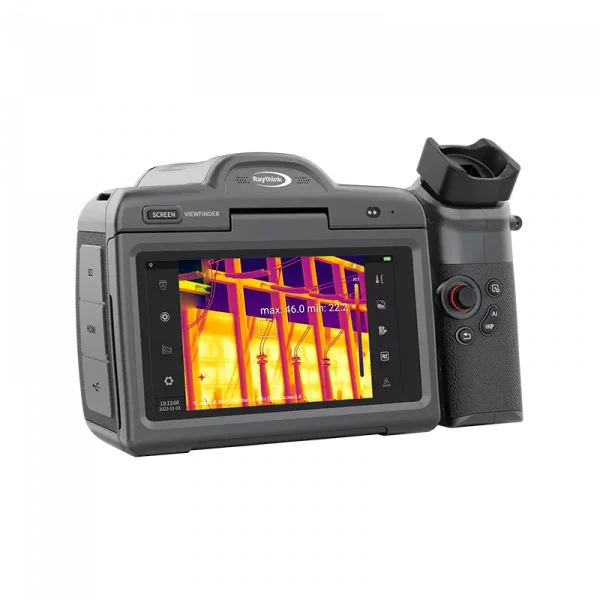

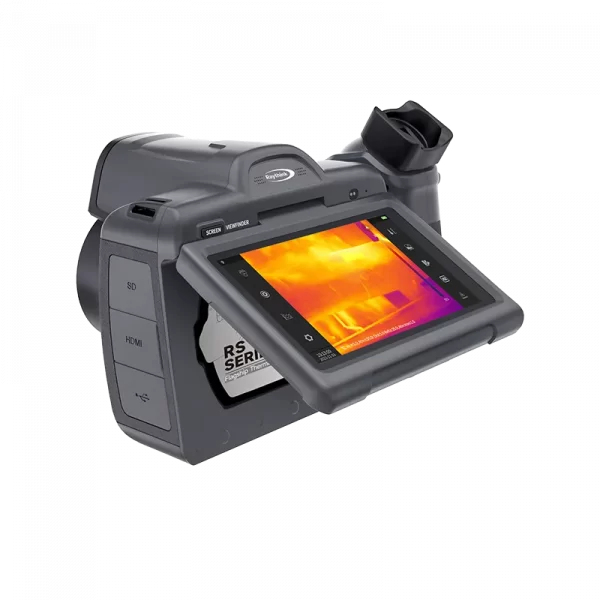

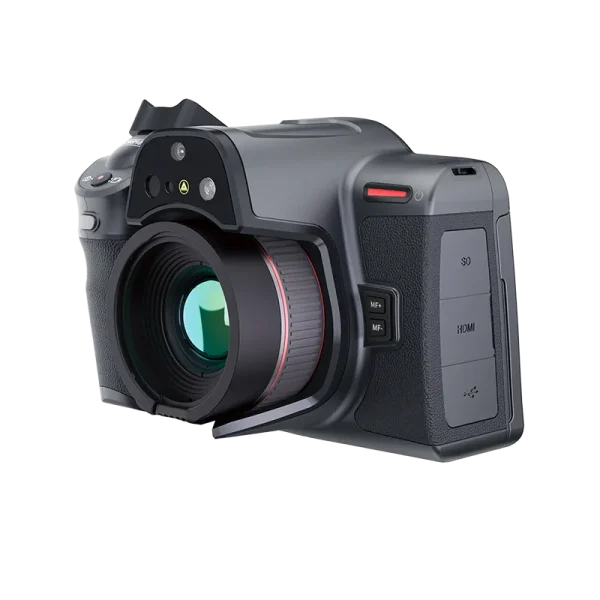

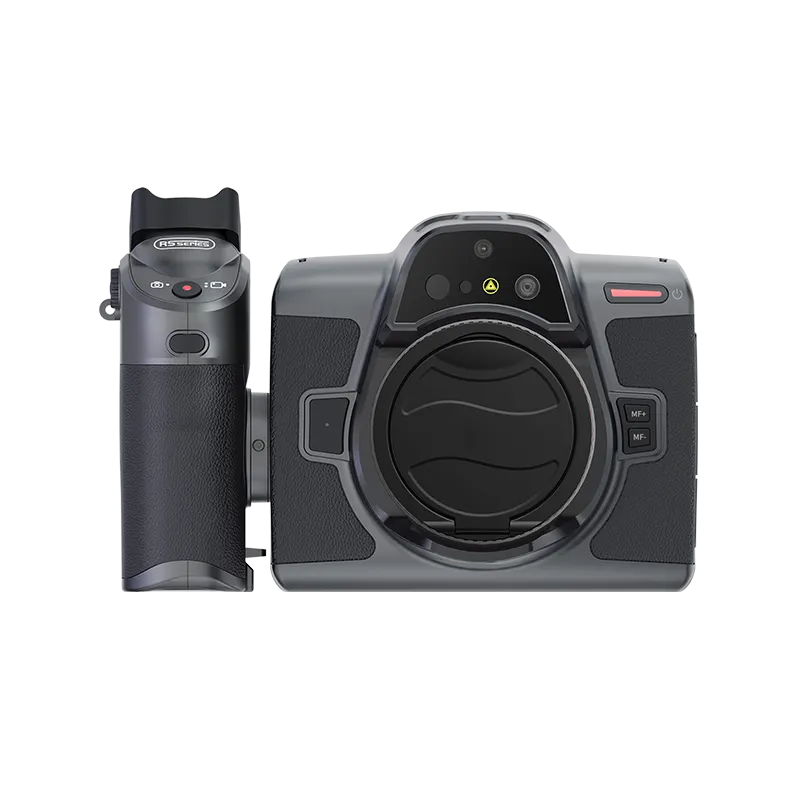

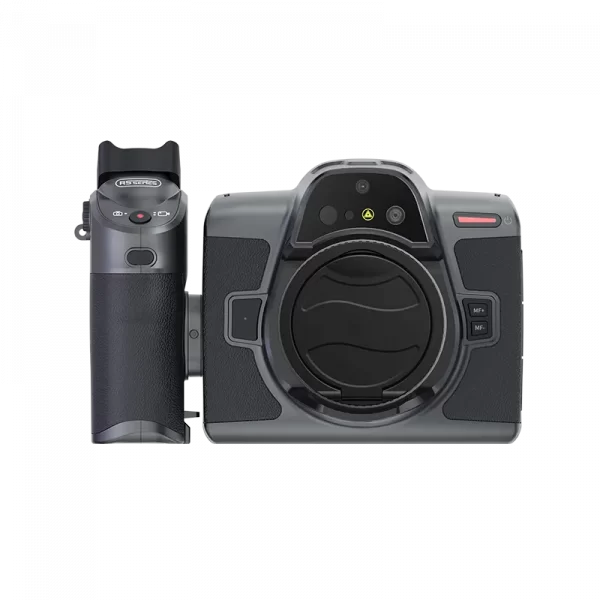

RS1280 Flagship Thermal Camera
Views: 827
$0.00
- RS1280 is RayThink Technology’s first 1280×1024 high-performance, high-pixel thermal camera for scientific research.
- Equipped with a self-developed new-generation VOx infrared detector with a thermal sensitivity as low as 25mK, this device uses intelligent image algorithms and precise temperature measurement algorithms to provide clearer infrared images and higher measurement accuracy.
- Android operating system, intelligent applications & miscellaneous functions, and a 5.5-inch angle-adjustable display and rotatable handle bring a better experience meeting the ergonomics requirements.
Description
Clear Thermal Images, Precise Temperature Measurement
- Equipped with a 12μm uncooled infrared detector, with a resolution of 1280×1024, providing up to 2560×2048 HD super-resolution infrared thermal images.
- NETD as low as 25mK and a high measurement accuracy to generate more delicate thermal images.
Various Lenses and Fast Focusing
- Standard 25° lens, with optional wide-angle, telephoto, super telephoto, and macro lenses, flexible for diverse scenarios.
- Support multiple focusing methods such as manual focus, auto focus, laser focus, auto focus, and continuous auto-focusing.
AI Empowerment for Efficient Work
- Android operating system, more convenient to operate
- Support intelligent image stabilization, making temperature measurement images more stable
- Support laser rangefinding and area measurement.
- Support up to 35 points/lines/areas to analyze more temperature details in the screen.
Specifications
| Category | Specifications |
|---|---|
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Super Resolution | 2560×2048 |
| Spectral Band | 7.5-14μm |
| Thermal Sensitivity (NETD) | ＜25mK (25°C,F1.0) |
| Frame Rate | 30Hz |
| Lens Focal Length | Standard: 34.9mm; Wide-angle: 19.8mm; Telephoto: 72.9mm; Macro: 17.8mm; Super Macro: 15.2mm |
| FOV | Standard: 25°×20°; Telephoto: 12°×9.6°; Wide-angle: 45°×36° |
| Spatial Resolution (IFOV) | Standard: 0.34mrad; Telephoto: 0.17mrad; Wide-angle: 0.6mrad; Macro: 50μm; Super Macro: 25μm |
| Focusing Mode | Manual focus, electric micro focus, one-button center focus, automatic center focus, single-touch automatic focus, laser-assisted focus |
| Minimum Imaging Distance | Standard: 0.5m; Telephoto: 2.3m; Wide-angle: 0.2m; Macro: 46mm; Super Macro: 13mm |
| Measurement Range | Standard: -20°C~+150°C (low); 150°C |
| Display | 5.5-inch LCD touch screen, resolution 1920×1080 |
| Visible Light Camera | 13 megapixels |
| Digital Zoom | 1–15 times, continuously adjustable roller |
| Palettes | 19 options |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch | Support |
| Laser Rangefinding | Support |
| Area Measurement | Support |
| Position | Support |
| Temperature Difference Analysis | Support |
| Trend Analysis | Supports temperature trend recording and analysis |
| Image Freezing | Support |
| Analysis Report | PDF format. Support editing and template importing on PC client |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
| Storage Medium | Standard 64GB MicroSD. Supports SD, SDHC, SDXC, up to 2TB |
| Text Notes | Support |
| Voice Annotation | Support |
| Radiation Infrared Video Recording | Supports compressed full radiation video recording (.irv), up to 15Hz video |
| Non-radiation Infrared or Visible Light Video Recording | Standard MP4 video recording |
| Radiation Infrared Video Stream Transmission | Analysis at about 25Hz on PC |
| Non-radiation Infrared Video Stream Transmission | RTSP H.264 |
| Video Resolution | 1920×1080 |
| Intelligent Image Stabilization | Support |
| Intelligent Panoramic Stitching | Support |
| Intelligent Routine Inspection | Support; task package import, editing, standard & auto-naming of images |
| Routine Inspection Record Self-inspection | Support |
| Dual-Spectrum Video Recording | Simultaneous infrared and visible light video recording, in MP4 format |
| Communication Protocol | Wi-Fi, Bluetooth, USB |
| Voice Control | Voice assistant, quick command recognition |
| Flashlight | Support |
| Microphone/Speaker | Support |
| Battery | 9000mAh lithium-ion battery, field-replaceable, fast charging |
| Charging Mode | USB Type-C or desktop charger |
| Battery Life | Continuous operating time ≥ 3 hours (depending on environment and conditions) |
| Interface | USB3.0 Type-C, SD card, SIM card, Mini HDMI |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -15°C~+50°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -40°C~+70°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); Vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | 1.7kg (with battery), 140×210×115mm |
| Authentication | CE/RoHS/CMA, etc. |
Applications
Electric Routine Inspection

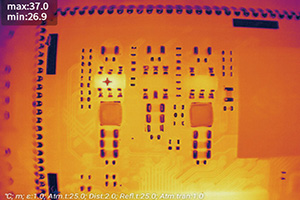

Microelectronics

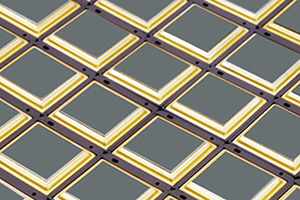

High-End Scientific Research

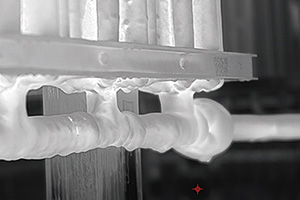

Non-destructive Testing
