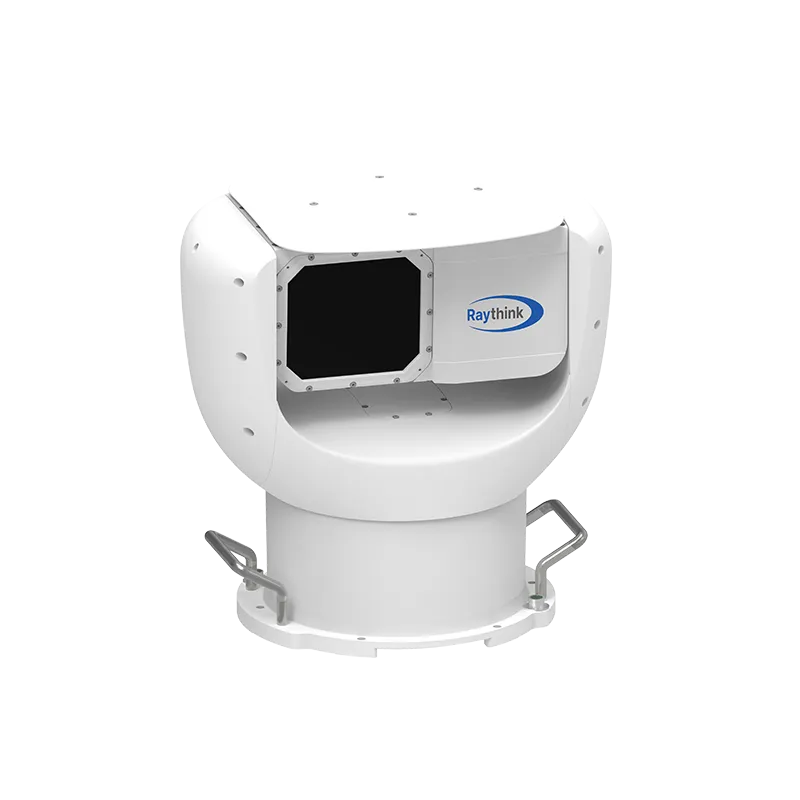

SilentW-U12 Series Infrared Panoramic Camera
Views: 722
$0.00
- SilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image.
- SilentW is able to detect multiple objects at same time and can be widely used in border/coastal area, oil/gas files and mines to make a comprehensive security solution.
Description
1. Industry-Leading Infrared Detector
Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
2. 360° Panoramic Monitoring
Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
3. Multi-Target Detection

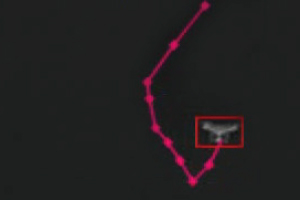

Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 8km.
4. Link with PTZ Camera
Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.
5. Intelligent Detection Algorithm

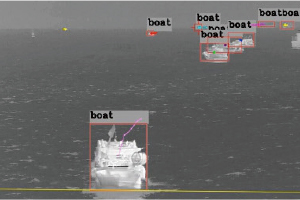

Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
6. Low Power Consumption
Low power consumption, can be powered by solar, reduce the needs of infrastructure
Specifications
| Category | SilentW-U1255 | SilentW-U1275 |
|---|---|---|
| Detector Type | Uncooled | Uncooled |
| Detector Resolution | 1280×1024 | 1280×1024 |
| Focal Length | 55mm | 75mm |
| Panoramic Image Resolution | 28792×1024 | 39200×1024 |
| Frame Rate | 180°/s | 164°/s |
| Horizontal FOV Range | 360° | 360° |
| Vertical FOV | 12.7° | 9.4° |
| Tilt Range | -20°~+35° | -20°~+35° |
| Protection | IP66 | IP66 |
| Dimension (mm) | 382×260×386 | 382×260×386 |
| Weight | 20kg | 20kg |
| Work Environment | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Power | DC 30V 5A | DC 30V 5A |
| Power Consumption | ＜ 35W | ＜ 35W |
| Detection Distance | ||
| UAV (450mm) | 1km | 1.5km |
| Human (1.7m) | 1.5km | 2km |
| Vehicle (4m) | 3km | 4km |
| Ship (8m) | 6km | 8km |
Applications
Border Security
Coastal Security
Oil and Gas Pipelines
Critical Infrastructure Protection
