Spectrophotometer PCE-CSM 4

The
Spectrophotometer proves to be a good multitasking device. It is designed to
measure the color spectrum of various objects. Light consists of a
broad spectrum of colours which are not always purely white, black or
blue. A light-source illuminates an object, which then absorbs part of
that light and reflects another one. That reflected light can be then
detected by a sensor in order to determine the reflected wavelengths and
thus calculate its colour. Spectrophotometers are often applied in areas of
quality control in industrial sectors. Spectrophotometer of the PCE-CSM series are
applied especially in industries where the characteristics of colors
play a big role. Whether it is dental technology, painting industries or
for the production of plastic bags, the Spectrophotometer PCE-CSM 4 is an
ideal product for quality management and thus assure highest
reliability, whenever it is important to assure a certain standard in
optic quality.

The Spectrophotometer supports an ergonomic design and features
a user-friendly menu navigation. The Spectrophotometer PCE-CSM 4 has a large
measuring aperture of 20 mm. The

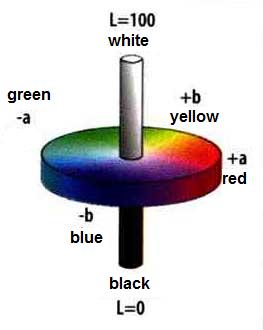

supported colour spaces of the Spectrophotometer PCE-CSM 4 are
CIEL*a*b*C*h, CIEL*a*b and CIEXYZ. Thus the Spectrophotometer is designed for
application in professional industries.

Another advantage of the
Spectrophotometer of the PCE-CSM series is that it supports a vertical
justification. This means that the whole device does not need to be
placed on the object to analyse, but only the part with the sensor in
it. The industrial perspective of it is that this method allows the
measuring of damp objects, textiles and even food. The Spectrophotometer PCE-CSM 4 is therefore ideally applied for measurements of e.g. meat,
bananas or tomatoes. Due to the software “CQCS3” that is
included in the delivery, the measured data can be read out on a
computer or laptop for a digital overview.

–
Rechargeable Lithium-Ion battery
– Autom. calibration of black-and-white contrast
– Continuous performance
– Designed for food industry

–
Measures various colours
– Application on different surfaces
– Simplified user-interface
– Software included in delivery
