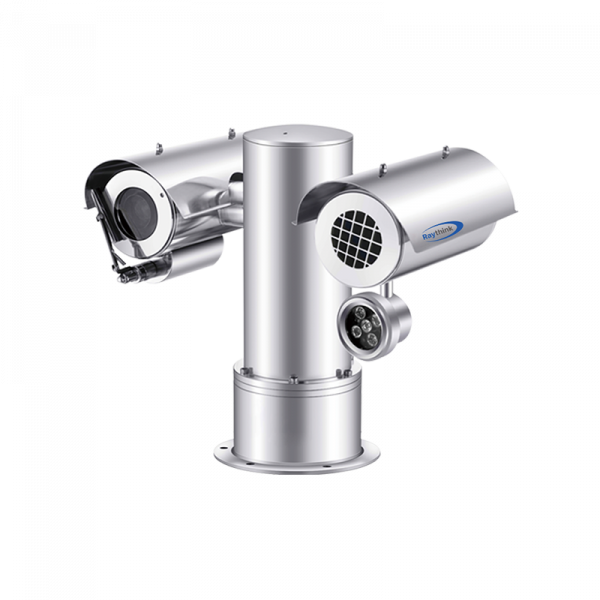

Name: TE464 Dual Spectrum Explosion-Proof PTZ Camera
SKU: 14009
Availability: InStock

TE464 Dual Spectrum Explosion-Proof PTZ Camera

$0.00

TE464 dual-spectrum explosion-proof PTZ camera equipped with an HD visible light camera and a 640×512 thermal imaging camera. TE464 can rotate 360° to view all surroundings. 304 or 316 stainless steel is using for housing to let the camera operate in hazardous area.

Description

Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

24/7, all-weather security monitoring with dual thermal and visible light imaging.

3. Dual explosion-proof certification

Certified with dual explosion-proof classification for dust and gas: Ex db IIc T6 Gb and Ex tb IIc T80 °C D.

Measuring range -20℃ to 550℃, accuracy ±2℃ or 2%.

5. Fire point detection

It features a built-in intelligent fire detection algorithm for efficient and accurate monitoring.

Specifications

Category	TE464
Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14 μm
NETD	≤40mK (@25°C, F#1.0, 25Hz)
Resolution	640×512
Pixel Pitch	12 μm
Focal Length	25mm
Optical Module
Sensor	1/1.8″ 4MP CMOS image sensor
Resolution	2688×1520
Focal Length	6.5mm~130mm
PTZ
Pan	360° continuous rotation
Tilt	-90°~+90°
Temperature Measurement
Measurement Range	-20℃~+550℃
Measurement Accuracy	±2℃ or ±2%
Measurement Rules	Supports 4 temperature measurement rules (full frame, point, line, area)
Smart Function
Fire Detection	Support
VCA	Line Crossing & Intrusion detection
Linkage Action	Video/Snapshot/Email/Alarm output/Sound and light alarm
System Interface
Power	85V~260V AC/24V DC 3A (optional)
Network	1×RJ45 10M/100M self-adaptive interface
Alarm Input	1×input
Alarm Output	1×output
RS485 Interface	1×RS485
General
Work Environment	-40℃~+60℃; <90%RH
Explosion Proof	Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃
Protection	IP68
Shell Material	304/316L stainless steel, suitable for use in corrosive environments such as chemical and acid-base conditions
Power Consumption	≤100W (thermostat activated)
Dimensions (mm)	436×296×406
Weight	27kg

Applications

New Energy

Metallurgy

Textiles

Food
