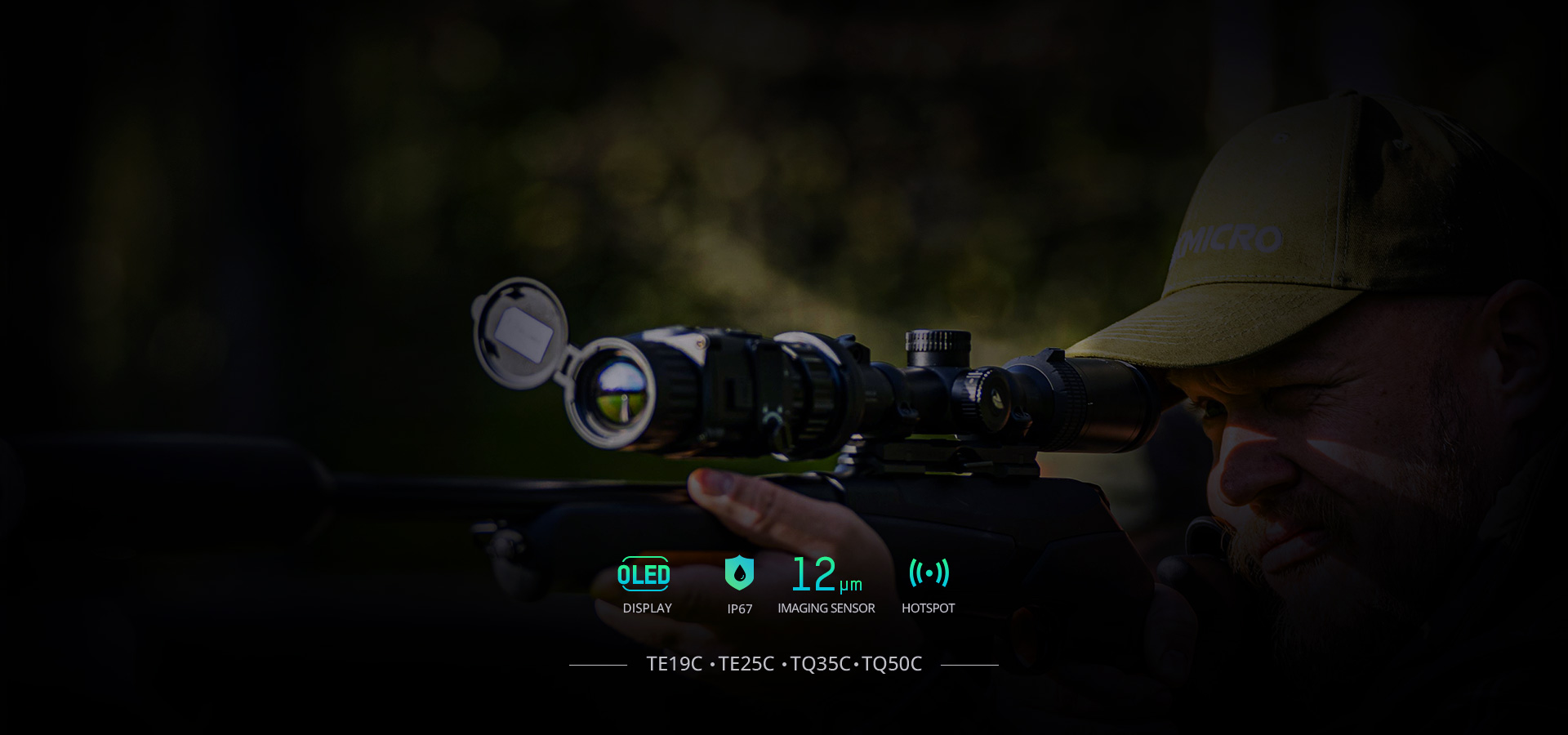

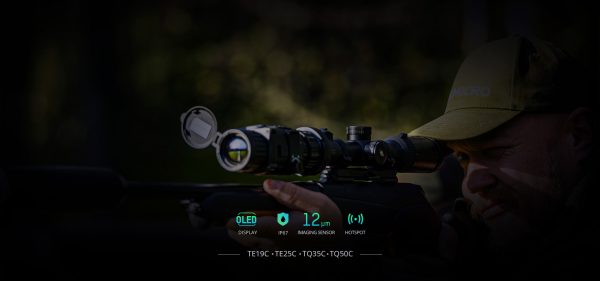

HIKMICRO THUNDER PRO

Views: 1065

$0.00

More the vital gets

Additional information

Model

TE19 2.0, TE25 2.0, TH25P 2.0, TH35P 2.0, TQ35 2.0

Description

Advanced Imaging Sensor

THUNDER Pro features the new VOx 12μm sensor to provide exceptional
thermal image clarity and detail.

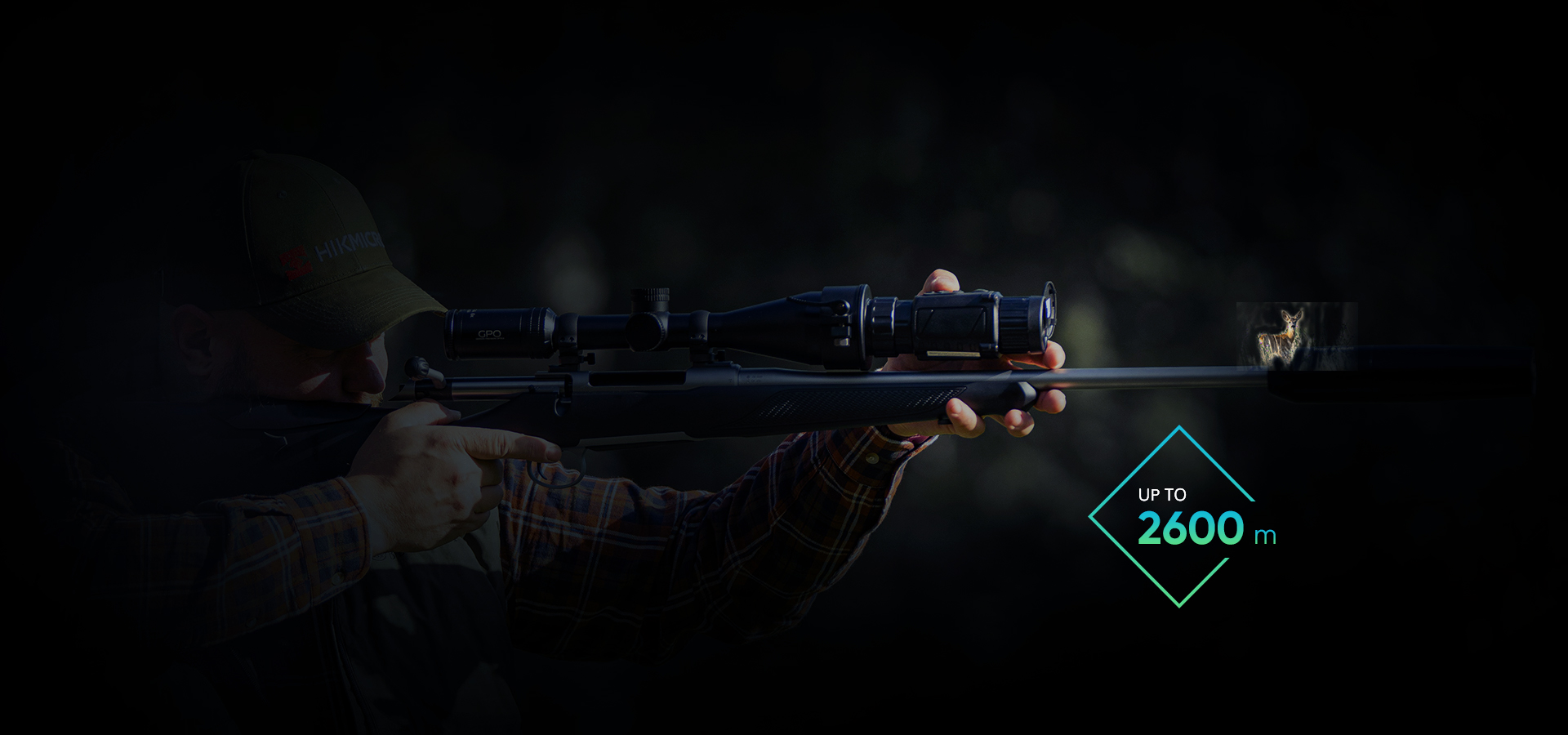

Long Detection Range

With the advanced imaging sensor and lens, a 1.7 m object can be detected from a distance, up to 2600 meters.

Make zeroing easier

Zeroing the scope by marking the offset on the reticle after the first shot. Five zeroing profiles are configurable for different distances.

Replaceable Batteries

Two CR123A batteries are included in the package box, which can
be installed and replaced in a short while.

High Shock Resistance

Metal housing rugged components provide high shock resistance up to 750 g/ms on larger calibers up to .375 H&H, 12-gauge and 9.3×64.

Specification

Product Model HM-TR12-19XG/W-TE19C HM-TR12-19XG/CW-TE19C HM-TR13-35XG/W-TH35PC HM-TR13-35XG/CW-TH35PC HM-TR16-35XG/W-TQ35C
Thermal Module
Image Sensor Uncooled FPA Uncooled FPA Uncooled FPA Uncooled FPA Uncooled FPA
Max. Resolution 256 × 192 256 × 192 384 × 288 384 × 288 640 × 512
Frame Rate 25 Hz 25 Hz 50 Hz 50 Hz 50 Hz
Pixel Interval 12 μm 12 μm 12 μm 12 μm 12 μm
Response Waveband 8 μm to 14 μm 8 μm to 14 μm 8 μm to 14 μm 8 μm to 14 μm 8 μm to 14 μm
NETD < 35 mK (@25°C, F#=1.0) < 35 mK (@25°C, F#=1.0) < 35 mK (@25°C, F#=1.0) < 35 mK (@25°C, F#=1.0) < 35 mK (@25°C, F#=1.0)
Lens (Focal Length) 19 mm 19 mm 35 mm 35 mm 35 mm
IFOV 0.63 mrad 0.63 mrad 0.343 mrad 0.343 mrad 0.343 mrad
Field of View 9.24° × 6.94° 9.24° × 6.94° 7.5° × 5.7° 7.5° × 5.7° 12.5° × 10.0°
Min. Focusing Distance 1 m 1 m 3.5 m 3.5 m 3.5 m
Aperture F1.0 F1.0 F1.0 F1.0 F1.0
Magnification 1X 1X 1X 1X 1X
Image Display
Display 1024×768, 0.39 inch, OLED 1024×768, 0.39 inch, OLED 1024×768, 0.39 inch, OLED 1024×768, 0.39 inch, OLED 1024×768, 0.39 inch, OLED
Palettes Black hot, white hot, red hot, fusion Black hot, white hot, red hot, fusion Black hot, white hot, red hot, fusion Black hot, white hot, red hot, fusion Black hot, white hot, red hot, fusion
Exit Pupil 22mm 22mm 22mm 22mm 22mm
Eye Relief 10mm 10mm 10mm 10mm 10mm
General
Protection Level IP67 IP67 IP67 IP67 IP67
Weight 419 g 419 g 375 g 375 g 375 g
Dimension 155.7mm x 67.1mm x 59.0mm 155.7mm x 67.1mm x 59.0mm 155.7mm x 67.1mm x 59.0mm 155.7mm x 67.1mm x 59.0mm 155.7mm x 67.1mm x 59.0mm
Work Temperature/Humidity -20°C to 55°C (-4°F to 131°F) -20°C to 55°C (-4°F to 131°F) -20°C to 55°C (-4°F to 131°F) -20°C to 55°C (-4°F to 131°F) -20°C to 55°C (-4°F to 131°F)
Vibration & Shock 750 g/1 ms 750 g/1 ms 750 g/1 ms 750 g/1 ms 750 g/1 ms
Port Type-C Type-C Type-C Type-C Type-C
System
Record Video Yes Yes Yes Yes Yes
Capture Snapshot Yes Yes Yes Yes Yes
Hotspot Yes Yes Yes Yes Yes
Standby Mode Yes No Yes No Yes
Storage Built-in EMMC (16 GB) Built-in EMMC (16 GB) Built-in EMMC (16 GB) Built-in EMMC (16 GB) Built-in EMMC (16 GB)
Uniformity Correction Auto, Manual, External Correction Auto, Manual, External Correction Auto, Manual, External Correction Auto, Manual, External Correction Auto, Manual, External Correction
PIP Yes Yes Yes Yes Yes
DPC Yes Yes Yes Yes Yes
Hot Track Yes No Yes No Yes
Reticle Yes Yes Yes No Yes
Distance Measurement Yes Yes Yes Yes Yes
Power Supply
Power Supply 5 VDC, 2 A 5 VDC, 2 A 5 VDC, 2 A 5 VDC, 2 A 5 VDC, 2 A
Battery Type Replaceable CR123A (1600mAh, 3.0V) Replaceable CR123A (1600mAh, 3.0V) Replaceable CR123A (1600mAh, 3.0V) Replaceable CR123A (1600mAh, 3.0V) Replaceable CR123A (1600mAh, 3.0V)
Battery Operating Time 4.5 h (25 °C, with hotspot off) 4.5 h (25 °C, with hotspot off) 4 h (25 °C, with hotspot off) 4 h (25 °C, with hotspot off) 3.25 h (25 °C, with hotspot off)
Battery Capacity Display Yes Yes Yes Yes Yes
Anti-reverse Battery Connection Yes Yes Yes Yes Yes
Overvoltage Protection Yes No Yes No Yes
Type-C Power Supply Supports external power supply Supports external power supply Supports external power supply Supports external power supply Supports external power supply

Advantages

  1. High Image Quality – Up to 640×512 pixels and high sensitivity detector(less than 35mK NETD)
    gives a clearer picture of the target.
  2. Large OLED Display High resolution 0.39” 1024 x 768 OLED is capable of lower power consumption, wider viewing angle, and richer color.
  3. Optional Reticle Type
    10 reticle patterns are selectable, and 4 colors are available.
  4. IP67 Waterproof Rated
    IP67 rated design creates protection from the rain, snow, even when it drops into 1 meter of the water up to 30 minutes.

Video

Download

ADDITIONAL INFORMATION

Model TE19C, TE25C, TQ35C, TQ50C
