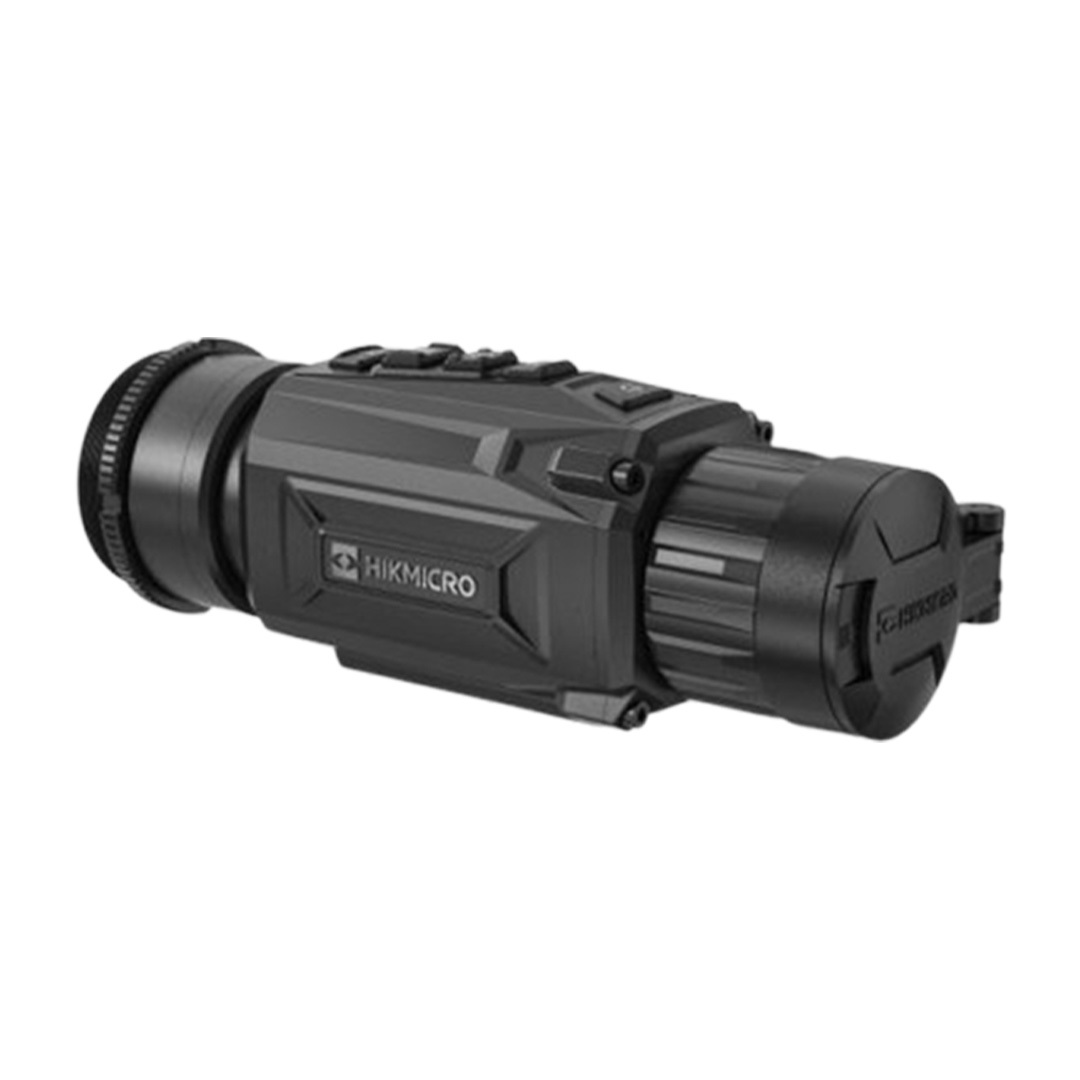

HIKMICRO THUNDER 2.0
Views: 1412
$3,200.00
Game in Sight, Like Never Before
Ultra Clear Image, Impressive Detail Recognition
Powerful Battery Performance, Game Non-stop
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | TE19 2.0, TE25 2.0, TH25P 2.0, TH35P 2.0, TQ35 2.0 |
|---|
Description
High Thermal Sensitivity, Perfect Detail Recognition
With an extremely high thermal sensitivity (NETD<20mK) detector combining a powerful thermal camera of up to 640×512 @12μm @ F1.0, it ensures informative images and an enhanced identification capability even under the slightest temperature differences.
Advanced Appearance Design for Great Game Convenience
New Focus Knob Design Meets Convenience
The focus knob design makes the focus ring no longer a hassle. This enables a more convenient and natural posture of the hand, and smooth and precise lens focus adjustments with small finger moves.

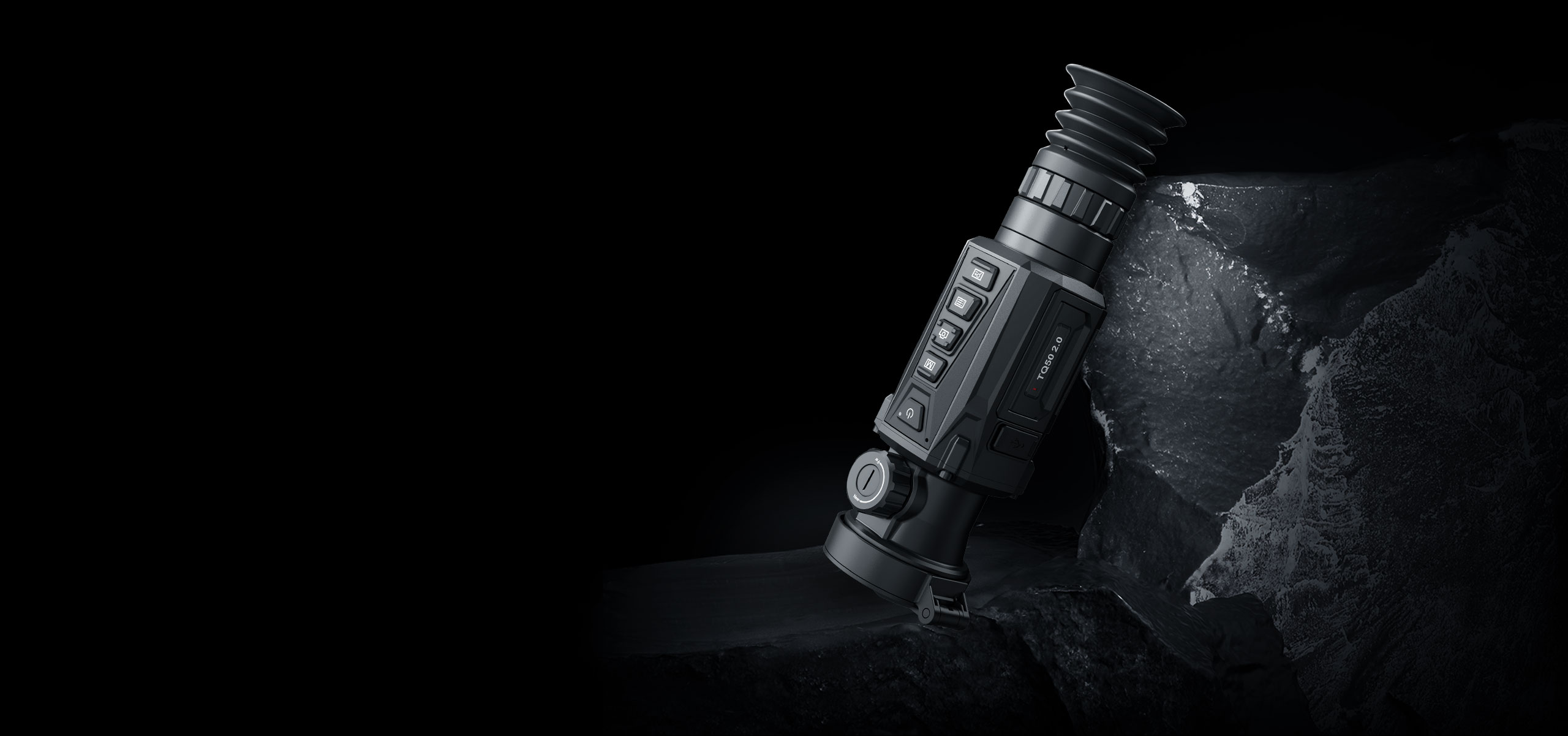

Magnesium Alloy Design Meets Long-lasting Use
Magnesium alloy design with a lightweight, compact size and an improved stability meets the long-lasting use requirement.

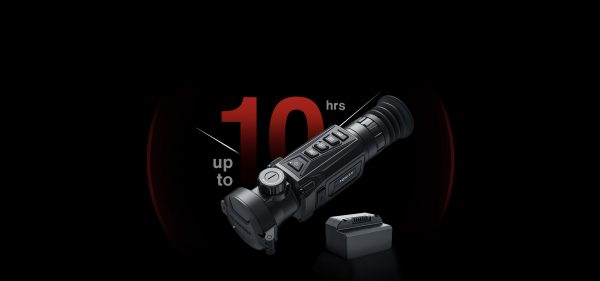

Replaceable and Rechargeable High Capacity Battery
The new battery pack extends working time up to 10h. A spare pack gives the freedom to operate as long as needed even for a full day. Besides, the battery pack performs superior to others, especially in a low-temperature environment.
New Battery Charging Method
The battery is able to charge both in the device and in the charging base. Plug and go.
Software Revolution More Easily Brings An Accurate Visual Game

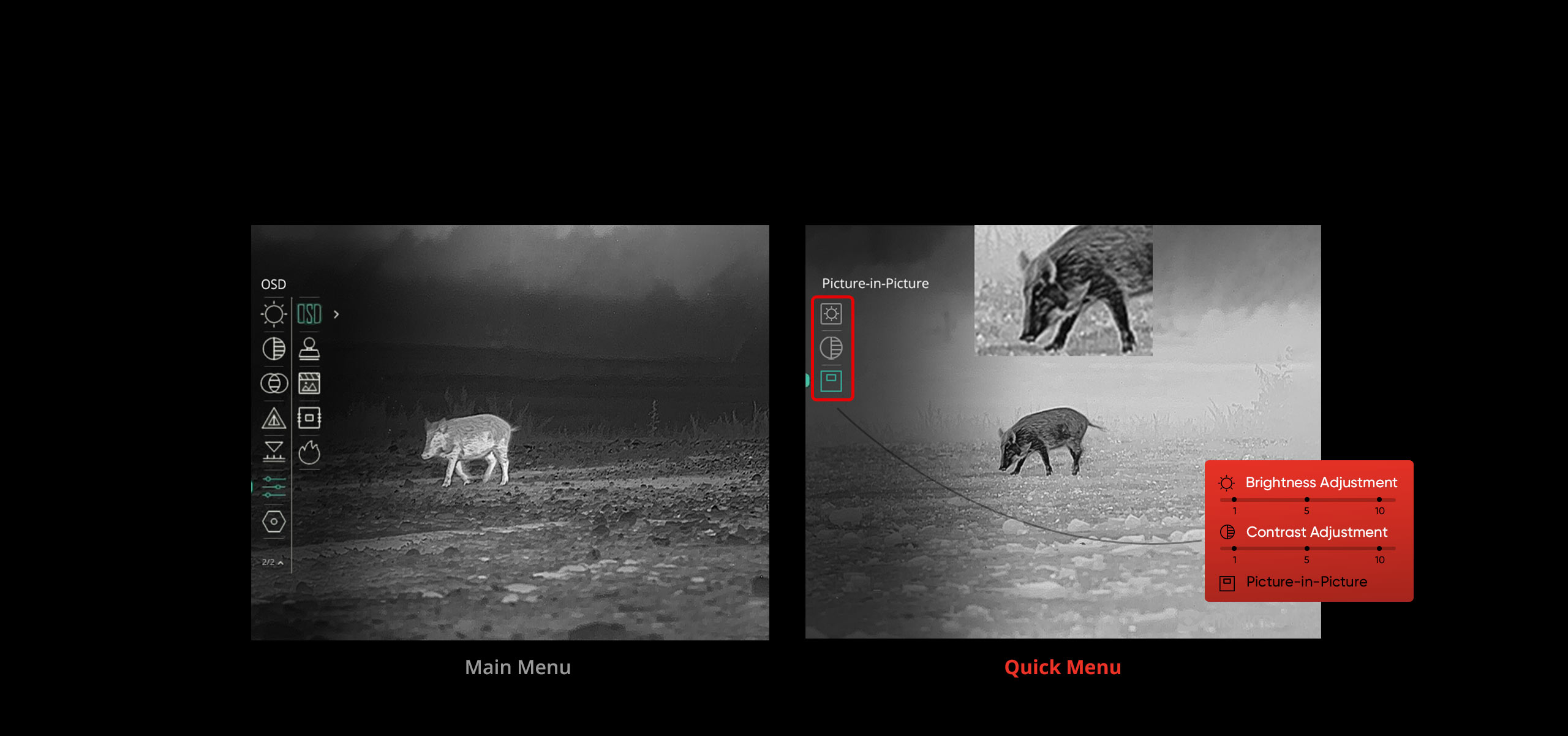

Personalized Settings Available to the Suitable Visual Experience
1. Brand new UI and friendly quick menu help quickly find frequently used functions.
2. DIY brightness and tone adjustment bring playback to the most comfortable level.

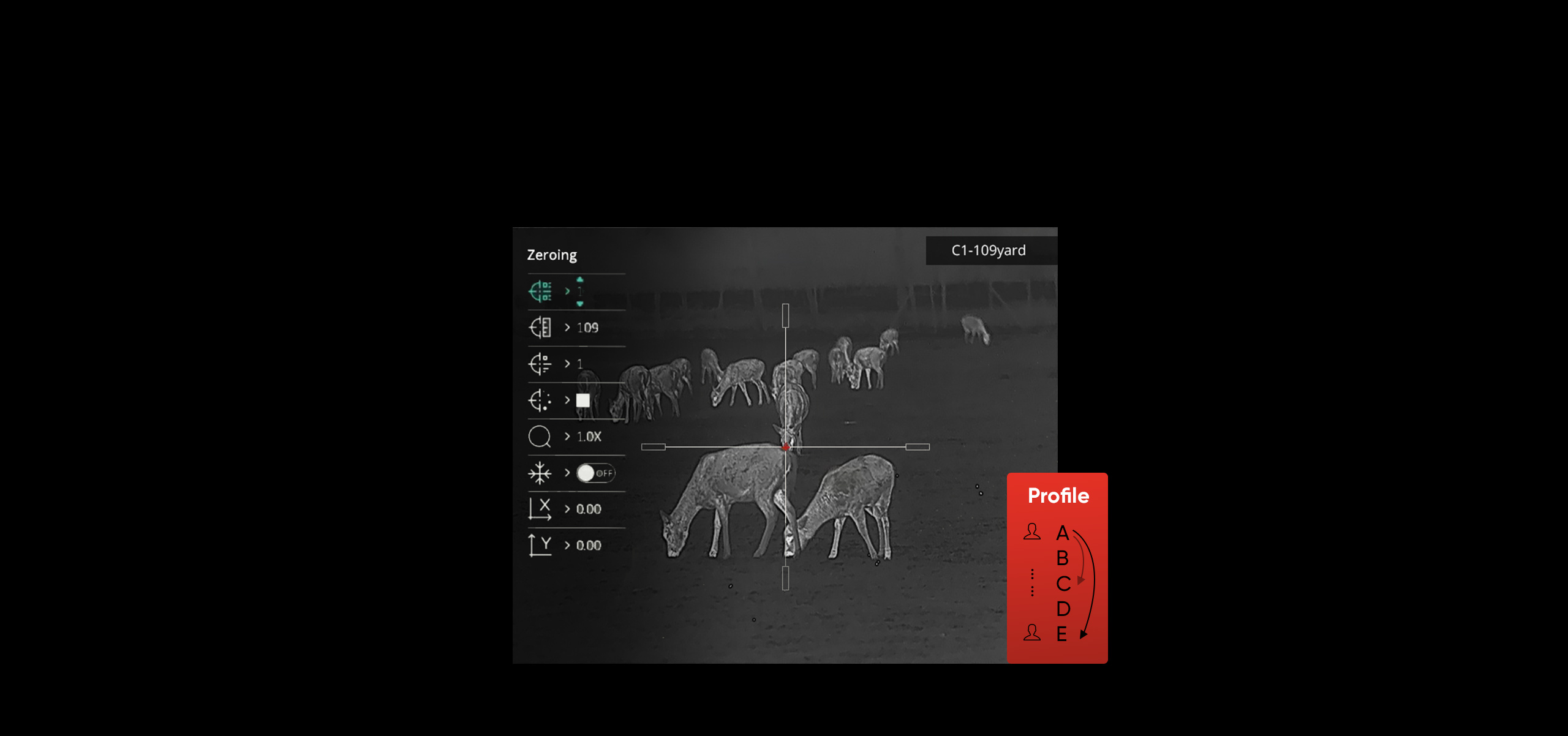

Multiple Reticle Profiles
5 reticle groups with 7 colors and 10 reticle types to choose, multiple profiles can be configured and saved for a greater convenience.
Sharing Your Exciting Moments
HIKMICRO Sight is a comprehensive APP designed for outdoor devices. It’s an all-in-one solution that supports preview, remote control, browse & download, sharing incredible moments and firmware updates.
Specification

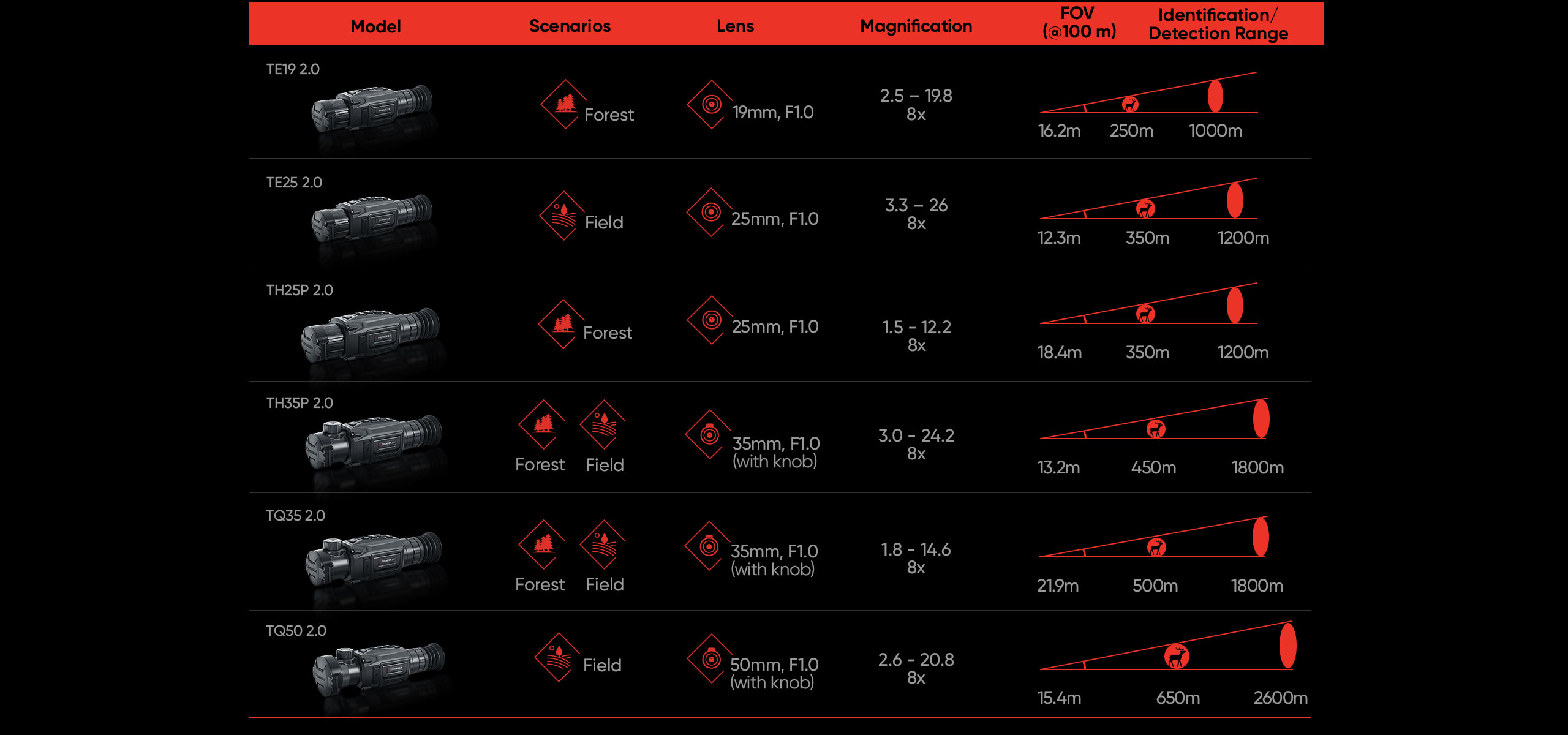

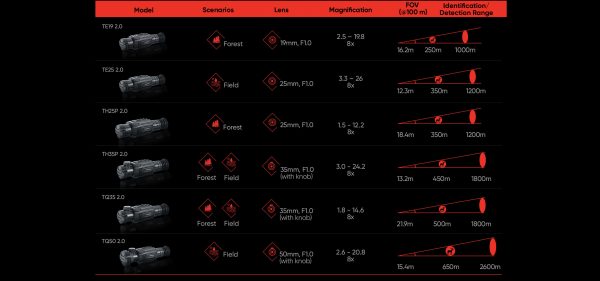

| Product Model | TE19 2.0 | TE25 2.0 | TH25P 2.0 | TH35P 2.0 | TQ35 2.0 | TQ50 2.0 |
|---|---|---|---|---|---|---|
| Thermal Module | ||||||
| Image Sensor | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays |
| Max. Resolution | 256×192 | 256×192 | 384×288 | 384×288 | 640×512 | 640×512 |
| Frame Rate | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm |
| NETD | Less than 35mK (25 °C, F#=1.0) | Less than 35mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) |
| Lens (Focal Length) | 19mm, F1.0 | 25mm, F1.0 | 25mm, F1.0 | 35mm, F1.0 | 35mm, F1.0 | 50mm, F1.0 |
| Detection Range | 1000m | 1200m | 1200m | 1800m | 1800m | 2600m |
| Focus Mode | Focus Ring | Focus Ring | Focus Ring | Focus Knob, Focus Ring | Focus Knob, Focus Ring | Focus Knob, Focus Ring |
| Field of View (H × V) | 9.2° × 6.9° / 16.2m × 12.1m | 7.0° × 5.3° / 12.3m × 9.2m | 10.5° × 7.9° / 18.4m × 13.8m | 7.5° × 5.7° / 13.2m × 9.9m | 12.5° × 10.0° / 21.9m × 17.6m | 8.8° × 7.0° / 15.4m × 12.3m |
| Min. Focusing Distance | 0.5m | 0.5m | 0.5m | 2m | 2m | 10m |
| Magnification | 2.5x -19.8x (8x) | 3.3x -26x (8x) | 2.2x-17.6x (8x) | 3.0x-24.0x (8x) | 1.8x-14.6x (8x) | 2.6x-20.8x (8x) |
| Image Display | ||||||
| Display | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED |
| Brightness Adjustment | Yes | Yes | Yes | Yes | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm |
| Eye Relief | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
| Diopter (Range) | -5D to 5D | -5D to 5D | -5D to 5D | -5D to 5D | -5D to 5D | -5D to 5D |
| Tone Adjustment | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm |
| General | ||||||
| Protection Level | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Weight | 476g without Battery | 494g without Battery | 488g without Battery | 515g without Battery | 515g without Battery | 530g without Battery |
| Dimension | 218.7 mm × 67.1 mm × 68.0 mm | 218.7 mm × 67.1 mm × 68.0 mm | 218.7 mm × 67.1 mm × 68.0 mm | 221.1 mm x 67.4 mm x 68.0 mm | 221.1 mm x 67.4 mm x 68.0 mm | 230.7 mm x 73.4 mm x 68.5 mm |
| Working Temperature | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) |
| System | ||||||
| Record Video | Yes | Yes | Yes | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes | Yes | Yes | Yes |
| Hotspot | Yes | Yes | Yes | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Storage | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16GB) |
| PIP | Yes | Yes | Yes | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes | Yes | Yes | Yes |
| Audio Recording | Yes | Yes | Yes | Yes | Yes | Yes |
| Recoil-activation Recording | Yes | Yes | Yes | Yes | Yes | Yes |
| Max. Recoil | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms |
| Zeroing Profiles | 5 | 5 | 5 | 5 | 5 | 5 |
| Power Supply | ||||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery Pack | Replaceable and Rechargeable Li-ion Battery Pack | Replaceable and Rechargeable Li-ion Battery Pack | Replaceable and Rechargeable Li-ion Battery Pack | Replaceable and Rechargeable Li-ion Battery Pack | Replaceable and Rechargeable Li-ion Battery Pack |
| Battery Operating Time | ≥10.5h (25 °C, with hotspot off) | ≥10.5h (25 °C, with hotspot off) | ≥10.5h (25 °C, with hotspot off) | ≥10.5h (25 °C, with hotspot off) | ≥8.5h (25 °C, with hotspot off) | ≥8.5h (25 °C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply |

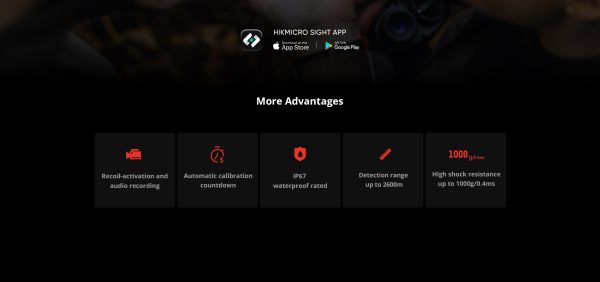

Advantages
- Recoil-activation and audio recording
- Automatic calibration countdown
- IP67 waterproof rated
- Detection range up to 2600m
- High shock resistance up to 1000g/0.4ms
Video
Download
ADDITIONAL INFORMATION
| Model | TE19 2.0, TE25 2.0, TH25P 2.0, TH35P 2.0, TQ35 2.0 |
|---|
