Woodpecker WP632AM-R Portable Electric Tapping Detector
Views: 3707
$0.00
Detection of disbond / damage / moisture in honeycomb sandwich materials
Detection of disbond in composite materials, tiles, clad steel, coatings, etc.
Detection of disbond of joints in composite structures, e.g. helicopter blades
Location of beams / ribs / spar in bonded structures
Detection of boundries between different materials
Detection of dryness / aging / hardening of bonding agents, etc.
Comparison & evaluation of surface hardness (elasticity) of various plates
Detection of the unfilled area within foamed sandwich panels
Description

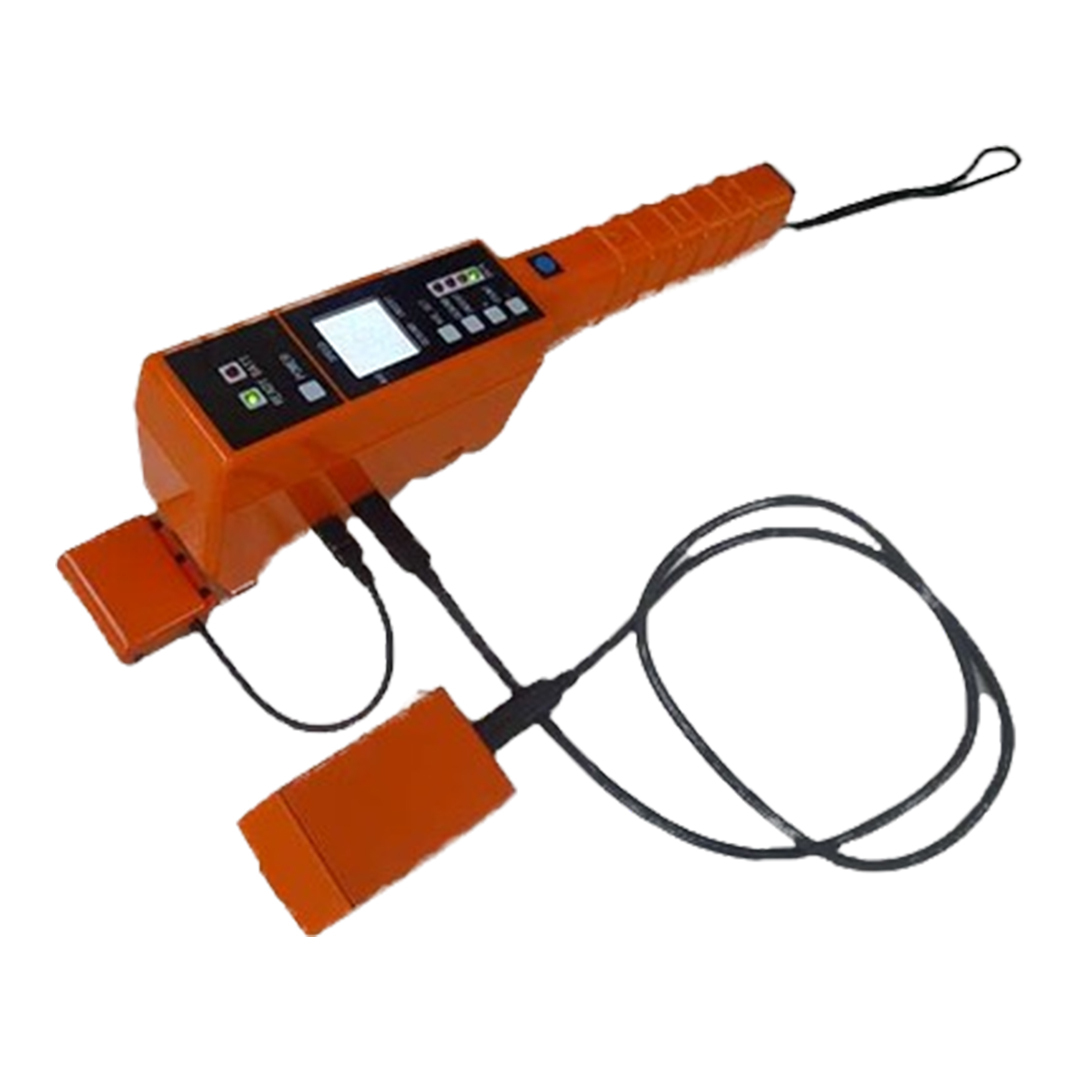

The Woodpecker WP-632AM-R Handpiece, with a range of accessories offers all the advantages of the previous models, but with the option of using a smaller XY Plotter & a remote probe. It also has integrated BBRAM. The WP-632AM-R portable electric tap tester is compact and lightweight, allowing single handed operation and significantly reducing time required for inspection with high accuracy. It utilizes a CPU which comparatively evaluates the output of a force sensor attached to the actuator. The results are indicated with LEDs & numerical values displayed on the LCD screen, clearly showing the set and measured contact times (in milliseconds) and making it easier to setup on the test standard. When used in conjunction with a PC, a color tile map of the area under test is displayed. A record can be saved / printed creating traceability of a scan.
14,211 total views, 6 views today
Key Features
- Automated tap tester with a clear quantitative, objective numeric readout
- Piezo sensor used to capture responses from solenoid driven tapping device
- Clear: go / no go results
- Lightweight & easy to operate
- Operates on wood & foam, rough or smooth surface finishes
- Software allows point measurement to be compared
- PC connectivity with optional XY Plotter
- For skin thicknesses of up to 5mm thick

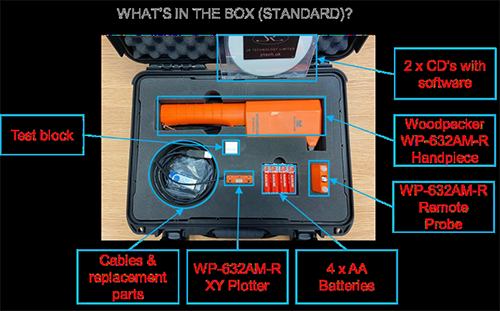

- Includes: Remote probe & function test kit
14,212 total views, 7 views today
Specification
Dimensions (H x W x L): 86 mm x 46 mm x 280 mm (3.4” x 1.8” x 11.0”); Weight: 350 g (0.8 lb)
(excluding batteries); Power Source: Four AA batteries; Power Consumption: 2.4 W; Battery Life:
Approx. 4 hours (with continuous usage)
